Danfoss Check Valve, Nrv 6S 020B1010 | Line Components
Roll over image to zoom in
$164.99$299.98 (-45%)
Price Match*
Price Match*
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.

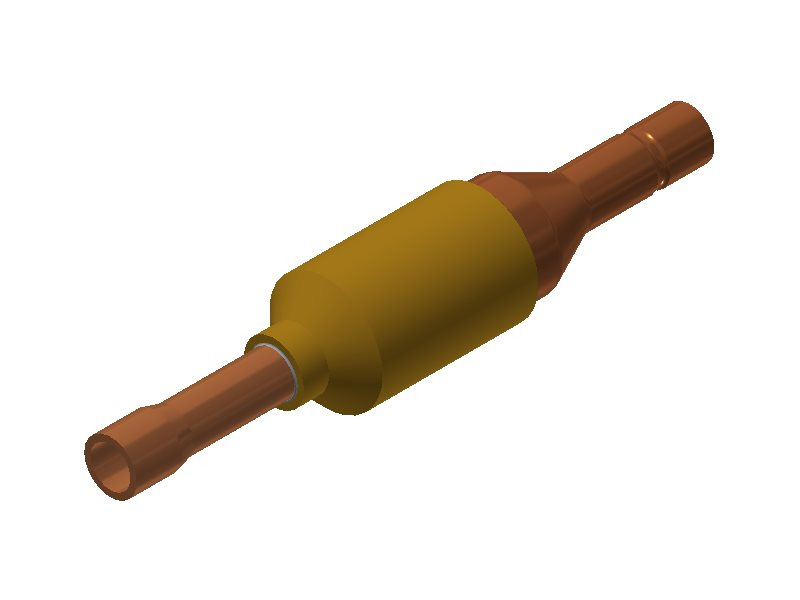

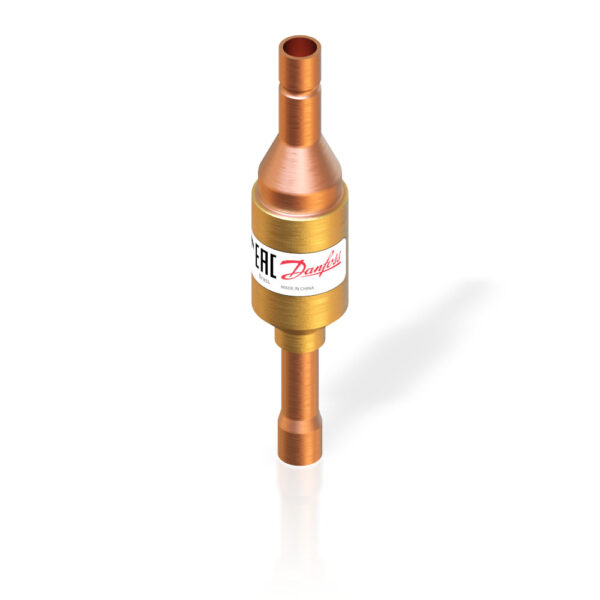

Danfoss Check Valve, Nrv 6S: Commercial Grade Reliability
You are viewing the Danfoss Check Valve, Nrv 6S (020B1010). This is a genuine, high-specification Line Components component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 020B1010
| General Information | |
|---|---|
| Model Number | 020B1010 |
| Product Group | Check Valves |
| Type | NRV 6s |
| Additional Info | |
| Family | NRV v2 |
| Connections | |
| Inlet Connection Size | 1/4 in |
| Inlet Type | Solder, ODF |
| Outlet Connection Size | 1/4 in |
| Outlet Type | Solder, ODF |
| Kv Values | |
| Kv Value | 0.660 m³/h |
| Logistical Information | |
| Commodity Code | 84813099 |
| Country Of Origin | CHN |
| EAN | 5702428291217 |
| Gross Weight | 0.064 kg |
| Material | |
| Body Material | Brass |
| Connection Material | Copper |
| Measurements | |
| Net Weight | 0.052 kg |
| Weight | 0.05 kg |
| Pressure | |
| Max Operating Pressure | 49.0 Bar |
| Min OPD | 0.040 Bar |
| Min Pressure Drop | 0.070 Bar |
| Refrigerant | |
| Refrigerant | R22/R407C, R32, R134a, R290, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R513A, R515B, R516A, R600, R600a, R1233zd(E), R1234yf, R1234ze(E), R1270 |
| Standards | |
| Approval | C UL US LISTED, EAC, LLC CDC EURO-TYSK |
| Temperature | |
| Max Temperature | 155 °C |
| Min Temperature | -50 °C |
| Temperature Range | -50-155 °C |
| Valves | |
| CV Value | 0.760 gal/min |
| Direction | Straightway |
| Flow Direction | Single-flow |
| Flow Direction Indicator | On product label |
💡 Pro Tip: Ensure this 020B1010 matches your system requirements.
Need more options? Explore our complete range of professional Components Supplies available for NZ-wide delivery.
Additional information
| Weight | 0.064 kg |
|---|---|
| MPN | |
| Brand | |
| Copper Pipe (mm) | |
| Refrigerant |
