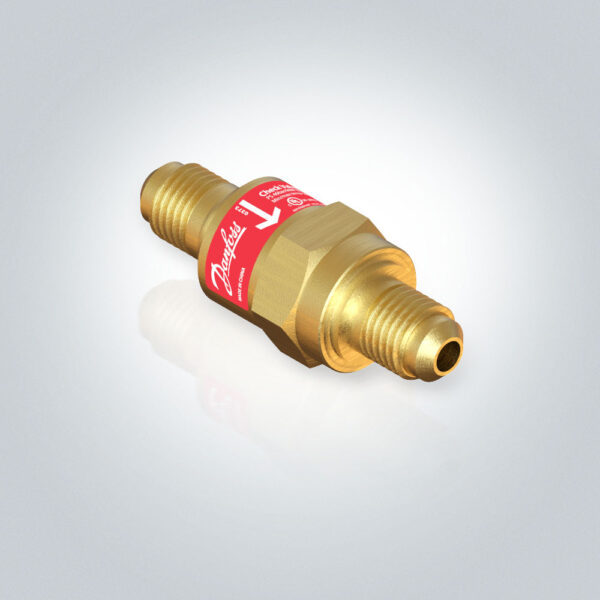

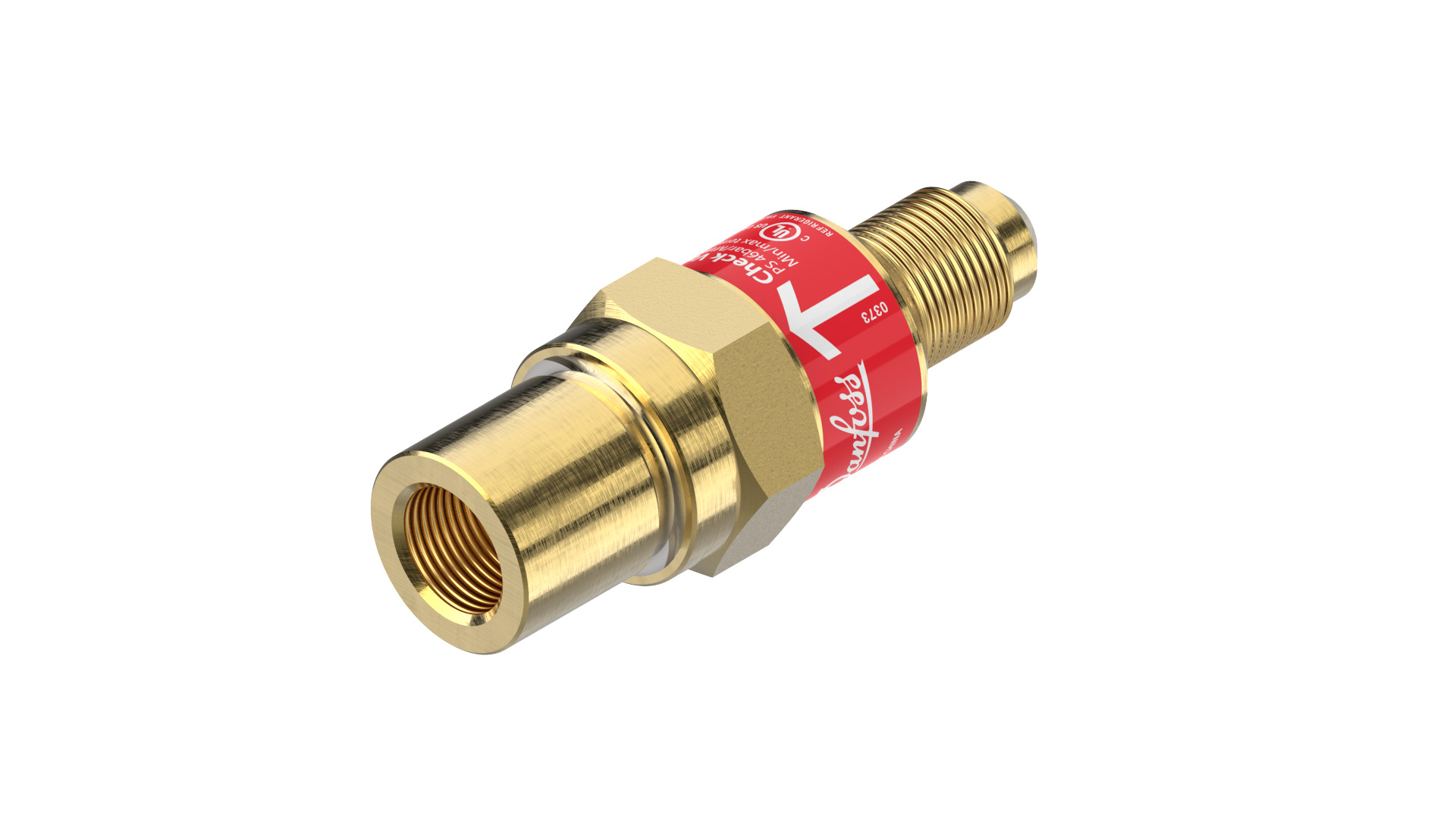

Danfoss Check Valve, Nrv 6 020-1040 | Line Components
Roll over image to zoom in
$164.99$299.98 (-45%)
Price Match*
Price Match*
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Danfoss Check Valve, Nrv 6: Commercial Grade Reliability
You are viewing the Danfoss Check Valve, Nrv 6 (020-1040). This is a genuine, high-specification Line Components component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 020-1040
| General Information | |
|---|---|
| Model Number | 020-1040 |
| Product Group | Check Valves |
| Type | NRV 6 |
| Additional Info | |
| Family | NRV |
| Connections | |
| Connection Size | 1/4 in, 6 mm |
| Connection Type | Flare |
| Inlet Connection Size | 1/4 in, 6 mm |
| Inlet Type | Flare |
| Outlet Connection Size | 1/4 in, 6 mm |
| Outlet Type | Flare |
| Kv Values | |
| Kv Value | 0.560 m³/h |
| Logistical Information | |
| Commodity Code | 84813099 |
| Country Of Origin | CHN |
| EAN | 5702422006510 |
| Gross Weight | 0.07 kg |
| Material | |
| Body Material | Brass |
| Connection Material | Brass |
| Measurements | |
| Net Weight | 0.05 kg |
| Pressure | |
| Max Operating Pressure | 46.0 Bar |
| Min Pressure Drop | 0.070 Bar |
| Refrigerant | |
| Refrigerant | R22/R407C, R134a, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
| Standards | |
| Approval | C UL US LISTED, EAC |
| Temperature | |
| Max Temperature | 140 °C |
| Min Temperature | -50 °C |
| Temperature Range | -50-140 °C |
| Valves | |
| CV Value | 0.650 gal/min |
| Direction | Straightway |
| Flow Direction | Single-flow |
| Flow Direction Indicator | On product label |
