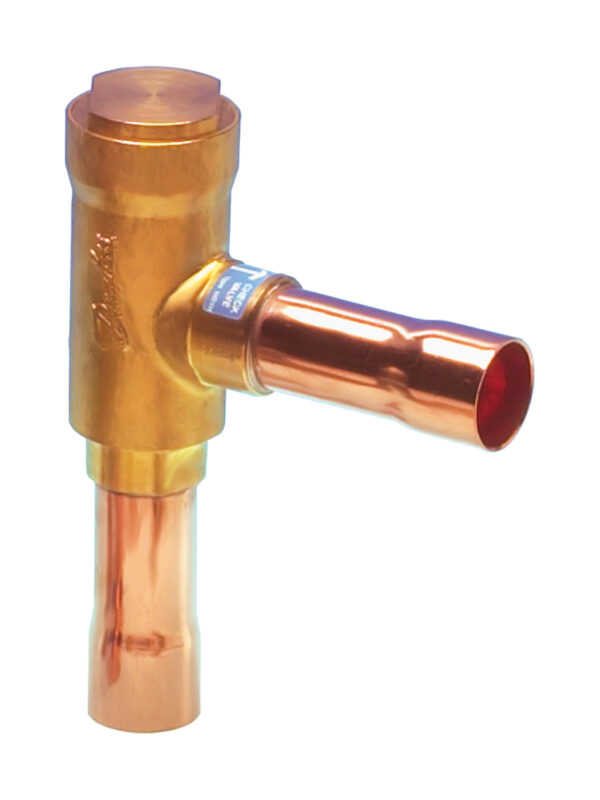

Danfoss Check Valve, Nrv 22S 020-1020 | Line Components

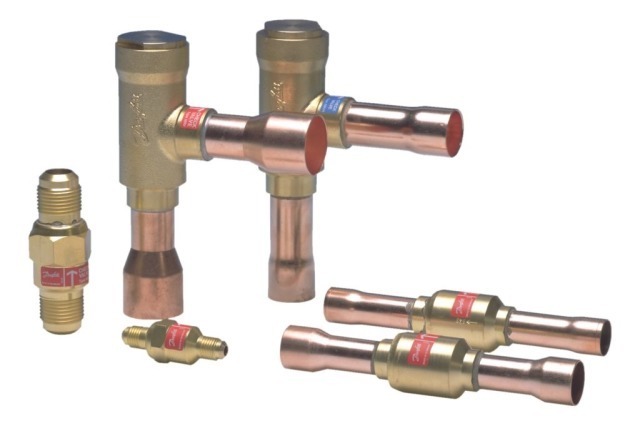

Image is for illustration only. Please go by the model number (SKU: 020-1020).
-45%Roll over image to zoom in
$736.99$1,339.98 (-45%)
Price Match*
Price Match*
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Danfoss Check Valve, Nrv 22S: Commercial Grade Reliability
You are viewing the Danfoss Check Valve, Nrv 22S (020-1020). This is a genuine, high-specification Line Components component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 020-1020
| General Information | |
|---|---|
| Model Number | 020-1020 |
| Product Group | Check Valves |
| Type | NRV 22s |
| Additional Info | |
| Family | NRV |
| Connections | |
| Connection Size | 7/8 in, 22 mm |
| Connection Type | Solder, ODF |
| Inlet Connection Size | 7/8 in, 22.00 mm |
| Inlet Type | Solder, ODF |
| Outlet Connection Size | 7/8 in, 22.00 mm |
| Outlet Type | Solder, ODF |
| Kv Values | |
| Kv Value | 8.500 m³/h |
| Logistical Information | |
| Commodity Code | 84813099 |
| Country Of Origin | CHN |
| EAN | 5702422028925 |
| Gross Weight | 0.562 kg |
| Material | |
| Body Material | Brass |
| Connection Material | Copper |
| Measurements | |
| Outer Diameter | 22.00 mm |
| Weight | 0.52 kg |
| Pressure | |
| Max Operating Pressure | 46.0 Bar |
| Min Pressure Drop | 0.040 Bar |
| Refrigerant | |
| Refrigerant | R22/R407C, R134a, R290, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R513A, R515B, R516A, R600, R600a, R1233zd(E), R1234yf, R1234ze(E), R1270 |
| Standards | |
| Approval | C UL US LISTED, EAC |
| Temperature | |
| Temperature Range | -50-140 °C |
| Valves | |
| CV Value | 9.830 gal/min |
| Design | Piston |

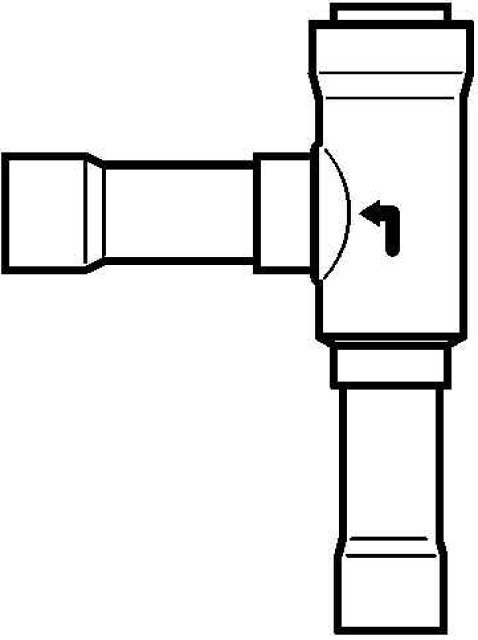

| Direction | Angleway |
| Flow | Single-flow |
| Flow Direction | Single-flow |
| Flow Direction Indicator | Embossed 1-way arrow |
💡 Pro Tip: Ensure this 020-1020 matches your system requirements.
