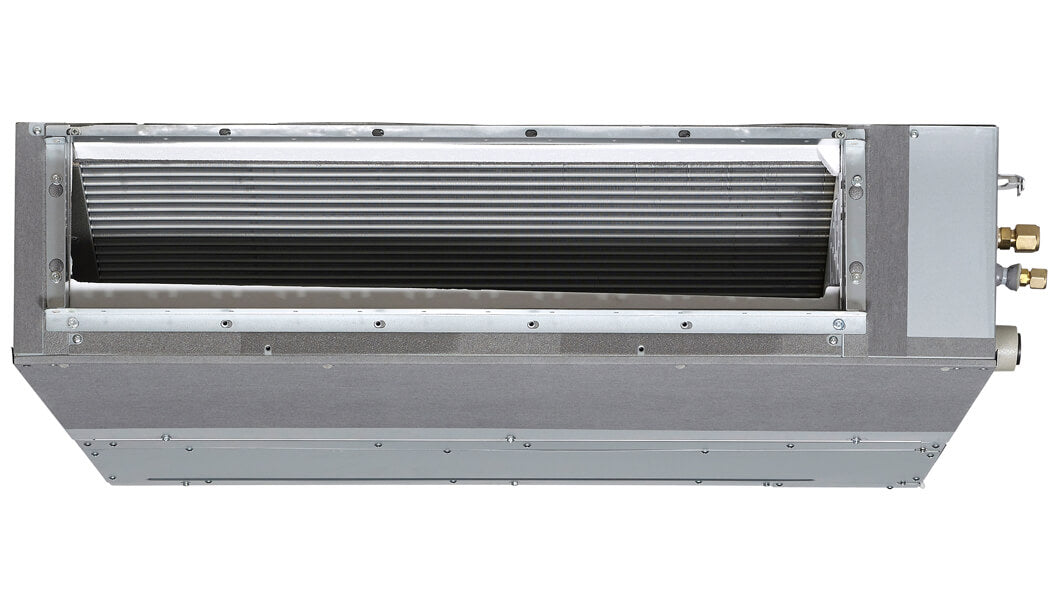

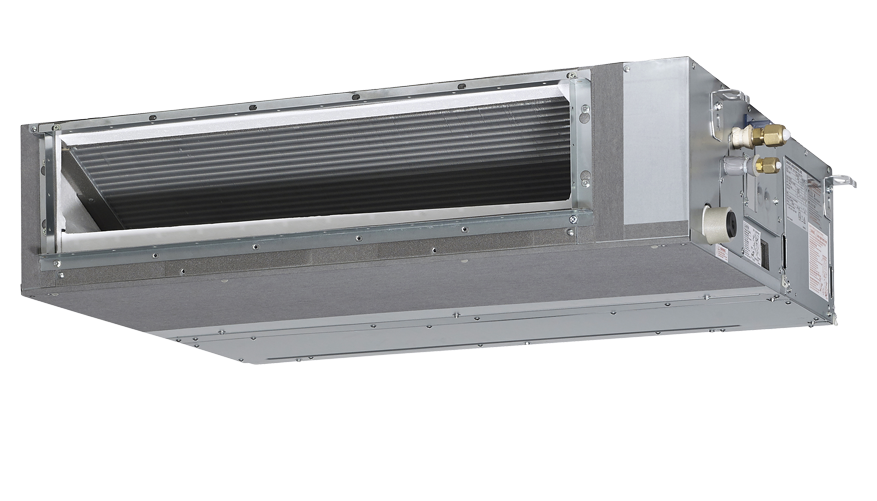

Daikin Slim Duct Complete System – FBA

Designed specifically to suit installations where ceiling space is at a premium, our Slim-Line Ducted series has unparalleled flexibility and freedom of design. Ideal for narrow ceiling spaces or under the floor, this ducted system meets the challenges of modern commercial and medium density apartment development.

Key Features & Technology

It’s the unique features of Daikin products that makes us the world leader.

Industry leading low profile design of 245mm height ensures clearance in most narrow roof spaces.

DC fan with an static pressure of 150Pa and up to 75m (100 Class) of available pipe run to suit your design layout.

Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping.

Allows the fan speed to adjust automatically to suit your duct design for optimum airflow distribution.

Option of a rear or bottom suction return allows for greater installation flexibility

DC Condensate pump is equipped as standard with a 850mm lift.

Controller Features

Clear large, easy to read text with a intuitive interface.

Program on and off times to suit your lifestyle.

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

Temporarily increase air conditioning power to rapidly reach your desired set point temperature.

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).

Quick and easy means to set up the operations of your unit.

Automatic notification when filter cleaning may be required.

Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)

Quick and easy means to set up the operations of your unit.

Clear large, easy to read text with a intuitive interface.

Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)

Program on and off times, including when to open/close zones and the temperature sensor to use.

Allows the unit to automatically switch between heating and cooling for year round comfort.

Automatic notification when filter cleaning may be required.

Available in two attractive colours, the new remote controller adds style and sophistication to nay indoor space. Measuring just 85 x 85 mm, the remote controller is extremely compact and will become a fluid part of any background.

Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.

The new remote controller combines functionality and simplicity. The minimalistic touch button control enlarges the display and makes the remote controller both easy and enjoyable to use.

Simplifies the advanced settings such as field settings and set point range.

Featuring premium aesthetic design with intuitive touch screen interfaces for ease of use. Available in 3 models: Blueface, Think and Lite.

The controller automatically selects the appropriate fan speed (L/M/H) depending on number of zones opened and the demand, resulting in reduced running costs.

Up to 10 zones can be controlled via a single VAF system and coupled with a simple control architecture this makes scalability and installation convenient. *A BRC1E63 (Nav Ease) will also be required for backup and servicing

The 4-step linear dampers precisely regulate airflow into each zone ensuring optimal temperatures for all occupants in the household at anytime.

SLIM-LINE DUCTED Technology

1 5mm Heat Exchanger Pipe

By adopting the use of 5mm heat exchanger pipe, Daikin’s slim-line ducted was able to achieve an industry leading low profile height of 245mm.

2 Built-in Drain Pump

Condensate drain pump with a lift of up to 850mm is built into the unit without sacrifice to the unit’s slim form factor.

3 Automatic Airflow Adjustment

Coupled with DC fan motor and smart control logic, fan speed can be automatically adjusted to suit your duct design for simplified commissioning.

4 DC Fan Motor

By utilising high power permanent magnets instead of induced magnetism of conventional AC motors, Daikin’s DC motor can deliver significantly higher motor efficiency.
