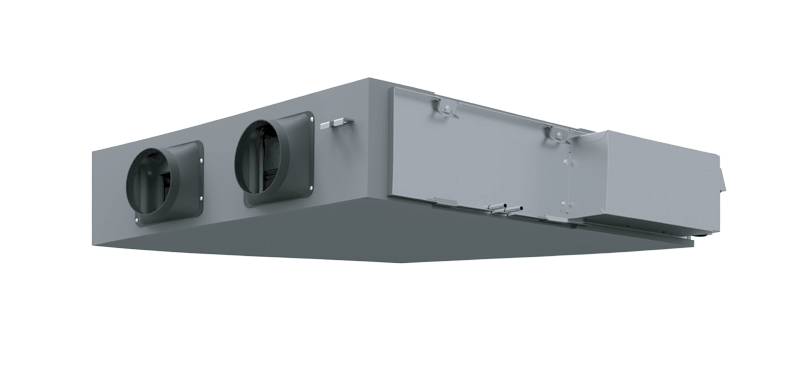

Daikin SENSIBLE-HEAT-RECLAIM-VENTILATOR Heat Recovery Ventilator

Our NEW VAMS-V3A Sensible unit is compact, energy efficient and is best fit for apartments and other residential applications including commercial projects for Retirement Villages and Aged Care facilities.

Key Features & Technology

Reduce the Unit Height Size from 278mm (HVE) to 220 mm (Casing Size with insulation).

Adopted single inlet centrifugal fan integrated with DC motor to achieve AUS J5.4 Fan efficiency and low height casing design.

Adopted aluminum sensible heat exchanger able to suit customer requirement to avoid cross contaminants from RA(toilet) to OA and maintain NCCJ5.3 sensible heat efficiency min 60% and reduce unit size.

Automatically switches the ventilation mode (Sensible Heat Exchange Mode/Bypass Mode) according to the operating status of the air conditioner. When the cooling operation is required in winter, use of heat recovery ventilation is not efficient because the outdoor air temperature is normally lower than that of the indoor. Thus, the proper use of ventilation mode enhances the heating / cooling efficiency.

Optional Accessories Stylish Remote Controller (Zigbee sensor – CO2,temperature, window/door, humidity) Optional Stylish Remote Controller BRC1H63W / BRC1H63K. Through Zigbee communication, the sensor (temperature, window/door, CO2 concentration & humidity) able to connect to R/C

Stylish Remote Controller (Zigbee sensor – CO2,temperature, window/door, humidity) Optional Stylish Remote Controller BRC1H63W / BRC1H63K. Through Zigbee communication, the sensor (temperature, window/door, CO2 concentration & humidity) able to connect to R/C

SENSIBLE HEAT RECLAIM VENTILATOR (VAMS) – MECHANISM

1 Indoor Return Air (RA)

Stale air contains moisture, CO2, odour and other pollutants. This is especially true for air that comes from damp areas such as the kitchen and bathroom. It is extracted from your home via the Indoor Return Air ducts. The stale air, now known as Return Air (RA),then passes through the VAM unit.

2 Outdoor Air (OA) Supply

At the same time, fresh Outdoor Air (OA) is brought into your home through the Outdoor Air Supply. The outdoor air is filtered as it enters the VAM unit, thus removing dirt and dust.

3 Exhaust Air (EA) Discharge

As the Return Air (RA) travels through the VAM unit, heat energy is recovered by the sensible heat exchanger. The recovered heat energy pre-heats/cools the Outdoor Air (OA) that passes in the opposite direction and enters your home. This helps to conserve energy and reduce the load on the air conditioning system. The Return Air (RA) is then exhausted outside through the Exhaust Air (EA) Discharge.

4 Indoor Supply Air (SA)

Clean and fresh outdoor air, known as Supply Air (SA), is finally introduced into your home through the Indoor Supply Air ducts.
