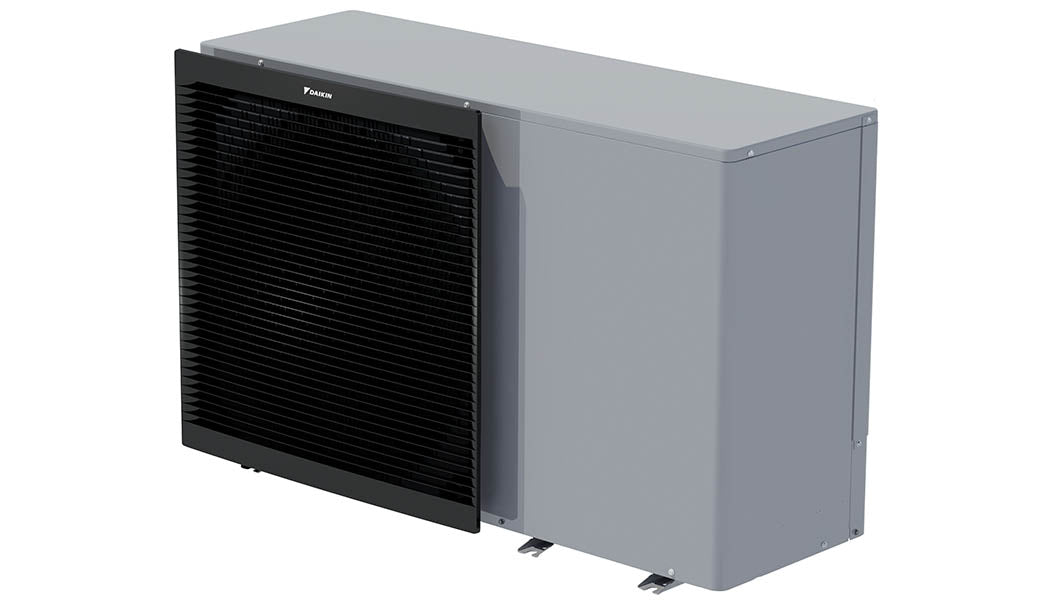

Daikin HYDRONIC-COOLING-HEATING Outdoor Heat Pump Unit (Outdoor Unit Only)

Ideal for new building applications, suitable for large renovations and indoor spaces that have limited room. The Altherma 3 M is an air-to-water monobloc heat pump system that provides heating and cooling for low energy homes and ensures superior comfort. Altherma 3 M Monobloc Flyer here

Key Features & Technology

It’s the unique features of Daikin products that makes us the world leader.

Only requires 1kW of electricity to pump 3-5kW of heat into your home, much more efficient compared to gas heating.

Altherma works without the need for oil, flammable gas or other hazardous substances thus reducing the risks that these fuels may create.

In the event of insufficient heating capacity, Altherma is equipped with a back up heater to cover the short fall.

In new homes, the underfloor piping can be installed during the construction phase and for existing homes, the piping can be connected to radiators installed around the house.

Altherma’s design can be extended to provide domestic hot water over and above your comfort requirements by incorporating a domestic hot water tank.

Ideal for small spaces. The monobloc is the ideal solution for places that have limitations on space. No additional indoor unit is required, and the monobloc can fit right under a window to save outdoor space.

The Daikin Altherma 3 M attains its power from within by combining all the hydraulic components into one unit.

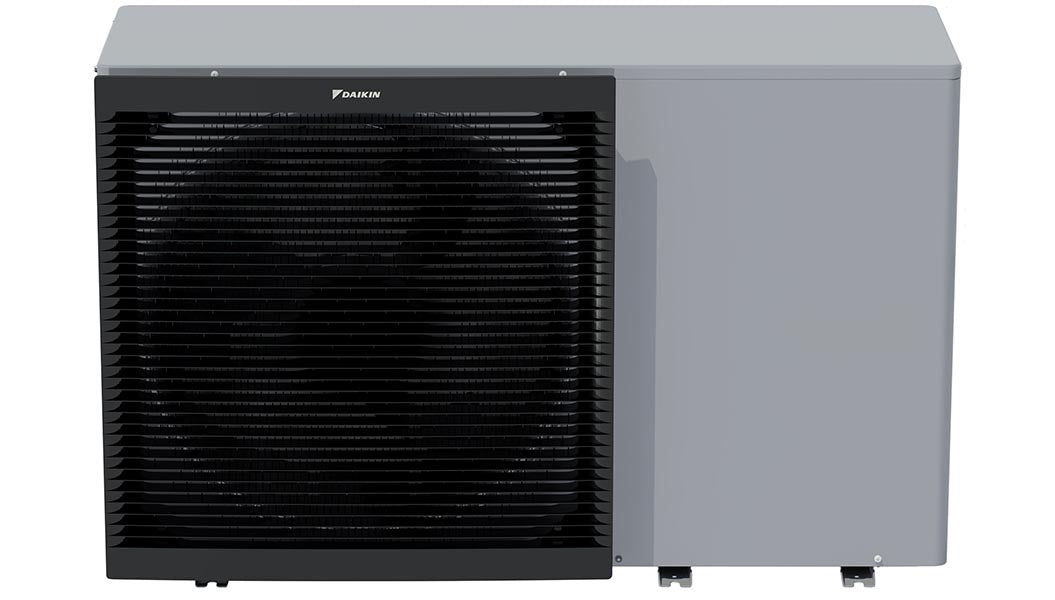

A black horizontal front grille hides the single fan, reducing the perception of sound produced by the unit. The light grey casing reflects the installation space to help the unit blend into any environment.

A single fan for high-capacity units. Daikin engineers replaced the double fan with one larger fan and optimised its shape to lower the operational sound and improve air circulation.

Controller Features

After logging in, you’ll be able to configure the unit with the new controller in less than 10 steps. You can even check if the unit is ready to use by running test cycles.

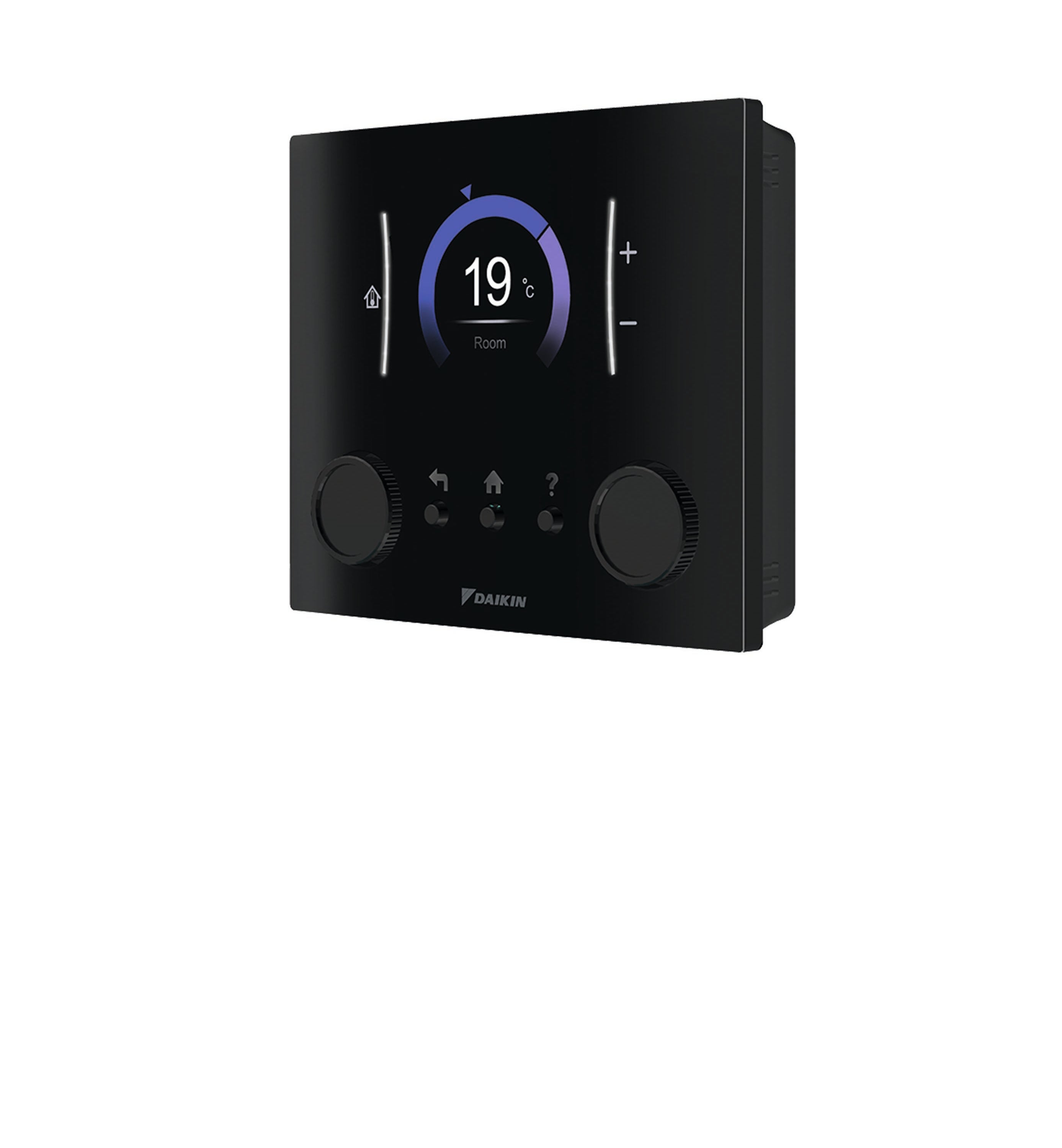

The new interface features a few buttons and 2 navigational knobs to help you quickly set the room temperature and control units.

The interface features an intuitive design. The high contrasted colour screen delivers stunning and practical visuals for both installers and service engineers.

WLAN cartridge connection

Small dimensions for a discreet unit: 136 x 160 x 37 mm (HxWxD).

Basic functions focusing on space heating and domestic hot water (ON/OFF, temperature set point)

Symbol driven end-user interface with intuitive touch button control

Sleek and elegant design, available in 3 colours to match any interior design

Compact, only 85x85mm, easy integration in standard electrical installation boxes

ALTHERMA 3 M MONOBLOC – new range Technology

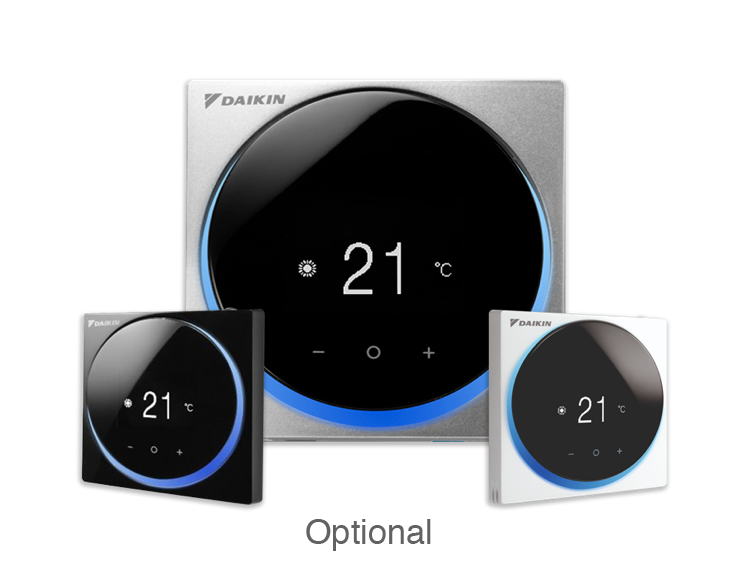

1 Madoka, a user-friendly wired room thermostat (BRC1HHDAW/S/K)

Sleek and elegant design. Intuitive touch button control. Three colours to match any interior (white, black and silver-grey). Compact unit measuring only 85 x 85 mm.

2 Heating and cooling emitters

As a mid-temperature heat pump, the Daikin Altherma 3 M works perfectly with various emitters, including fan coils, underfloor heating and heat pump convectors.

3 Domestic hot water production

The monobloc combines with stainless steel third party tank HSSE3151CW that provides domestic hot water quickly.

4 Man-Machine Interface (MMI)

Inspired by the award-winning design of the Daikin Altherma 3 indoor units, Daikin also upgraded this controller to deliver an even more user-friendly interface.
