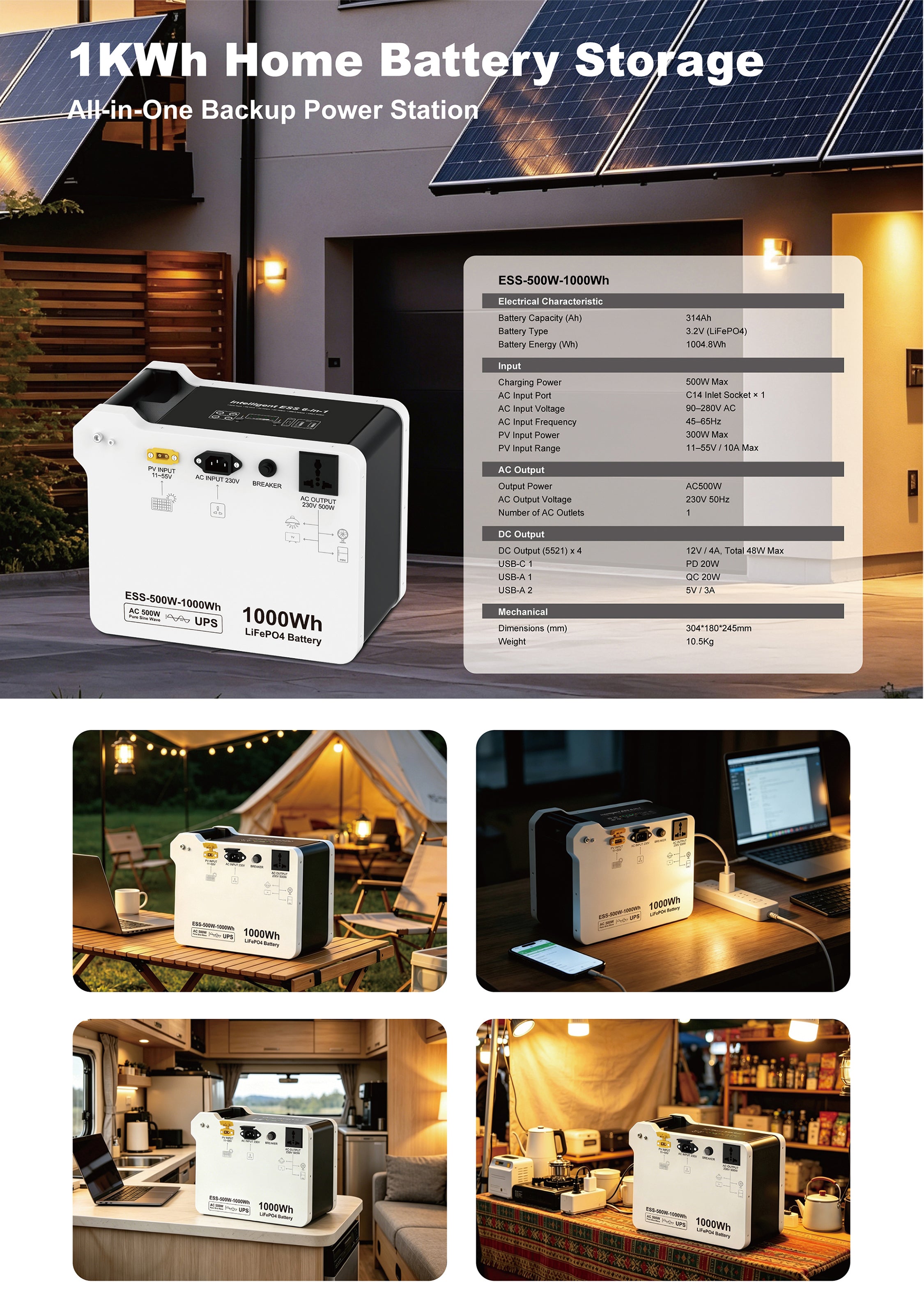

All-in-one 1kWh LiFePO4 Home Battery Storage Power Station

All-in-one 1kWh LiFePO4 Home is a heavy-duty deep cycle battery built for solar storage, RV, marine and off-grid use across New Zealand, offering 1kWh of storage. Designed for thousands of charge cycles, it delivers dependable power day after day.

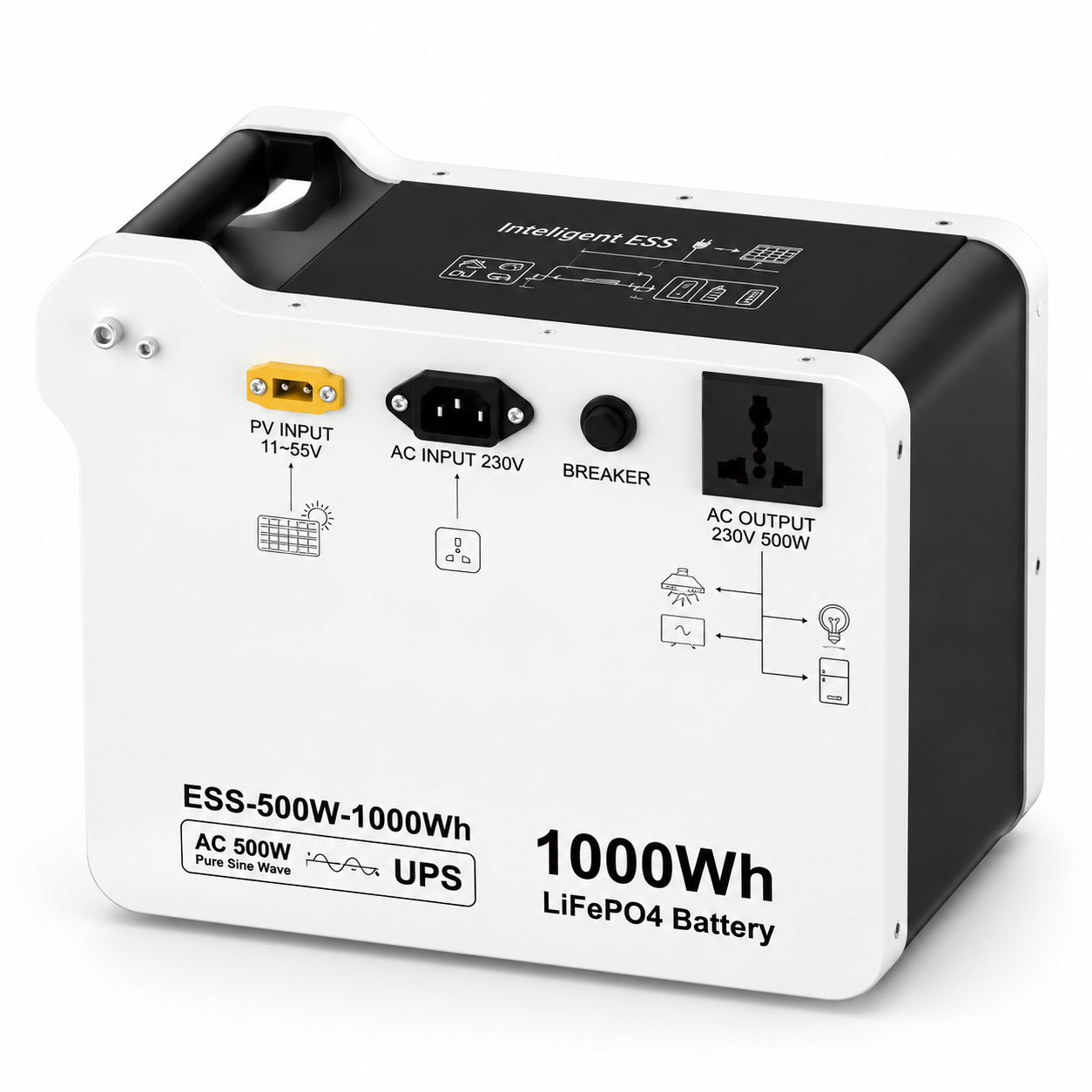

The ESS-500W-1000 is an all-in-one 1kWh LiFePO4 battery storage and backup power system designed for home backup, indoor emergency power and mobile power needs in dry, well-ventilated environments. It combines mains charging, solar charging, AC output, DC output and USB fast charging in one compact unit.

Key features • 1004.8Wh LiFePO4 battery energy (314Ah single-cell specification) • 500W pure sine wave AC output, 230V 50Hz • Built-in battery management system (BMS) and bidirectional inverter technology • UPS function with mains bypass and inverter output modes • MPPT solar charging with tracking efficiency up to 99.9% • 300W maximum solar input • Wide 11-55V DC solar input range, 10A maximum • 500W maximum AC charging power • 4 × DC5521 outputs: 12V/4A, 48W total maximum • USB-C PD 20W, USB-A QC 20W and USB-A 5V/3A outputs • Short-circuit, over-voltage, under-voltage, overload and over-temperature protection • Energy-saving mode helps reduce no-load consumption

Suitable for lighting, televisions, fans, small refrigerators and other compatible loads within the 500W output limit.

Specifications Model: ESS-500W-1000Wh Battery chemistry: LiFePO4 Battery energy: 1004.8Wh AC output: 500W, 230V 50Hz AC outlets: 1 AC input: 90-280V AC, 45-65Hz PV input: 11-55V DC, 10A maximum, 300W maximum Dimensions: 304 × 180 × 245mm Weight: 12kg Recommended operating temperature: 0-40°C

Solar connection Connect compatible solar panels via MC4 connectors to the supplied solar charging adapter cable, then connect the female XT60 connector to the PV IN socket. The solar panel open-circuit voltage must not exceed 55V DC.

Important: Use the unit only in a dry, well-ventilated indoor or sheltered environment. Do not expose it to rain, moisture, oil, excessive dust, flammable materials or explosive atmospheres. Leave at least 30cm clearance around the device, especially near the cooling fan. If the system remains unused for an extended period, recharge it every three months. Always follow the supplied manual and local electrical requirements.

Key Features

• ✓ Package contents • ESS all-in-one energy storage system ×1 • Solar charging adapter cable ×1 • AC power cable ×1 • LED bulbs ×2 • User manual ×1
• ✓ 3 Years New Zealand Local Warranty

Order the All-in-one 1kWh LiFePO4 Home Battery Storage Power Station online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar batteries and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.

Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
