9-Layer Rack
Roll over image to zoom in
$818.90
Price Match*
Price Match*
9-Layer Rack. 40.96kWh storage. 10-Year Manufacturer Warranty. NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
9-Layer Rack: Genuine Trade Supply
You are viewing the 9-Layer Rack (SKU: 3U-LRack). This is a 100 percent genuine Lithium LiFePO4 Batteries product from our Solar Batteries range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: 3U-LRack
9-Layer Rack is a heavy-duty deep cycle battery built for solar storage, RV, marine and off-grid use across New Zealand, offering 40.96kWh of storage. Designed for thousands of charge cycles, it delivers dependable power day after day. Backed by Deye, a proven name in solar technology, and supplied with genuine NZ warranty support.

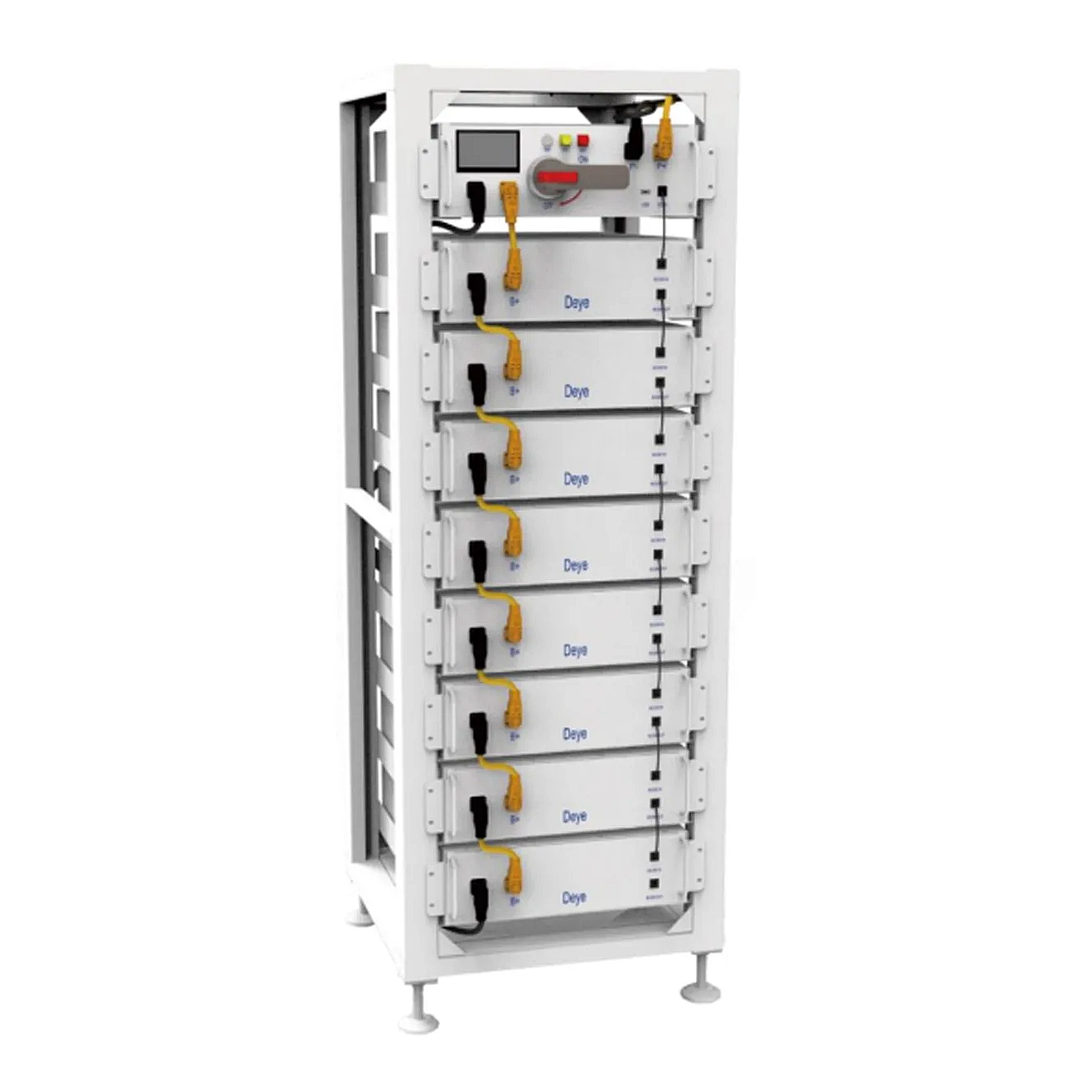

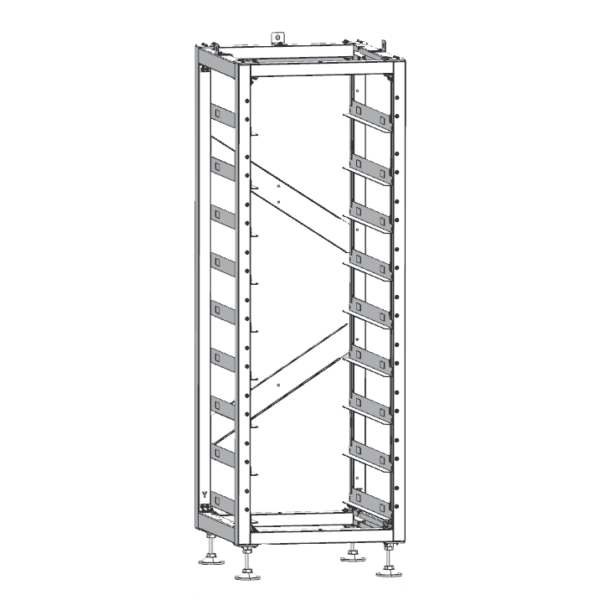

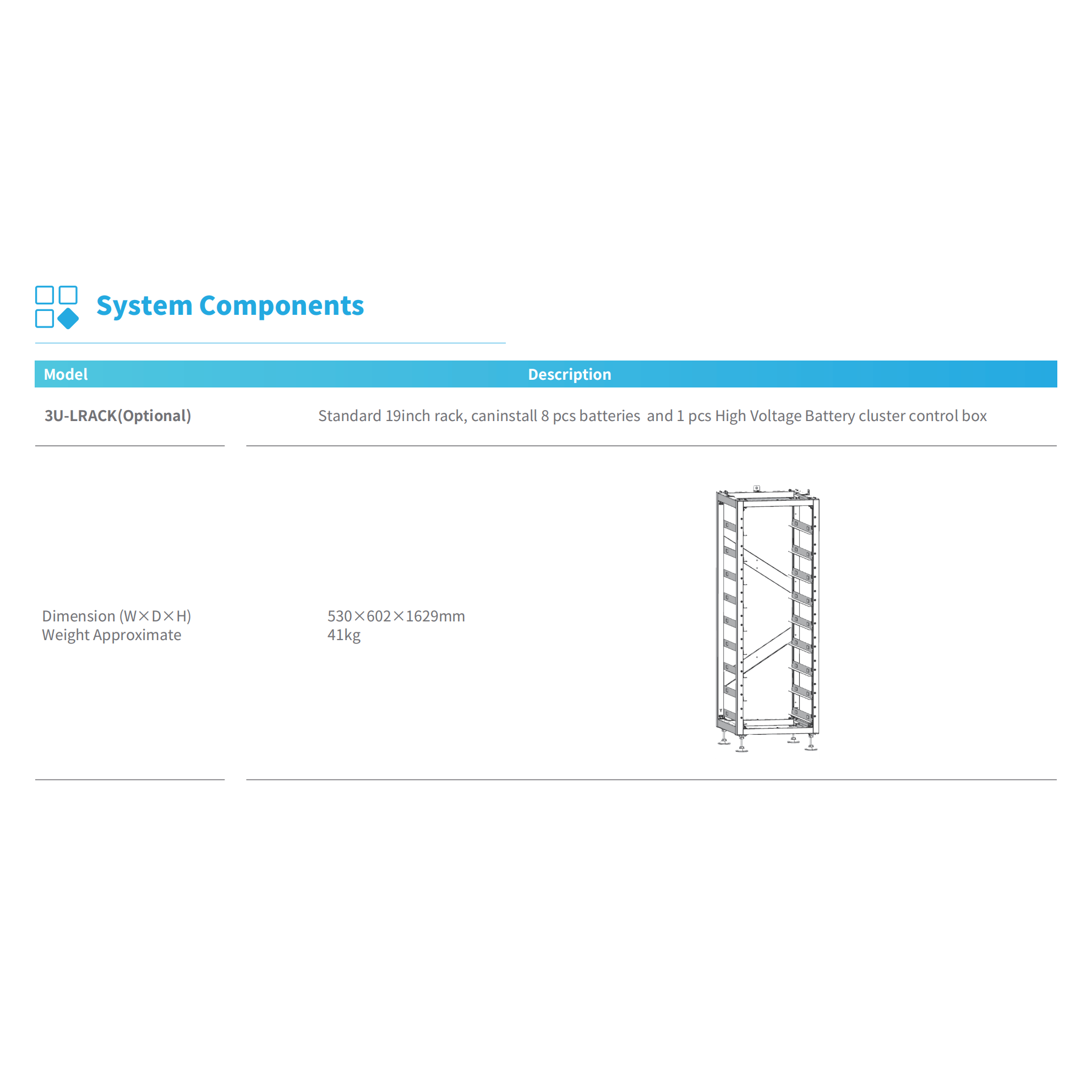

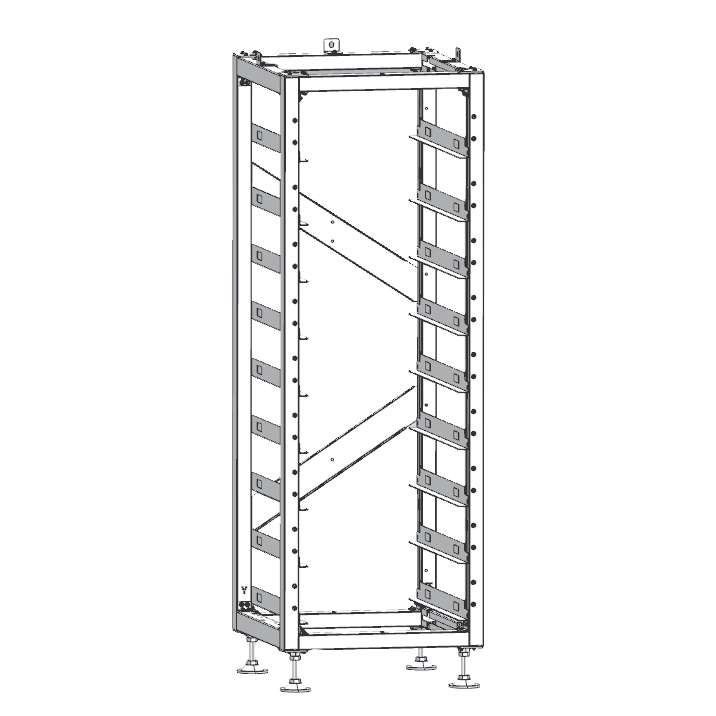

The 9-Layer Rack provides a compact enclosure for modular high-voltage LiFePO4 battery systems in residential, commercial and industrial energy-storage applications. Its standard 19-inch format supports structured module installation, dependable protection and convenient system expansion.
Key Features
- ✓ Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system
- ✓ Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation
- ✓ Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations
- ✓ Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations
- ✓ Environmentally friendly: Completely free of toxic substances and built from recyclable materials
- ✓ Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system.
- ✓ Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations.

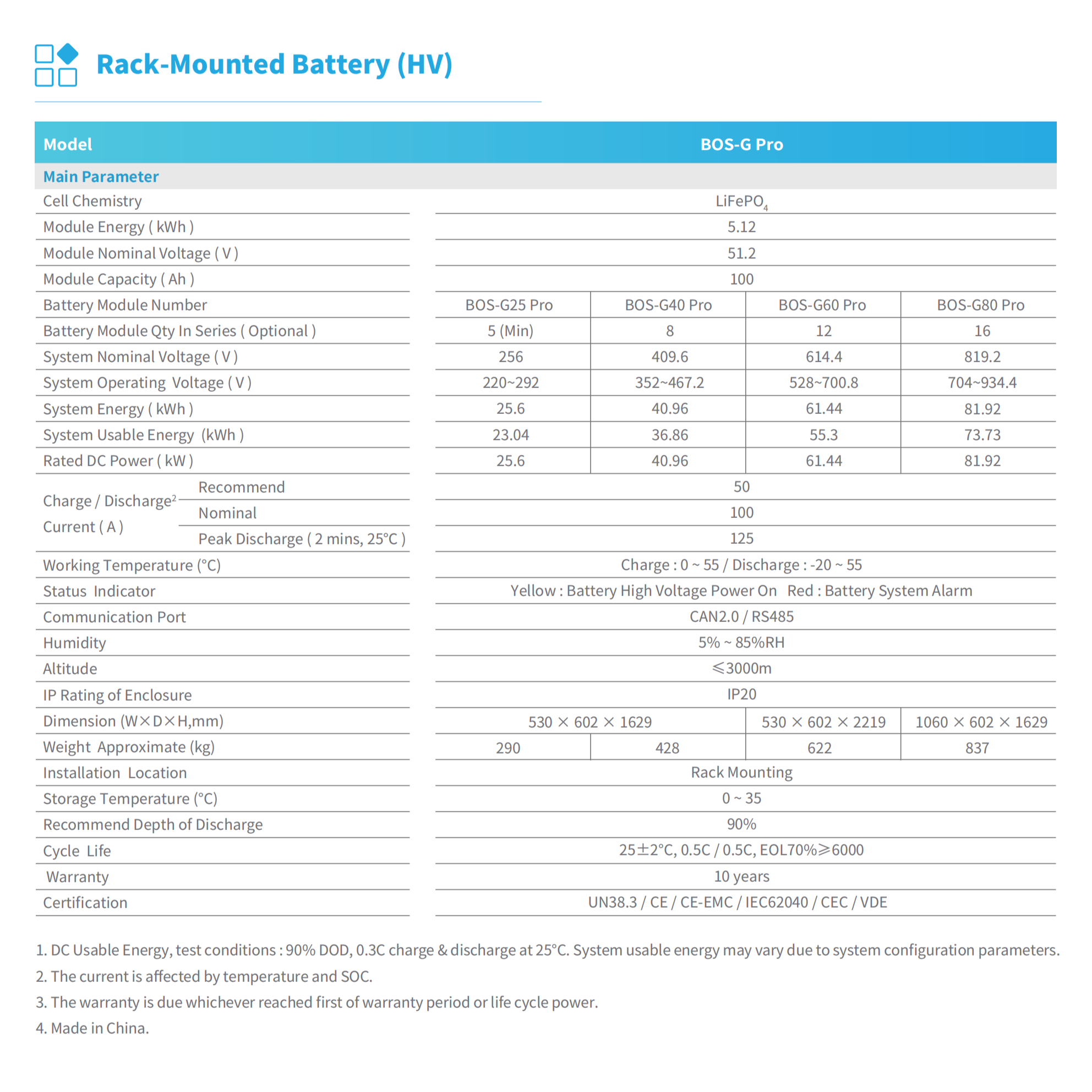

9-Layer Rack: Full Specifications
| Specifications | |
| Safety and long service life | LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation. |
| Wide temperature range | Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations. |
| Environmentally friendly | Completely free of toxic substances and built from recyclable materials. |
| System capacity | Max 40.96 kWh (8 × 5.12kWh modules) |
| Nominal system voltage | 409.6 V(8 × 51.2V modules) |
| Usable energy | 36.86 kWh (at 90% DoD) |
| Dimensions (W × H × D) | 530 × 602 × 1629 mm |
| Weight | approx. 428 kg (including batteries) |
| Ingress protection | IP20 |
| Communication | CAN2.0 / RS485 |
| Recommended depth of discharge (DOD) | 90% |
| Certifications | UN38.3, CE, CE-EMC, IEC62040, VDE, etc. |
| Dimension (W×D×H) | 530 × 602 × 1629mm |
| Weight Approximate | 51kg |
✔ 10-Year Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the 9-Layer Rack online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar batteries and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this 3U-LRack matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Solar Power available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated. | Your Solar Power Supply Specialists.
Additional information
| Weight | 428 kg |
|---|---|
| Dimensions | 1629 × 530 × 602 mm |
| MPN | |
| Brand | |
| Copper Pipe (mm) | |
| Series | |
| Unit Type |
