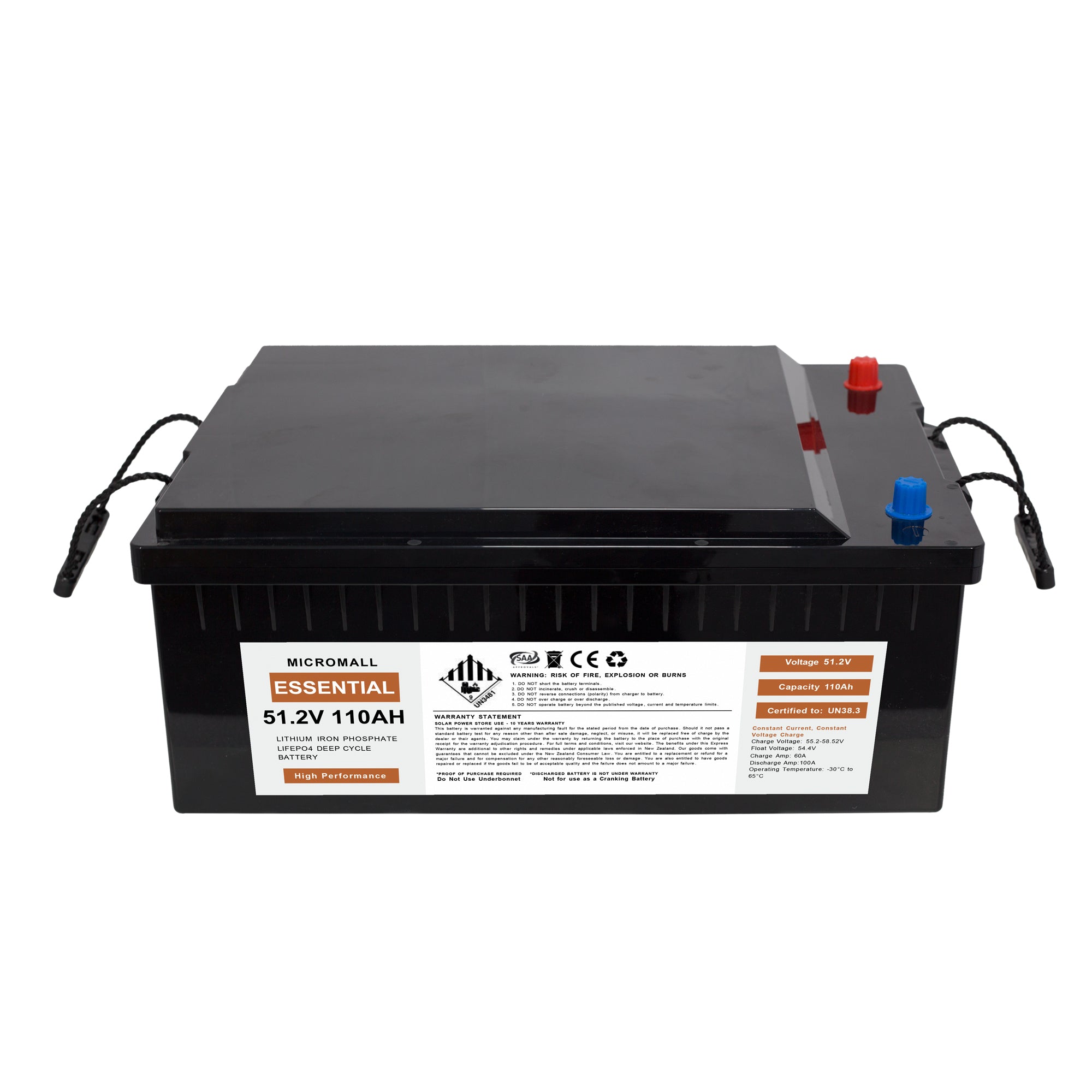

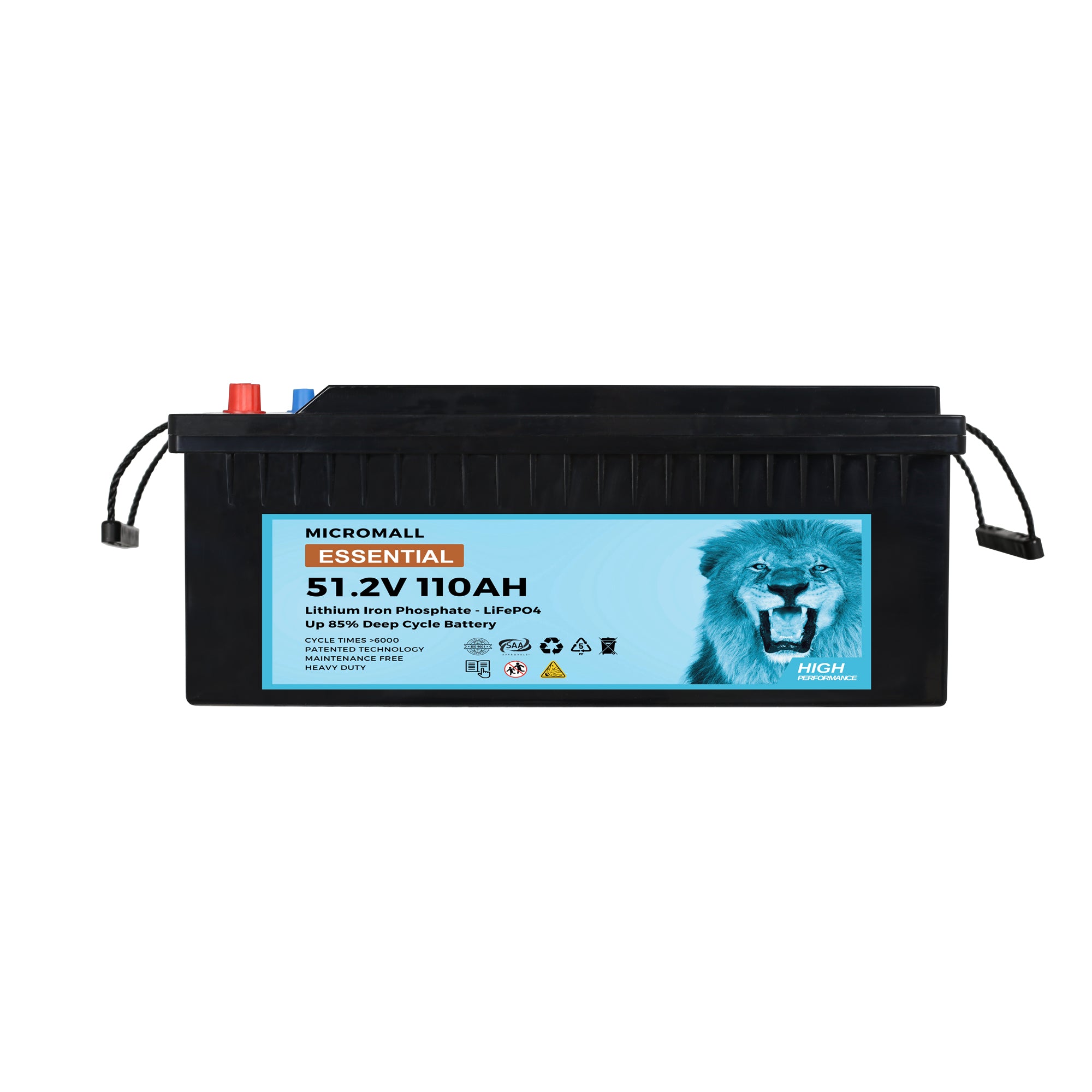

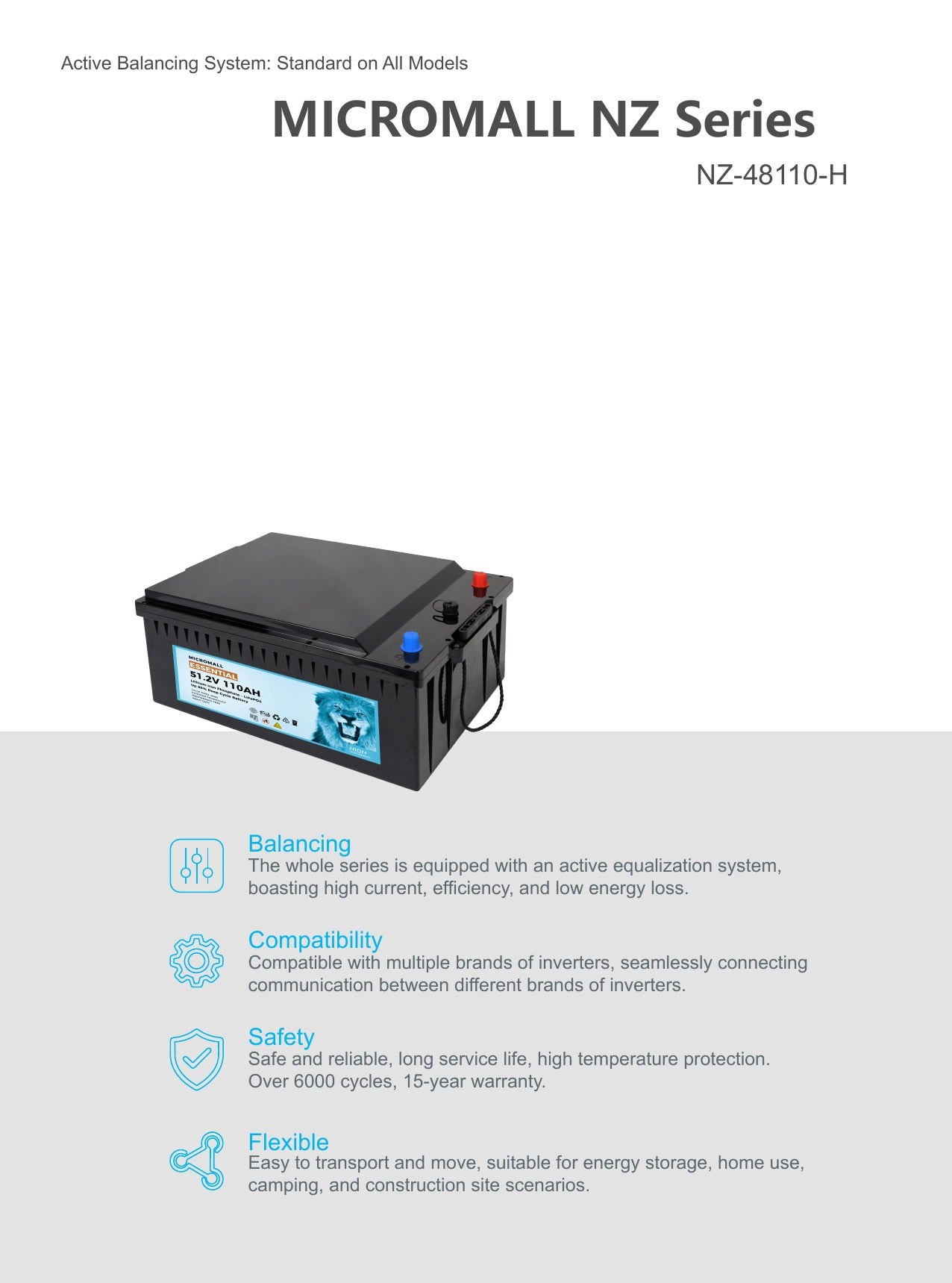

48V 51.2V 110Ah 5kWh LiFePO4 Battery IP54 Deep Cycle Solar Battery
Roll over image to zoom in
$1,629.99
Price Match*
Price Match*
48V 51.2V 110Ah 5kWh LiFePO4 Battery IP54 Deep Cycle Solar Battery. 5kWh storage. Full NZ Manufacturer Warranty. NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
48V 51.2V 110Ah 5kWh LiFePO4 Battery IP54 Deep Cycle Solar Battery: Genuine Trade Supply
You are viewing the 48V 51.2V 110Ah 5kWh LiFePO4 Battery IP54 Deep Cycle Solar Battery (SKU: BTL-48V110H). This is a 100 percent genuine Lithium LiFePO4 Batteries product from our Solar Batteries range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: BTL-48V110H
48V 51.2V 110Ah 5kWh is a heavy-duty deep cycle battery built for solar storage, RV, marine and off-grid use across New Zealand, offering 5kWh of storage. Designed for thousands of charge cycles, it delivers dependable power day after day.
This 51.2V 110Ah LiFePO4 battery provides approximately 5kWh of energy storage for residential solar and backup-power systems. Its IP54 enclosure and broad inverter-protocol compatibility make it suitable for integration with a wide range of common off-grid and grid-connected inverters.
Key Features
- ✓ Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters
- ✓ Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application
- ✓ Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load
- ✓ Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs
- ✓ Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
- ✓ Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
- ✓ Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.

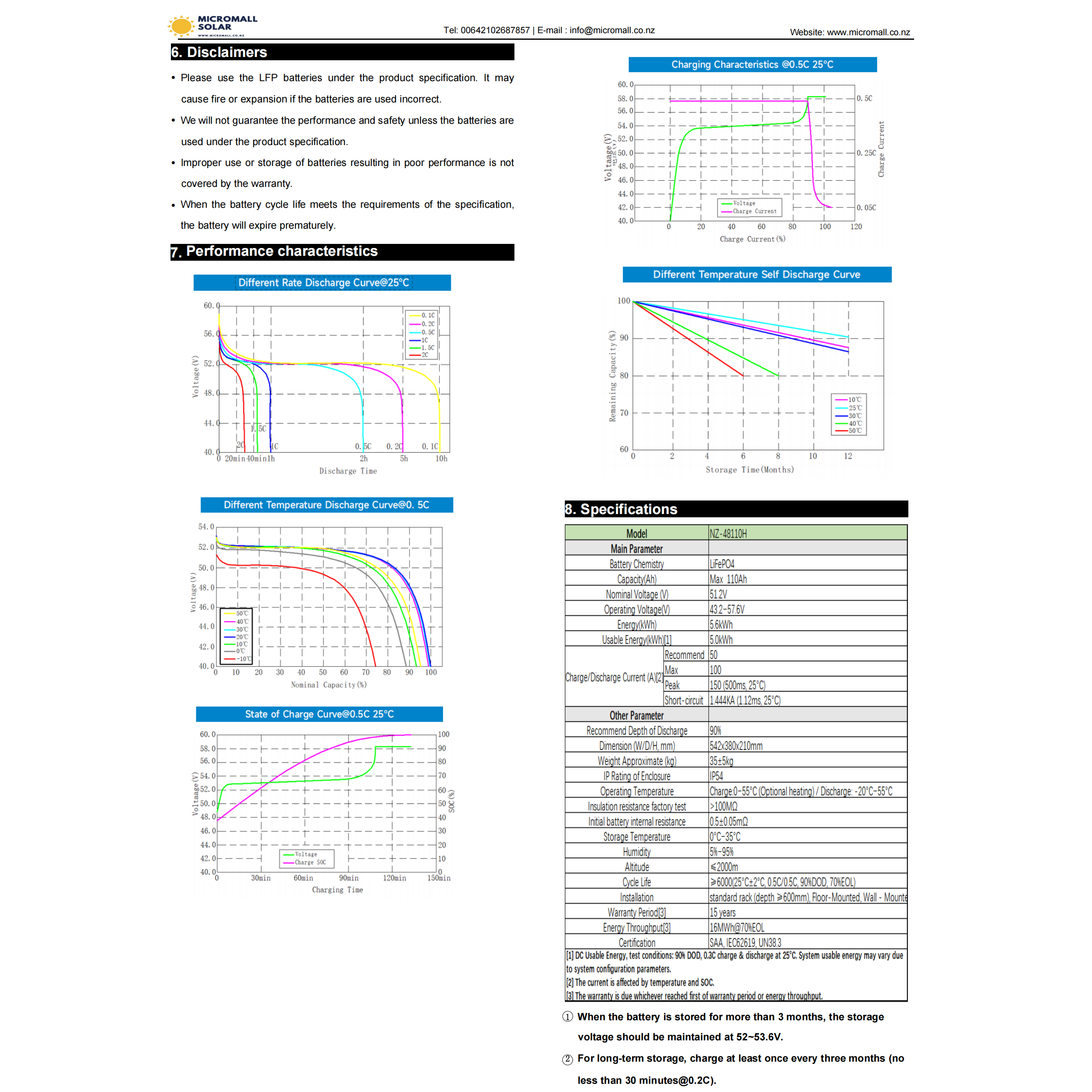

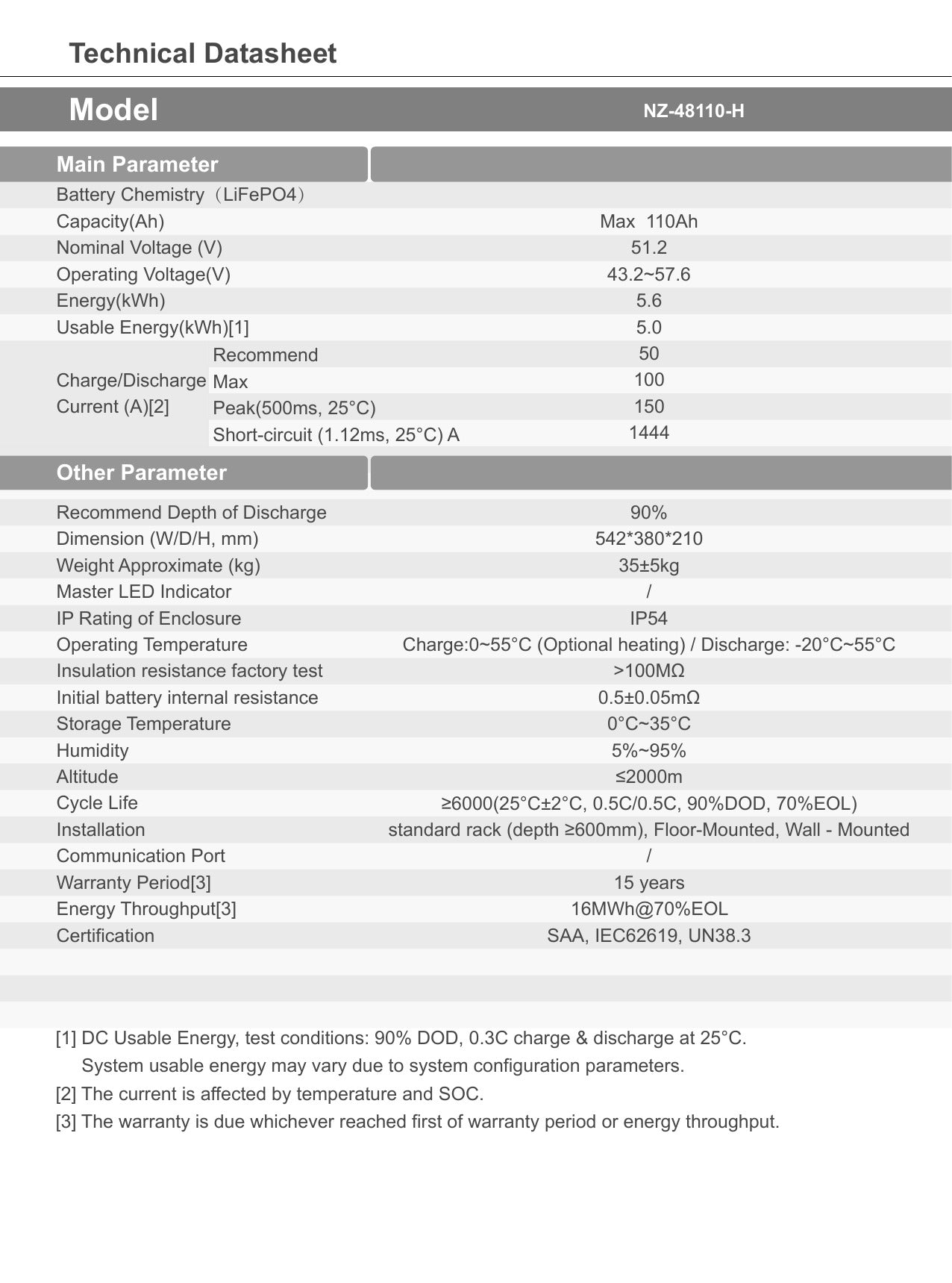

48V 51.2V 110Ah 5kWh: Full Specifications
| Specifications | |
| Comprehensive Compatibility | This system is compatible with various inverter protocols available on the market, ensuring versatile application. |
| Model | NZ-48110H |
| Battery Chemistry | LiFePO4 |
| Max Capacity(Ah) | 110Ah |
| Nominal Voltage (V) | 51.2V |
| Operating Voltage(V) | 43.2 – 57.6V |
| Energy(kWh) | 5.6kWh |
| Usable Energy(kWh) | 5.0kWh |
| Charge/Discharge Current (A) Recommend, Max | 50, 100 |
| Charge/Discharge Current (A) Peak, Short-circuit | 150 (500ms, 25°C), 1.444KA (1.12ms, 25°C) |
| Recommend Depth of Discharge | 90% |

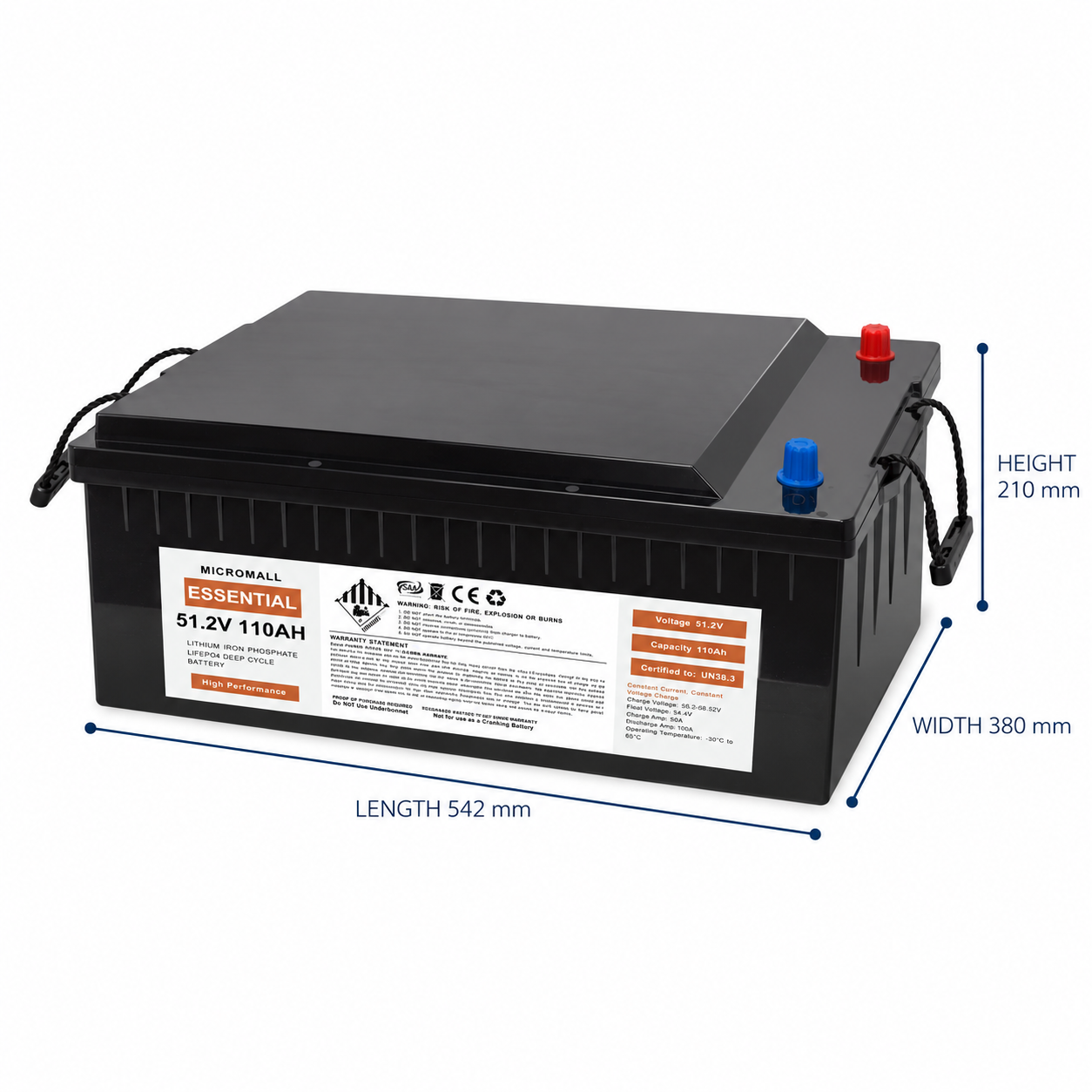

| Dimensions (Length × Width × Height) | 542 × 380 × 210 mm |
| Weight Approximate (kg) | 35+-5kg |
| Operating Temperature | Charge: 0 – 55°C (Optional heating) / Discharge: -20°C – 55°C |
| Insulation resistance factory test | >100MΩ |
| Initial battery internal resistance | 0.5+-0.05mΩ |
| Storage Temperature | 0°C – 35°C |
| Humidity | 5% – 95% |
| Altitude | <=2000m |
| Cycle Life | >=6000(25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL) |
| Installation | Standard rack (depth ≥600mm), Floor-Mounted, Wall – Mounted |
| Energy Throughput | 16MWh@70%EOL |
| Certification | SAA, IEC62619, UN38.3 |
✔ Full NZ Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the 48V 51.2V 110Ah 5kWh LiFePO4 Battery IP54 Deep Cycle Solar Battery online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar batteries and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this BTL-48V110H matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Solar Power available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated. | Your Solar Power Supply Specialists.
Additional information
| Weight | 35 kg |
|---|---|
| Dimensions | 210 × 542 × 380 mm |
| MPN | |
| Copper Pipe (mm) | |
| Series | |
| Unit Type |
