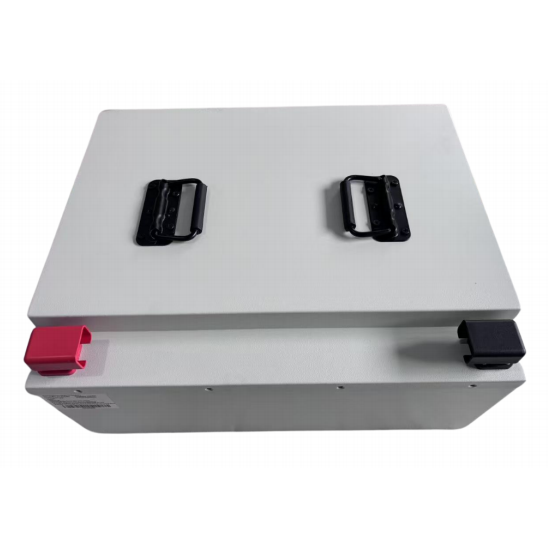

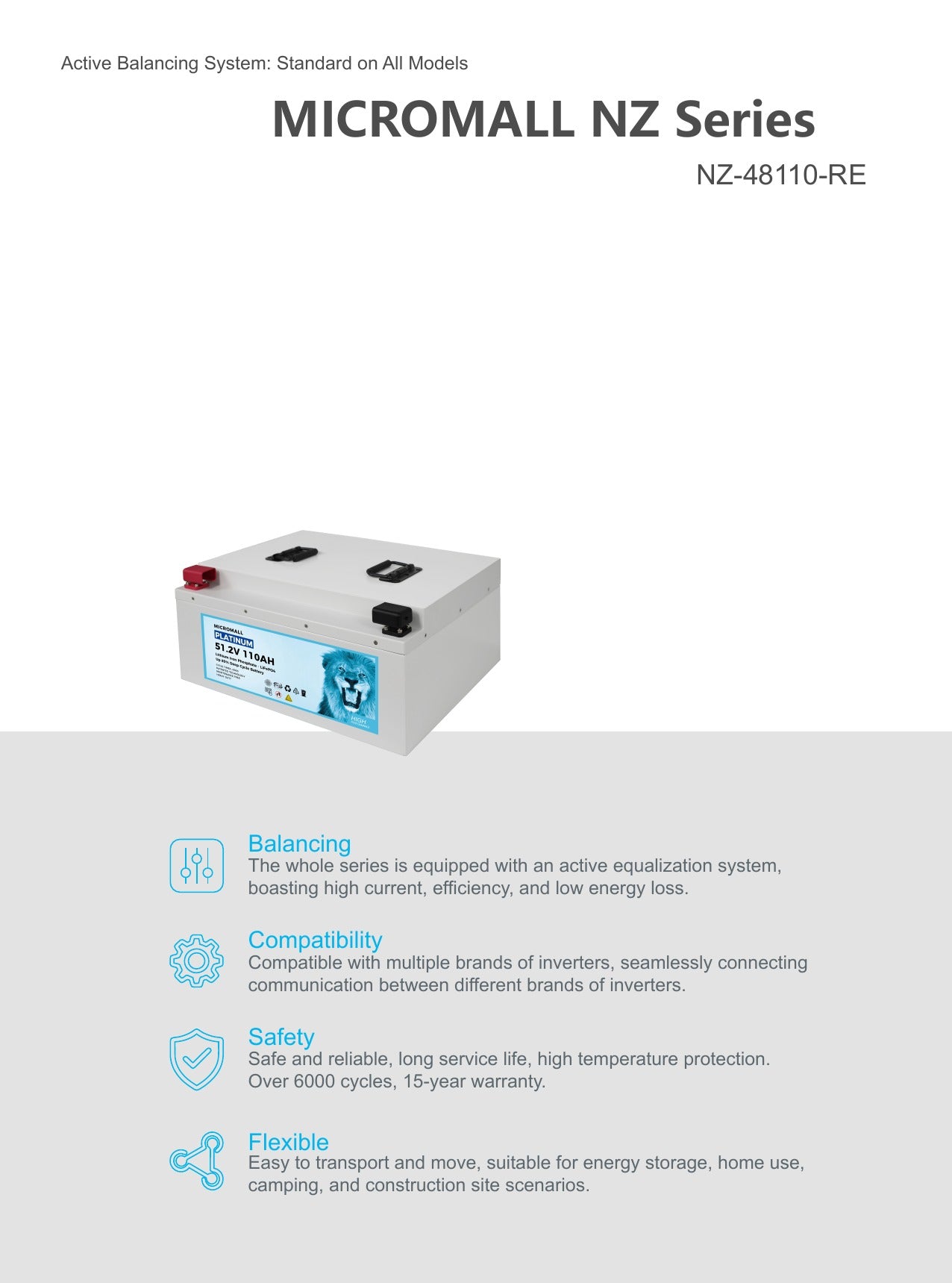

48V 51.2V 100Ah 110Ah 5kWh LiFePO4 Deep Cycle Battery 490x235mm – BTL-48V110RE
Roll over image to zoom in
$2,189.99
Price Match*
Price Match*
48V 51.2V 100Ah 110Ah 5kWh LiFePO4 Deep Cycle Battery. 5kWh storage. Full NZ Manufacturer Warranty. NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
48V 51.2V 100Ah 110Ah 5kWh LiFePO4 Deep Cycle Battery 490x235mm – BTL-48V110RE: Genuine Trade Supply
You are viewing the 48V 51.2V 100Ah 110Ah 5kWh LiFePO4 Deep Cycle Battery 490x235mm – BTL-48V110RE (SKU: BTL-48V110RE). This is a 100 percent genuine Lithium LiFePO4 Batteries product from our Solar Batteries range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: BTL-48V110RE
48V 51.2V 100Ah 110Ah is a heavy-duty deep cycle battery built for solar storage, RV, marine and off-grid use across New Zealand, offering 5kWh of storage. Designed for thousands of charge cycles, it delivers dependable power day after day.
This 48V-class 100Ah/110Ah LiFePO4 battery provides approximately 5kWh of storage for solar, backup and deep-cycle energy applications. It uses long-cycle lithium iron phosphate cells and supports communication with multiple inverter platforms for flexible system integration.
Key Features
- ✓ This commercial-grade LiFePO4 battery boasts 48V with a maximum capacity of 100Ah/110Ah and an energy rating of 5.0kWh. It is crafted using the latest long-cycle cell technology. With a daily discharge depth of 80%, this battery can be cycled 6,000 times, ensuring a lifespan of up to 20 years
- ✓ Real Cell Count: Features 16 genuine CATL brand new, Grade A cells that support 57.6V
- ✓ Performance: This battery can continuously charge and discharge at 300A. It stands out as one of the highest capacities in the NZ market, even suitable for electric vehicles

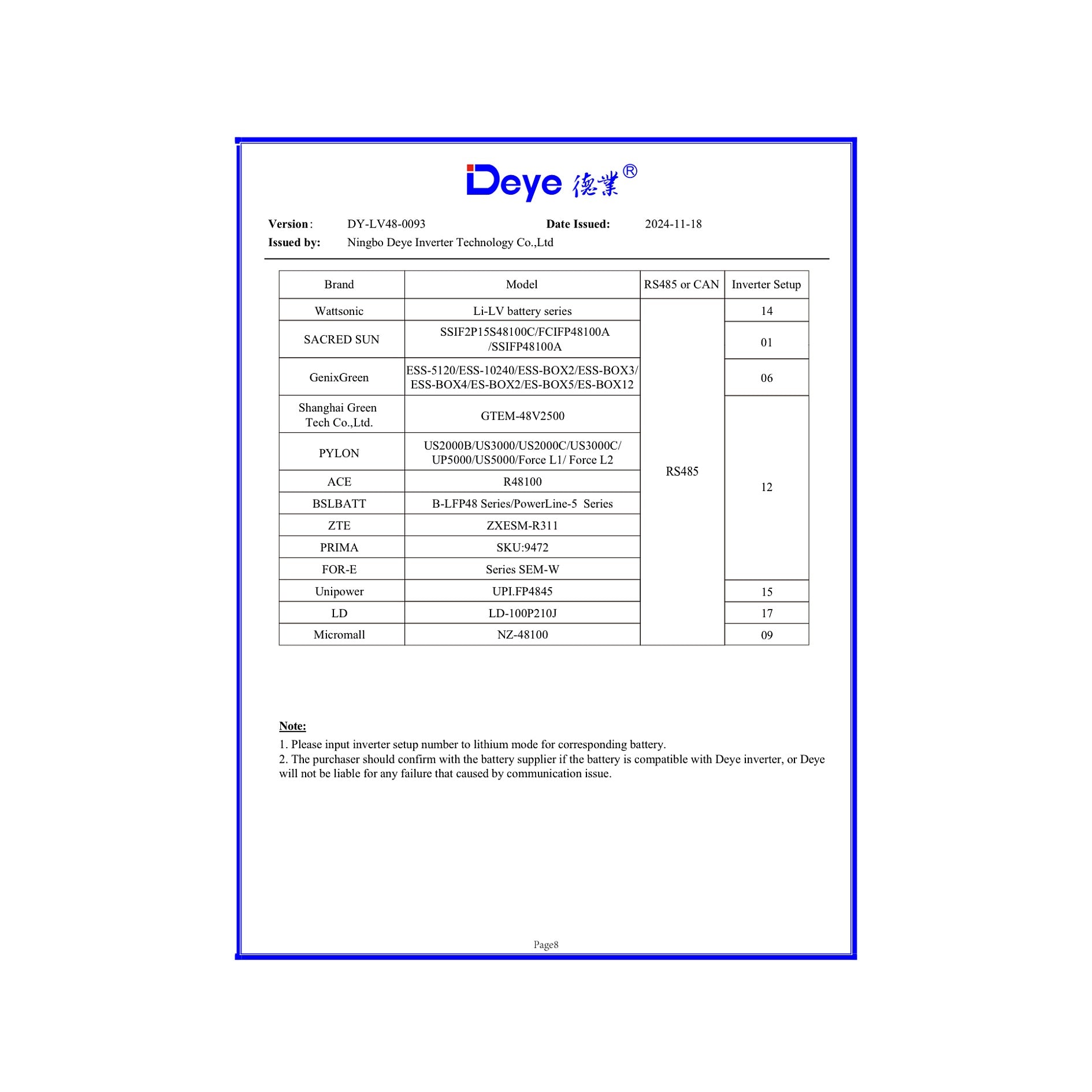

- ✓ Compatibility: This Grade A LiFePO4 battery is compatible with 48V lead acid batteries solar systems. It also supports most 48V MPPT controllers, 48V off-grid solar systems, and generators. Furthermore, it is built for seamless communication with Growatt, BlueSun, MustPower, Victron, and Deye off/on-grid systems

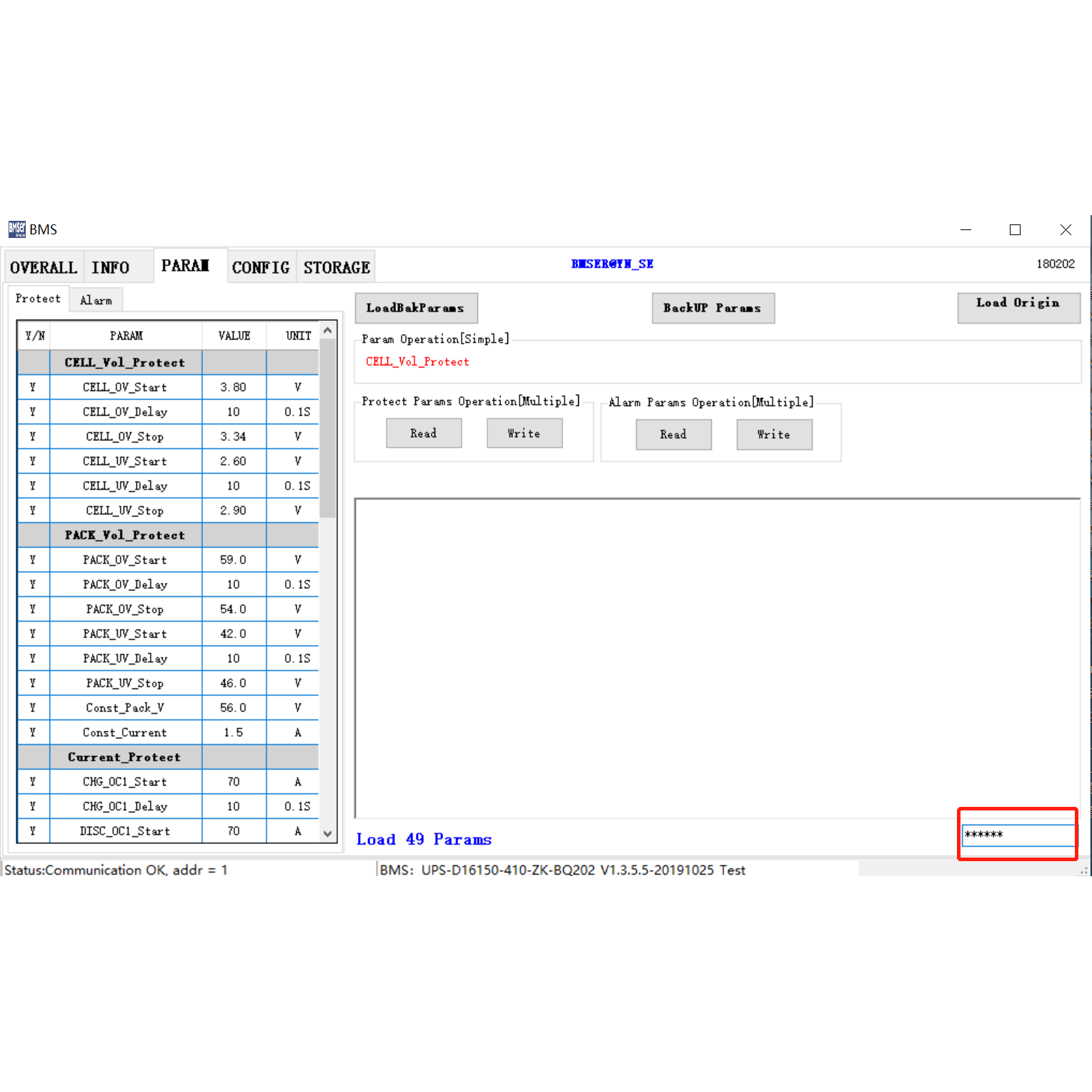

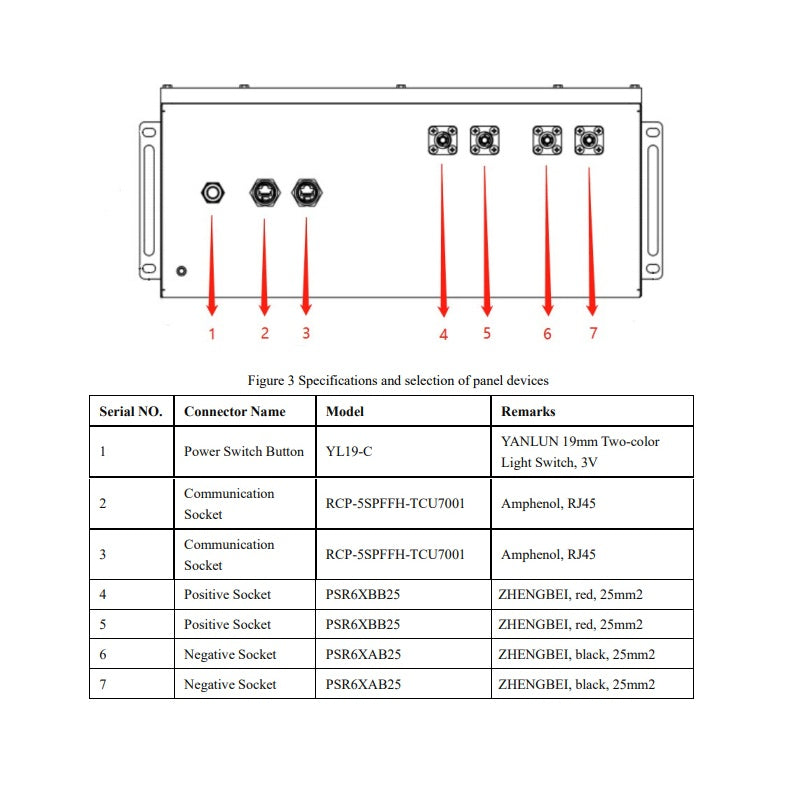

- ✓ Expansion: The battery allows for parallel connections to boost capacity. It also includes a 485 port, enabling computer monitoring using the provided software
- ✓ Performance: This battery can continuously charge and discharge at 300A. It stands out as one of the highest capacities in the NZ market, even suitable for electric vehicles.
- ✓ Compatibility: This Grade A LiFePO4 battery is compatible with 48V lead acid batteries solar systems. It also supports most 48V MPPT controllers, 48V off-grid solar systems, and generators. Furthermore, it is built for seamless communication with Growatt, BlueSun, MustPower, Victron, and Deye off/on-grid systems.
- ✓ Expansion: The battery allows for parallel connections to boost capacity. It also includes a 485 port, enabling computer monitoring using the provided software.

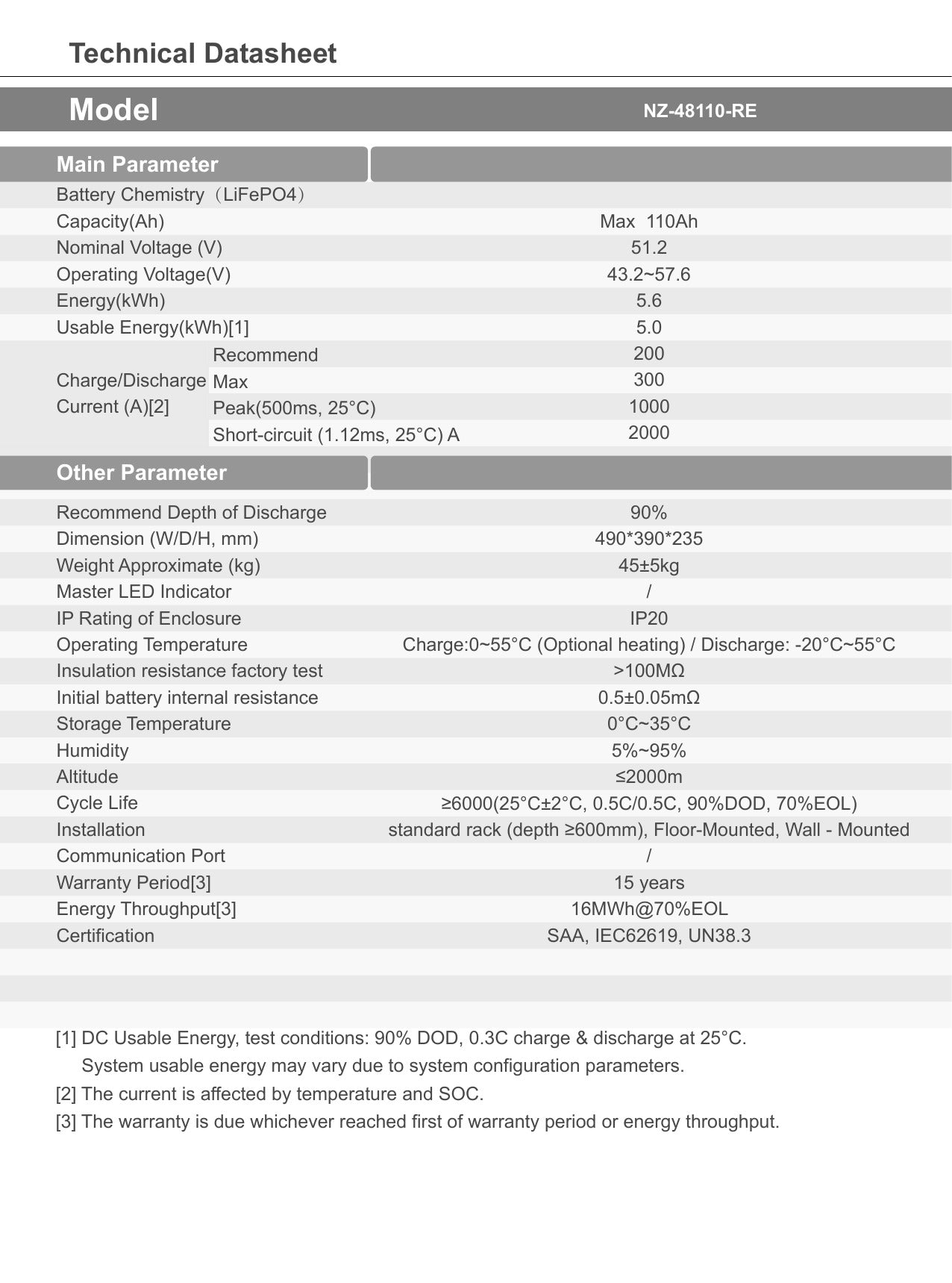

48V 51.2V 100Ah 110Ah: Full Specifications
| Specifications | |
| Life Expectancy | Over 20 years. Guaranteed 6,000 cycle times. |
| Real Cell Count | Features 16 genuine CATL brand new, Grade A cells that support 57.6V. |
| Type of Battery | Lithium Iron Phosphate (LFP) |
| Rated Capacity | Max 110Ah |
| Rated Energy | 5.0kWh |
| Operating Voltage Range | 43.2V – 57.6V DC |
| Standard Charging Current | 100A DC |
| Max Charging Continuous Current | 110A DC |
| Standard Discharge Current | 100A DC |
| Max Discharge Continuous Current | 110A DC |
| Max Discharge Pulse Current | 100A DC (30s, 25°C ± 2°C, SOC≥40%) |
| Operational Temperature Range | 0 – 55°C (charging), -20 – 55°C (discharging) |
| Output Short-Circuit Current | 2000A (400us, 25°C) |
| Altitude | Below 2000m |
| Cell Self-Discharge Rate | ≤5% (25°C, 50%SOC) |
| Insulation Resistance Factory Test | >100MΩ |
| Group Pressure Difference | ≤20mV |
| Battery Internal Resistance | 0.5±0.05mΩ |
| Weight | 45kg |

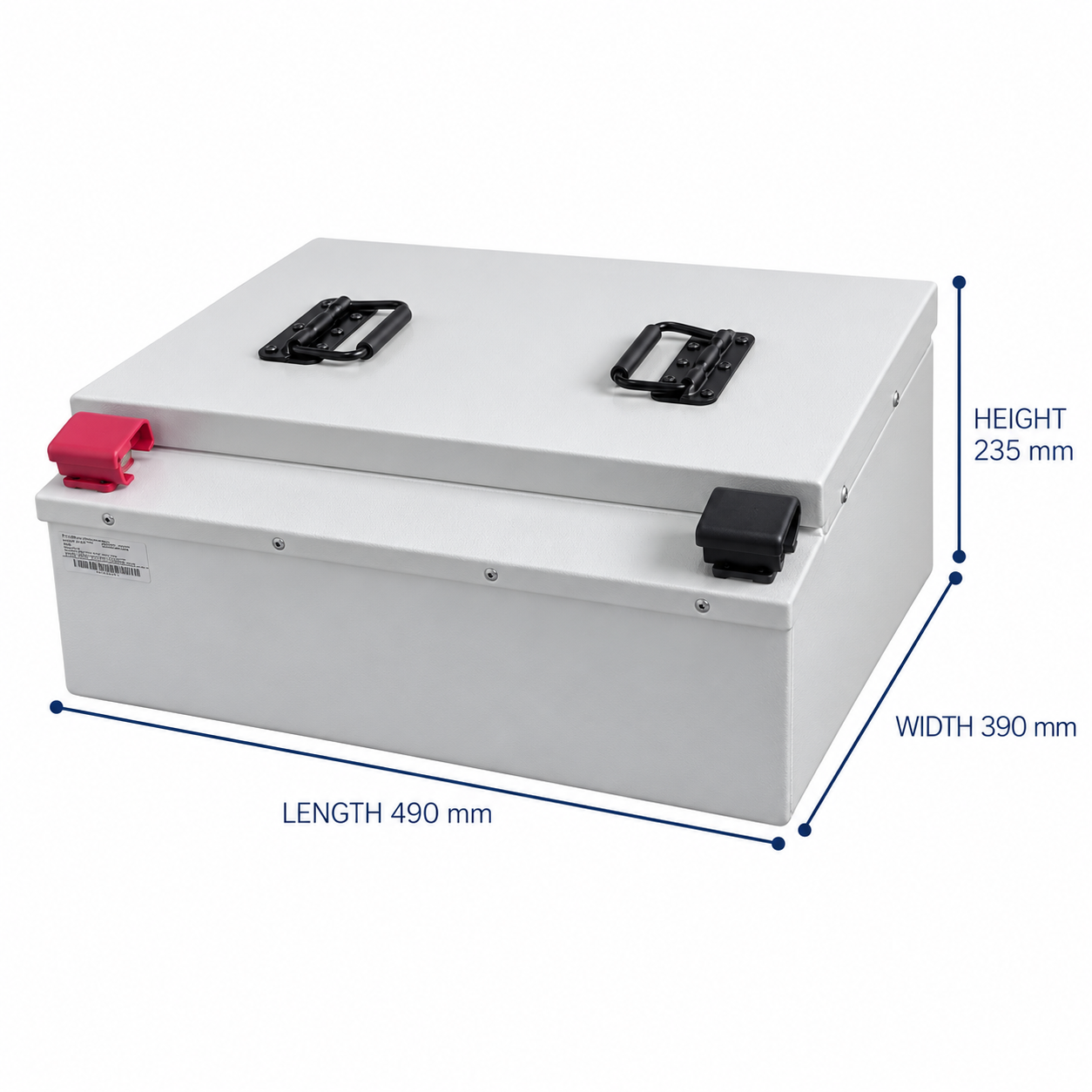

| Dimensions (Length × Width × Height) | 490 × 390 × 235 mm |
| Installation | standard rack (depth ≥600mm), Floor-Mounted, Wall – Mounted |
✔ Full NZ Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the 48V 51.2V 100Ah 110Ah 5kWh LiFePO4 Deep Cycle Battery online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar batteries and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this BTL-48V110RE matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.

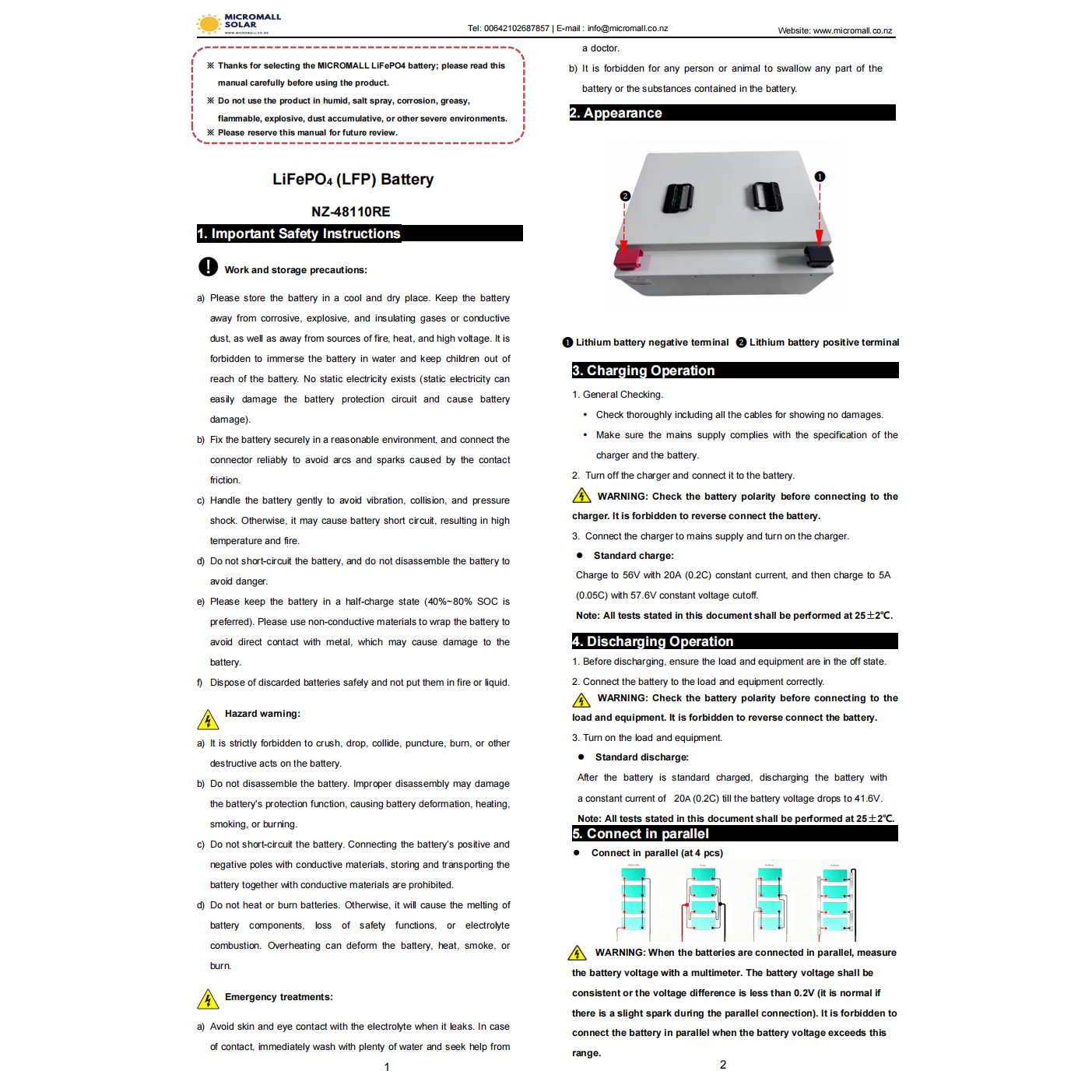

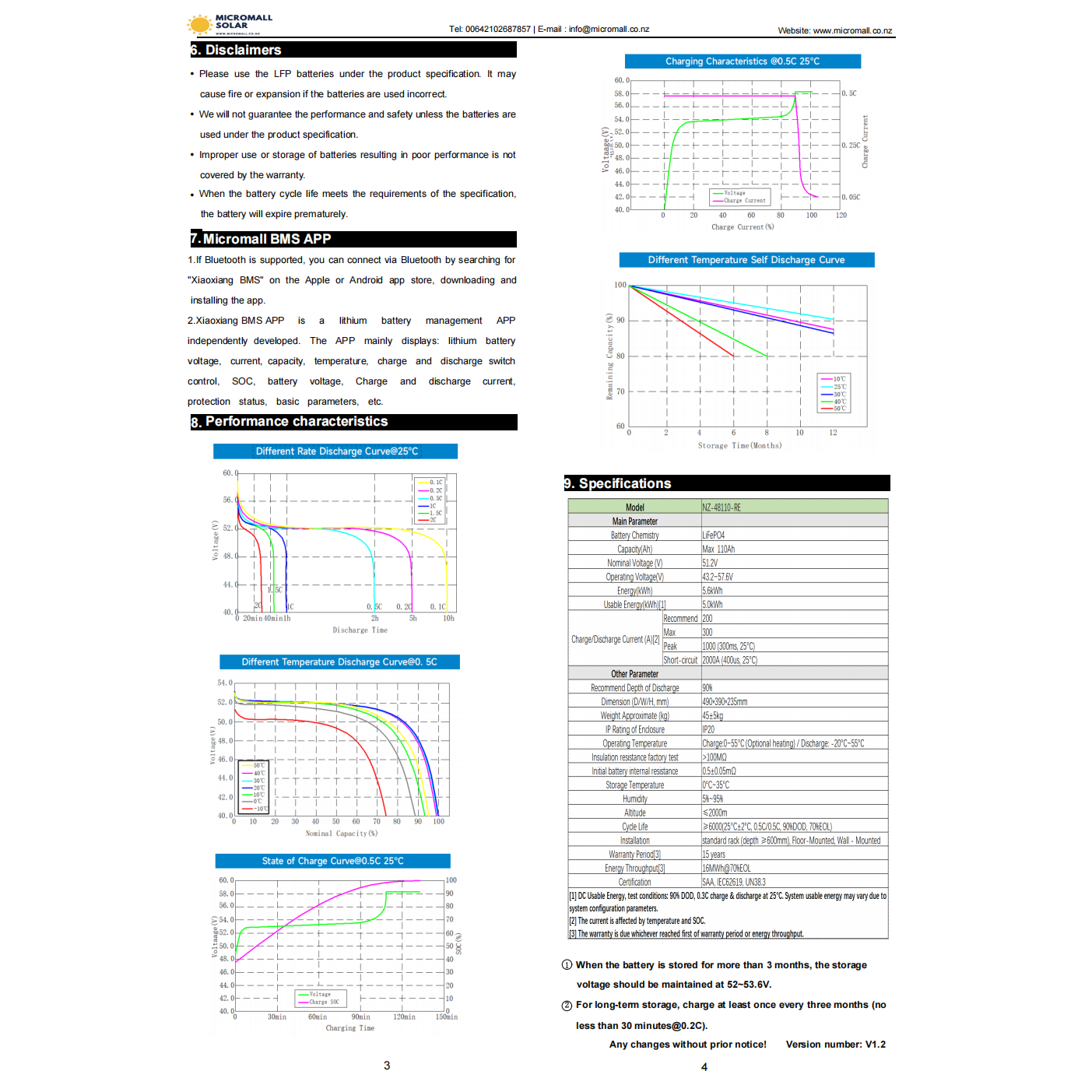

Downloads and Documents
Browse the full range of Solar Power available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated. | Your Solar Power Supply Specialists.
Additional information
| Weight | 45 kg |
|---|---|
| Dimensions | 235 × 490 × 390 mm |
| MPN | |
| Copper Pipe (mm) | |
| Series | |
| Unit Type |
