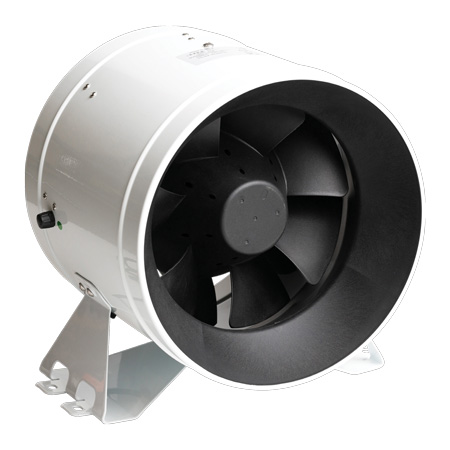

250mm dia, Elta EC Inline Mixed Flow fan, c/w POT - Commercial Fans - SJMF250
Image is for illustration only. Please go by the model number (SKU: SJMF250).
-42%Roll over image to zoom in
$790.48$1,367.98 (-42%)
Price Match*
Price Match*
Discount per Quantity
| Quantity | Discount | Price |
|---|
| 1 - 4 | 0% | $790.48 | |
| 5 - 9 | 8% | $727.24 | |
| 10 - 19 | 12% | $695.62 | |
| 20 + | 18% | $648.19 |
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Professional HVAC Component: 250mm dia, Elta EC Inline Mixed Flow fan, c/w POT
You are viewing the 250mm dia, Elta EC Inline Mixed Flow fan, c/w POT (SKU: SJMF250). A professional-grade component from the Commercial Fans series, engineered for New Zealand’s residential and commercial ventilation systems. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Technical Verification Required
Ventilation components require precise sizing. Please verify that this SJMF250 model matches your system’s diameter and connection type (e.g., Big End vs Small End) before ordering.
Key Specs:
Category: Commercial Fans
Type: Jetflow SJMF EC Fans
Product Specifications
The SJMF Series Mixed Flow Inline Fans combine high performance, energy efficiency, and quiet operation in a robust, compact design. Each unit features a precision-engineered double mixed flow impeller directly driven by a brushless EC motor for smooth, efficient airflow and long service life.
Application
Designed for general HVAC heating and cooling systems in both commercial and domestic installations. Suitable for supply or exhaust ventilation applications that require quiet, high-efficiency airflow. Ideal for ducted systems demanding variable speed control and compliance with modern energy standards.
Features / Benefits
- High-efficiency jet design double mixed flow impeller driven by brushless EC motor
- Sealed-for-life heavy-duty bearings rated for ambient temperatures up to +60?C
- Supplied for fixed speed operation with control options via potentiometer, 0?10VDC, or PWM input
- Detachable 5 m lead with 3.5 mm jack connection for remote control
- 1.5 m mains lead with standard 3-pin plug included
- Low power consumption and low Specific Fan Power (SFP) for energy efficiency
- Manufactured from aluminium or cold-rolled steel depending on model size
- Tested to ISO 5801 (airside performance) and BS EN ISO 5136 (sound performance)
- Designed and manufactured under BS EN ISO 9001 quality management standards
- 24-month warranty for long-term reliability
| SJMF250 | |
| Voltage (V) | 1-230 |
| Frequency (Hz) | 50 |
| Power (W) | 150 |
| Current (A) | 1.0 |
| Speed (RPM) | 3195 |
| Sound Pressure Level dB(A) @ 3m (Inlet Side) | 55 |
| Sound Pressure Level dB(A) @ 3m (Outlet Side) | 56 |
| Max Air Temperature (?C) | +60 |
| Protection Rating | IPX4 |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Fan Specifications | |
| Application | Domestic, Commercial |
| Shape | Cylinder |
| Materials | Aluminium |
| Colour | White |
| Spigot Diameter (mm) | 250 Ø |
| Height (mm) | 274 |
| Length (mm) | 210 |
| Weight (kg) | 3.7 |
Professional HVAC Supply: 250mm dia, Elta EC Inline Mixed Flow fan, c/w POT
You are viewing the 250mm dia, Elta EC Inline Mixed Flow fan, c/w POT (SKU: SJMF250). A critical component within our Commercial Fans range, designed specifically for New Zealand’s residential and commercial ventilation requirements. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Important: Measurement Verification
HVAC components require precise sizing. Please confirm this SJMF250 model matches your engineer’s specifications before ordering.
Dimensions: Length: 210mm | Width: 250mm | Height: 250mm.
Technical Specifications & Features
The SJMF Series Mixed Flow Inline Fans combine high performance, energy efficiency, and quiet operation in a robust, compact design. Each unit features a precision-engineered double mixed flow impeller directly driven by a brushless EC motor for smooth, efficient airflow and long service life.
Application
Designed for general HVAC heating and cooling systems in both commercial and domestic installations. Suitable for supply or exhaust ventilation applications that require quiet, high-efficiency airflow. Ideal for ducted systems demanding variable speed control and compliance with modern energy standards.
Features / Benefits
- High-efficiency jet design double mixed flow impeller driven by brushless EC motor
- Sealed-for-life heavy-duty bearings rated for ambient temperatures up to +60?C
- Supplied for fixed speed operation with control options via potentiometer, 0?10VDC, or PWM input
- Detachable 5 m lead with 3.5 mm jack connection for remote control
- 1.5 m mains lead with standard 3-pin plug included
- Low power consumption and low Specific Fan Power (SFP) for energy efficiency
- Manufactured from aluminium or cold-rolled steel depending on model size
- Tested to ISO 5801 (airside performance) and BS EN ISO 5136 (sound performance)
- Designed and manufactured under BS EN ISO 9001 quality management standards
- 24-month warranty for long-term reliability
| SJMF250 | |
| Voltage (V) | 1-230 |
| Frequency (Hz) | 50 |
| Power (W) | 150 |
| Current (A) | 1.0 |
| Speed (RPM) | 3195 |
| Sound Pressure Level dB(A) @ 3m (Inlet Side) | 55 |
| Sound Pressure Level dB(A) @ 3m (Outlet Side) | 56 |
| Max Air Temperature (?C) | +60 |
| Protection Rating | IPX4 |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Fan Specifications | |
| Application | Domestic, Commercial |
| Shape | Cylinder |
| Materials | Aluminium |
| Colour | White |
| Spigot Diameter (mm) | 250 Ø |
| Height (mm) | 274 |
| Length (mm) | 210 |
| Weight (kg) | 3.7 |
About the Jetflow SJMF EC Fans Series
Inline mixed flow circular fans with EC motors for low power consumption at high performance.
Technical Data
Additional information
| Weight | 3.7 kg |
|---|---|
| Dimensions | 210 × 250 × 250 mm |
| MPN | |
| Application | |
| Material | |
| Shape | |
| Colour |
