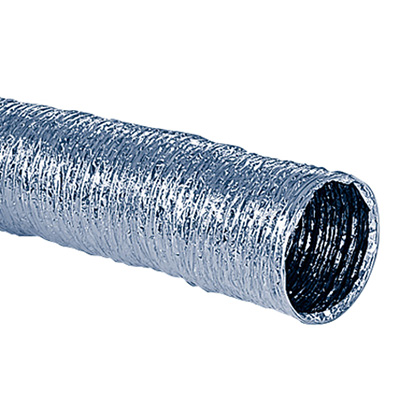

160083 Nude Flex 550 x 6m - Flexible Duct - Nude - PYN6550
Image is for illustration only. Please go by the model number (SKU: PYN6550).
-57%Roll over image to zoom in
$154.98$360.98 (-57%)
Price Match*
Price Match*
Discount per Quantity
| Quantity | Discount | Price |
|---|
| 1 - 4 | 0% | $154.98 | |
| 5 - 9 | 8% | $142.58 | |
| 10 - 19 | 12% | $136.38 | |
| 20 + | 18% | $127.08 |
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Professional HVAC Component: 160083 Nude Flex 550 x 6m
You are viewing the 160083 Nude Flex 550 x 6m (SKU: PYN6550). A professional-grade component from the Flexible Duct - Nude series, engineered for New Zealand’s residential and commercial ventilation systems. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Technical Verification Required
Ventilation components require precise sizing. Please verify that this PYN6550 model matches your system’s diameter and connection type (e.g., Big End vs Small End) before ordering.
Key Specs:
Category: Flexible Duct - Nude
Type: Uninsulated Flex
Product Specifications
Products specifications
| Attribute name | Attribute value |
|---|---|
| Performance | |
| Operating Temperature Range (°C) | -20 to +80 |
| Operation Pressure (Pa) | -190 to +1200 |
| Compliance & Standards | |
| Compliance | AS 4254:2012, UL 181 |
| Duct Specifications | |
| Application | Exhaust and Ventilation Systems |
| Shape | Cylinder |
| Material | Mylar Outer Jacket, Steel Wire, Flame Resistant Adhesive |
| Colour | Silver |
| Finish | Reflective |
| Duct/Spigot Diameter (mm) | 550 Ø |
| Length (mm) | 6000 |
Professional HVAC Supply: 160083 Nude Flex 550 x 6m
You are viewing the 160083 Nude Flex 550 x 6m (SKU: PYN6550). A critical component within our Flexible Duct - Nude range, designed specifically for New Zealand’s residential and commercial ventilation requirements. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Important: Measurement Verification
HVAC components require precise sizing. Please confirm this PYN6550 model matches your engineer’s specifications before ordering.
Dimensions: Length: 6000mm | Width: 550mm | Height: 550mm.
Technical Specifications & Features
Products specifications
| Attribute name | Attribute value |
|---|---|
| Performance | |
| Operating Temperature Range (°C) | -20 to +80 |
| Operation Pressure (Pa) | -190 to +1200 |
| Compliance & Standards | |
| Compliance | AS 4254:2012, UL 181 |
| Duct Specifications | |
| Application | Exhaust and Ventilation Systems |
| Shape | Cylinder |
| Material | Mylar Outer Jacket, Steel Wire, Flame Resistant Adhesive |
| Colour | Silver |
| Finish | Reflective |
| Duct/Spigot Diameter (mm) | 550 Ø |
| Length (mm) | 6000 |
About the Uninsulated Flex Series
Uninsulated duct.
Metalised outer surface
Fire Rated 4254-2002
Operating temperature: -20C to +80C
Operating pressure: -190pa to +1200pa
General Use: exhaust and ventilation systems
Diameters (mm): 100 125 150 200 250 300 250 400 450 500 550 600
Lengths: 3m or 6m
Additional information
| Dimensions | 6000 × 550 × 550 mm |
|---|---|
| MPN | |
| Application | |
| Compliance | |
| Operating Temperature | |
| Pressure Range | |
| Material | |
| Shape | |
| Colour | |
| Finish |
