Wall Axial Fan 300-4E 372FIDl/s – Commercial Fans – VEOV300-4E

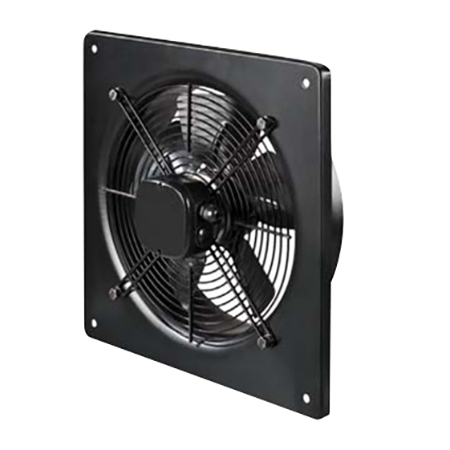

Image is for illustration only. Please go by the model number (SKU: VEOV300-4E).
-43%Roll over image to zoom in
$852.48$1,500.98 (-43%)
Price Match*
Price Match*
Discount per Quantity
| Quantity | Discount | Price |
|---|
| 1 - 4 | 0% | $852.48 | |
| 5 - 9 | 8% | $784.28 | |
| 10 - 19 | 12% | $750.18 | |
| 20 + | 18% | $699.03 |
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Professional HVAC Component: Wall Axial Fan 300-4E 372FIDl/s
You are viewing the Wall Axial Fan 300-4E 372FIDl/s (SKU: VEOV300-4E). A professional-grade component from the Commercial Fans series, engineered for New Zealand’s residential and commercial ventilation systems. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Technical Verification Required
Ventilation components require precise sizing. Please verify that this VEOV300-4E model matches your system’s diameter and connection type (e.g., Big End vs Small End) before ordering.
Key Specs:
Category: Commercial Fans
Type: OV Wall mount axial fans (extract)
Product Specifications
The VEOV Series Axial Fans deliver high airflow performance in a durable steel casing. Designed for installations requiring large air volumes at low system resistance, these wall?mounted fans combine efficiency, reliability, and straightforward installation for continuous ventilation or smoke exhaust systems.
Application
Suitable for combined supply and exhaust ventilation in industrial, commercial, and utility environments. Ideal for applications requiring high air movement at low pressure such as workshops, warehouses, and car parks. Also suitable for direct air exhaust or pressurisation in smoke ventilation systems. Designed for outdoor wall mounting using the integrated square base plate.
Features / Benefits
- High?capacity axial fan for low?pressure ventilation systems
- Strong steel casing and impeller with protective polymer coating
- Two? or four?pole asynchronous motor with external rotor and built?in thermal protection
- Ball bearings rated for at least 40?000?hours of continuous operation
- IP44 motor protection rating ensures long service life and reliability
- Smooth or step speed control via thyristor or autotransformer controller
- Terminal box with cord allows remote electrical connection
- Simple wall mounting using square base plate with compact design
| VEOV300-4E | |
| Air Capacity, m?/h | 1340 |
| Air Capacity, L/s | 372 |
| Sound Level 3m, dBA | 44 |
| RPM | 1350 |
| Power, W | 75 |
| Consumption Current, A | 0.35 |
| Voltage, V | 230 |
| Maximum Temperature, ?C | 60 |
| Protection Class | IP24 |
| AU/NZ Cert. Tested – TUV022911EA | Yes |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Fan Specifications | |
| Application | Commercial, Industrial |
| Installation Location | Wall |
| Shape | Square |
| Materials | Polymer-Coated steel |
| Colour | Black |
| Spigot Diameter (mm) | 317 Ø |
| Length (mm) | 145 |
| Width (mm) | 430 |
| Weight (kg) | 5.0 |
Professional HVAC Supply: Wall Axial Fan 300-4E 372FIDl/s
You are viewing the Wall Axial Fan 300-4E 372FIDl/s (SKU: VEOV300-4E). A critical component within our Commercial Fans range, designed specifically for New Zealand’s residential and commercial ventilation requirements. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Important: Measurement Verification
HVAC components require precise sizing. Please confirm this VEOV300-4E model matches your engineer’s specifications before ordering.
Dimensions: Length: 145mm | Width: 317mm | Height: 317mm.
Technical Specifications & Features
The VEOV Series Axial Fans deliver high airflow performance in a durable steel casing. Designed for installations requiring large air volumes at low system resistance, these wall?mounted fans combine efficiency, reliability, and straightforward installation for continuous ventilation or smoke exhaust systems.
Application
Suitable for combined supply and exhaust ventilation in industrial, commercial, and utility environments. Ideal for applications requiring high air movement at low pressure such as workshops, warehouses, and car parks. Also suitable for direct air exhaust or pressurisation in smoke ventilation systems. Designed for outdoor wall mounting using the integrated square base plate.
Features / Benefits
- High?capacity axial fan for low?pressure ventilation systems
- Strong steel casing and impeller with protective polymer coating
- Two? or four?pole asynchronous motor with external rotor and built?in thermal protection
- Ball bearings rated for at least 40?000?hours of continuous operation
- IP44 motor protection rating ensures long service life and reliability
- Smooth or step speed control via thyristor or autotransformer controller
- Terminal box with cord allows remote electrical connection
- Simple wall mounting using square base plate with compact design
| VEOV300-4E | |
| Air Capacity, m?/h | 1340 |
| Air Capacity, L/s | 372 |
| Sound Level 3m, dBA | 44 |
| RPM | 1350 |
| Power, W | 75 |
| Consumption Current, A | 0.35 |
| Voltage, V | 230 |
| Maximum Temperature, ?C | 60 |
| Protection Class | IP24 |
| AU/NZ Cert. Tested – TUV022911EA | Yes |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Fan Specifications | |
| Application | Commercial, Industrial |
| Installation Location | Wall |
| Shape | Square |
| Materials | Polymer-Coated steel |
| Colour | Black |
| Spigot Diameter (mm) | 317 Ø |
| Length (mm) | 145 |
| Width (mm) | 430 |
| Weight (kg) | 5.0 |
About the OV Wall mount axial fans (extract) Series
Combined supply and exhaust ventilation systems for various premises where high air capacity at relatively low system resistance is required.
Can be used for the direct air exhaust or pressurization in smoke ventilation systems
Suitable for outdoor wall mounting
2E = 2 pole, 1 phase
4E = 4 pole, 1 phase
All fans are single phase, 3 phase readily available
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 145 × 317 × 317 mm |
| MPN | |
| Application | |
| Material | |
| Shape | |
| Colour |
