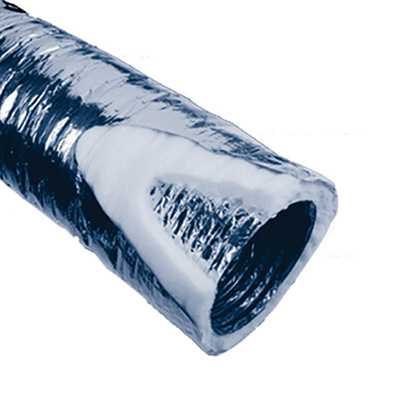

110004 Insulated Flex 200 x 6m R0.6 – Flexible Duct – Insulated – PY6200
Image is for illustration only. Please go by the model number (SKU: PY6200).
-59%Roll over image to zoom in
$61.98$151.98 (-59%)
Price Match*
Price Match*
Discount per Quantity
| Quantity | Discount | Price |
|---|
| 1 - 4 | 0% | $61.98 | |
| 5 - 9 | 8% | $57.02 | |
| 10 - 19 | 12% | $54.54 | |
| 20 + | 18% | $50.82 |
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Professional HVAC Component: 110004 Insulated Flex 200 x 6m R0.6
You are viewing the 110004 Insulated Flex 200 x 6m R0.6 (SKU: PY6200). A professional-grade component from the Flexible Duct – Insulated series, engineered for New Zealand’s residential and commercial ventilation systems. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Technical Verification Required
Ventilation components require precise sizing. Please verify that this PY6200 model matches your system’s diameter and connection type (e.g., Big End vs Small End) before ordering.
Key Specs:
Category: Flexible Duct – Insulated
Type: Insulated Flexible Duct
Product Specifications
PY6200 is a 200mm insulated flexible duct supplied in a 6m length, suitable for domestic and commercial HVAC applications.
Compliant with AS 4254:2012 and UL 181, the duct features a metallised Mylar inner core supported by steel wire, with polyester insulation and a reflective silver Mylar outer jacket. The insulation provides an R-value of 0.6.
Features and specifications
-
Compliance: AS 4254:2012 and UL 181
-
Duct diameter: 200mm
-
Overall outer diameter: 225mm
-
Length: 6m
-
Insulation: Polyester, R0.6
-
Inner core: Metallised Mylar with steel wire support
-
Outer jacket: Reflective silver Mylar
-
Operating temperature range: ?20?C to +80?C
-
Operating pressure range: ?190Pa to +1,200Pa
-
Applications: Domestic and commercial HVAC systems
Products specifications
| Attribute name | Attribute value |
|---|---|
| Performance | |
| Operating Temperature Range (°C) | -20 to +80 |
| Operation Pressure (Pa) | -190 to +1200 |
| Compliance & Standards | |
| Compliance | AS 4254:2012, UL 181 |
| Duct Specifications | |
| Application | Commercial, Domestic |
| Shape | Cylinder |
| Material | Mylar Outer Jacket, Metallised-Mylar Inner Core, Steel Wire, Flame Resistant Adhesive, Polyester Insulation |
| Colour | Silver |
| Finish | Reflective |
| Duct/Spigot Diameter (mm) | 200 Ø |
| Outer Duct/Spigot Diameter (mm) | 225 Ø |
| Length (mm) | 6000 |
| R Value | 0.6 |
Professional HVAC Supply: 110004 Insulated Flex 200 x 6m R0.6
You are viewing the 110004 Insulated Flex 200 x 6m R0.6 (SKU: PY6200). A critical component within our Flexible Duct – Insulated range, designed specifically for New Zealand’s residential and commercial ventilation requirements. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Important: Measurement Verification
HVAC components require precise sizing. Please confirm this PY6200 model matches your engineer’s specifications before ordering.
Dimensions: Length: 6000mm | Width: 225mm | Height: 225mm.
Technical Specifications & Features
PY6200 is a 200mm insulated flexible duct supplied in a 6m length, suitable for domestic and commercial HVAC applications.
Compliant with AS 4254:2012 and UL 181, the duct features a metallised Mylar inner core supported by steel wire, with polyester insulation and a reflective silver Mylar outer jacket. The insulation provides an R-value of 0.6.
Features and specifications
-
Compliance: AS 4254:2012 and UL 181
-
Duct diameter: 200mm
-
Overall outer diameter: 225mm
-
Length: 6m
-
Insulation: Polyester, R0.6
-
Inner core: Metallised Mylar with steel wire support
-
Outer jacket: Reflective silver Mylar
-
Operating temperature range: ?20?C to +80?C
-
Operating pressure range: ?190Pa to +1,200Pa
-
Applications: Domestic and commercial HVAC systems
Products specifications
| Attribute name | Attribute value |
|---|---|
| Performance | |
| Operating Temperature Range (°C) | -20 to +80 |
| Operation Pressure (Pa) | -190 to +1200 |
| Compliance & Standards | |
| Compliance | AS 4254:2012, UL 181 |
| Duct Specifications | |
| Application | Commercial, Domestic |
| Shape | Cylinder |
| Material | Mylar Outer Jacket, Metallised-Mylar Inner Core, Steel Wire, Flame Resistant Adhesive, Polyester Insulation |
| Colour | Silver |
| Finish | Reflective |
| Duct/Spigot Diameter (mm) | 200 Ø |
| Outer Duct/Spigot Diameter (mm) | 225 Ø |
| Length (mm) | 6000 |
| R Value | 0.6 |
About the Insulated Flexible Duct Series
Domestic and commercial systems.
Tough mylar outer jacket
Metalized Mylar inner core
Fully encapsulated spring steel wire
Flame resistant dry lamination adhesive resin
High and low pressure suitability
Low resistance to airflow (correct installation)
Polyester insulation
Metalized outer fire jacket
Operating temperature: -20C to +80C
General use: heating and cooling
Complies with A.S. 4254 – 2002
Test certificates available
Additional information
| Dimensions | 6000 × 225 × 225 mm |
|---|---|
| MPN | |
| R Value | |
| Application | |
| Compliance | |
| Operating Temperature | |
| Pressure Range | |
| Material | |
| Shape | |
| Colour | |
| Finish |
