Hitachi 3.5kW S-Series High Wall Heat Pump Split Systems RAS-S35YHAB / RAC-S35YHAB

$1,469.99$6,000.00 Incl GST (-76%)

Out of stock

  • Cooling Capacity:  3.50 kW
  • Heating Capacity:  4.00 kW
SKU: RAS-S35YHAB / RAC-S35YHAB Categories: , , , , Tag: MPN: RAS-S35YHAB / RAC-S35YHAB

Hitachi Logo - Nzdepot

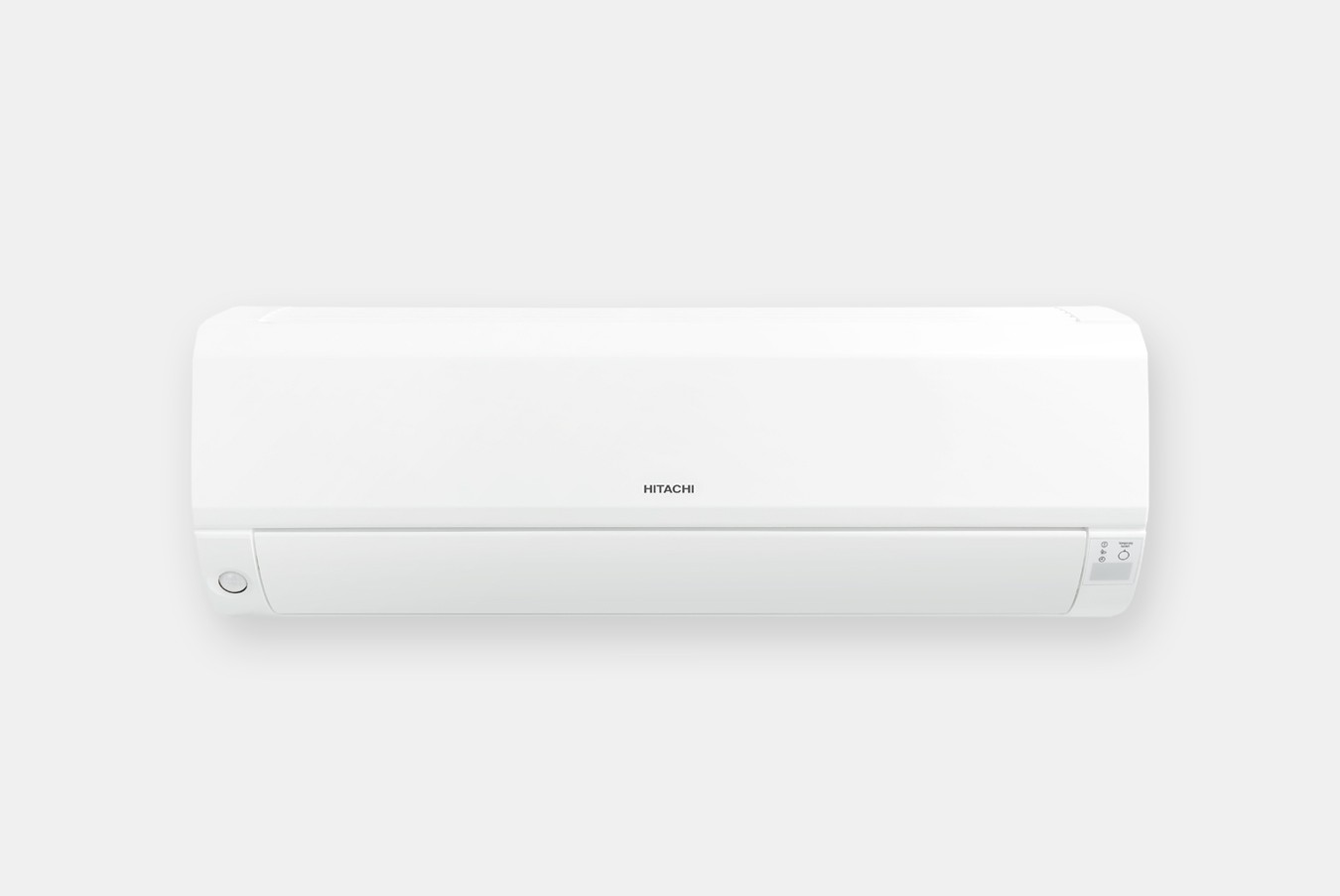

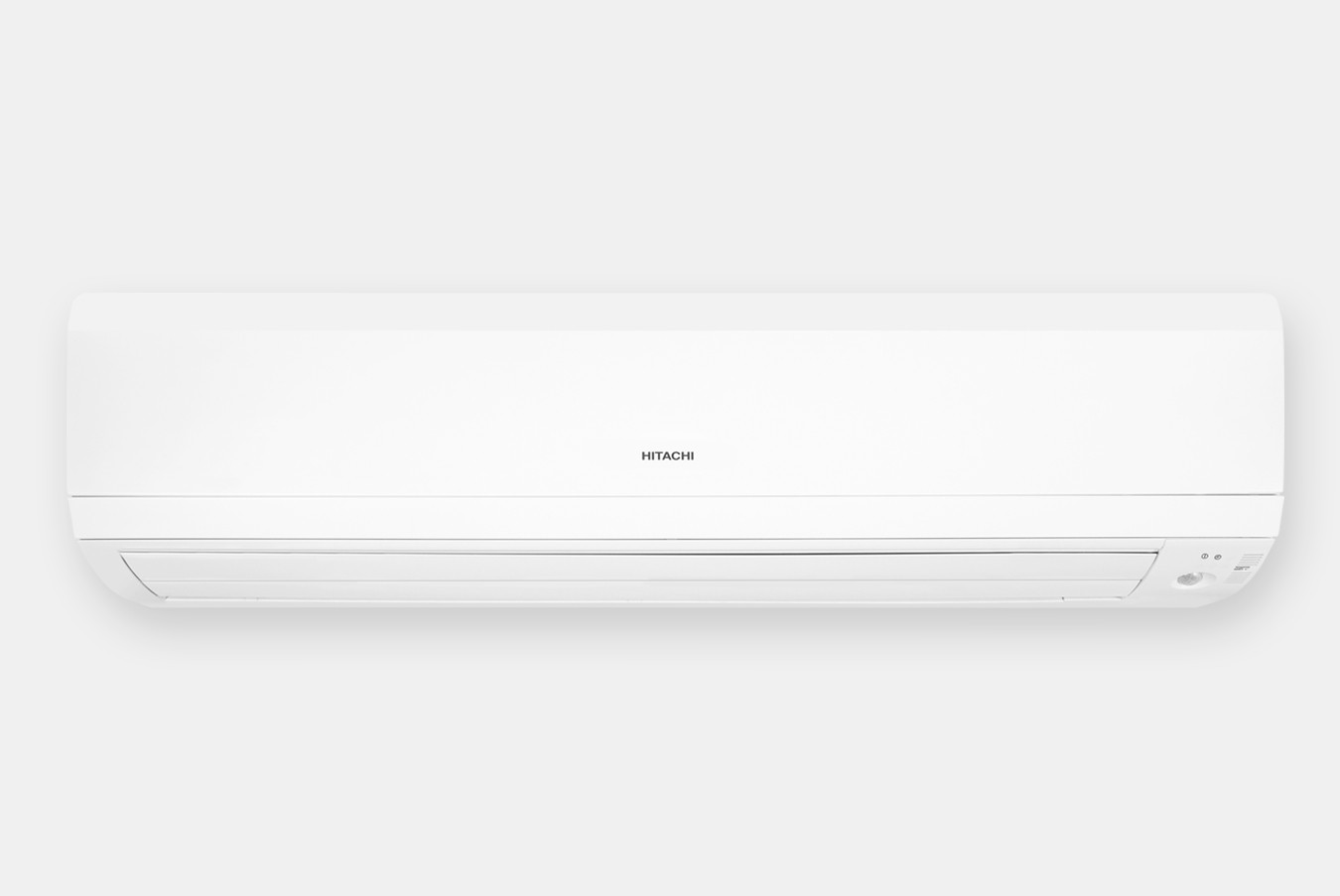

Hitachi 3.5kW S-Series High Wall Heat Pump Split Systems RAS-S35YHAB / RAC-S35YHAB

  • Cooling Capacity:  3.50 kW
  • Heating Capacity:  4.00 kW

Hitachi S Series

The premium S Series Hitachi heat pump range includes all the fantastic E Series heat pump features along with added premium features and boosted energy efficiency.

Key Features

The S Series are similar to the E Series, but includes these extra features:

  • Frost Wash Technology that provides fresher air all year round.
  • motion detect Eco mode.
  • higher efficiency (on most).
  • premium wireless controller (as standard) c/w 24/7 time clock, leave home
 function & power tracking.
  • pre-filters are higher grade Nano Titanium coated stainless type .

Note: Uses R32 Refrigerant which has lower GWP (as does the E Series) Optional airCloud Home Wifi Adaptor and airCloud App (for iOS and Android) for smart phone control from anywhere.

Features
Heat Pump Motion Sensor.
The built-in Heat Pump motion sensor detects if a room has been empty for over 20 minutes and automatically switches to energy-saving Eco Mode. Come back into the room, and the Heat Pump returns to normal. Eco Mode efficiently delivers a slightly reduced temperature to help keep Heat Pump energy consumption to a minimum.

Fresher Air with FrostWash Technology.

S Series Frost Wash Premium Heat Pumps_1


S Series Frost Wash Premium Heat Pumps_2

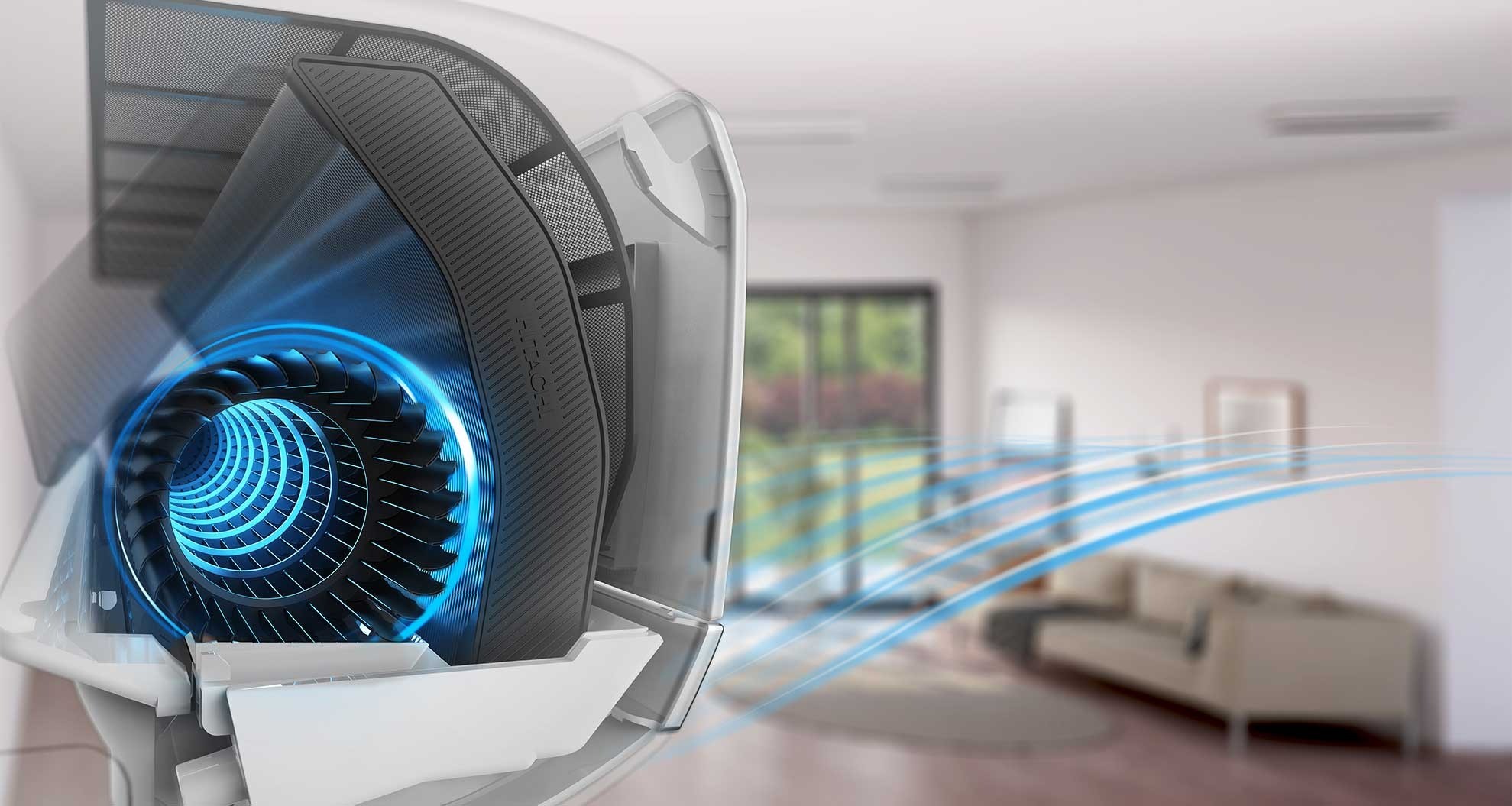

Advanced Heat Pump Air Filtration.

The S Series Heat pumps advanced air filtering system combines a Nano Stainless pre-filter with a Nano Titanium Wasabi air purifying filter to provide fresher, cleaner air. The Heat Pump filter is packed with a hybrid coating of Nano Titanium and wasabi solution which provides a powerful antibacterial, anti-mould, anti-allergen and deodorising effect, reducing bacteria and allergen levels ensuring your home is a haven for the whole family.
S Series Frost Wash Premium Heat Pumps_3


Smartphone WiFi Heat Pump Control

Installing the optional airCloud Home control module allows you to control your heat pump from your smartphone via the airCloud App. Turn your Hitachi heat pump on or off, adjust the temperature and fan speed and set custom schedules. Further information on the airCloud Home can be found here.
S Series Frost Wash Premium Heat Pumps_4


Premium Wireless Heat Pump Controller.

For the ultimate control, a premium wireless Heat Pump remote comes standard with S Series Hitachi Heat Pumps or there is an optional wired wall Heat Pump controller, both give you fantastic added functionality. Both Heat Pump controllers have an advanced 7 day timer and power consumption tracking. You’ll have complete control over your schedule and Heat Pump power usage.
S Series Frost Wash Premium Heat Pumps_5


Packed Full of Advanced Heat Pump Features.

S Series has all the fantastic features of the Standard E Series heat pumps and more: – FrostWash – airCloud Home – Eco mode – Sleep mode – Powerful mode – 4-way directional airflow – Leave home function – Track power consumption – 24/7 programmable timer – Quiet operation – Efficient DC Inverter system – Ultra low standby power
S Series Frost Wash Premium Heat Pumps_6


Industry leading 6 Year Heat Pump Warranty

An industry leading Heat Pump 6 year parts and labour warranty covers Hitachi Heat Pumps for your home and office. This offers peace of mind that your Heat Pump will perform year after year.
S Series Frost Wash Premium Heat Pumps_7


Online Heat Pump Selection Tool.

Use our online Heat Pump Selection tool to find the heat pump that best suits your heating and cooling requirements. Evaluating where you live in NZ and the size of your room will give a general idea of the correct Heat Pump required. You can then request a free home assessment orcall us direct.

1/2


Arrow Grey Left - Nz Depot



Arrow Red Right - Nz Depot

S Series Frost Wash Premium Heat Pumps_9


Whisper Quiet Heat Pumps.

With the newly improved seamless fan control system, Hitachi Heat Pumps ensure extremely quiet and smooth fan speed changes for even more comfort. At 20dBA our quietest Heat Pump noise level* is quieter than a soft whisper. (*RAS-E/S25YHAB sleep mode in heating).
S Series Frost Wash Premium Heat Pumps_10


Consumer Recommends 3.2kW & 6.0kW (heating) Hitachi Heat Pumps.

Our 3.2kW and 6.0kW (heating) S Series Hitachi Heat Pumps come with a highly regarded Consumer Recommendation. Our 3.2kW Heat Pump has received a whooping 5-star heating rating ensuring fantastic energy efficiency for your Heat Pump when you need it most.
S Series Frost Wash Premium Heat Pumps_11


Smarter air, from anywhere.

Making sure your home is at the perfect temperature for when you arrive has never been easier. Hitachi airCloud Home allows you to remotely monitor and control your Heat Pump from a single app through your smartphone for convenient temperature management.

Smart Fencing – Smart climate control that adapts to your lifestyle.

S Series Frost Wash Premium Heat Pumps_12


S Series Frost Wash Premium Heat Pumps_13


Unlock the power of FrostWash.

With airCloud Home, you can activate the FrostWash self-cleaning function while you’re away, and contribute to preserving your indoor air quality. Click here to learn more about our Hitachi Heat Pump exclusive technology.

Specification

SPECIFICATION:

MODEL
Indoor RAS-S25YHAB RAS-S35YHAB RAS-S50YHAB RAS-S60YHAB RAS-S70YHAB RAS-S80YHAB
Outdoor RAC-S25YHAB RAC-S35YHAB RAC-S50YHAB RAC-S60YHAB RAC-S70YHAB RAC-S80YHAB
Capacity kW
Nominal Cooling 2.5 3.5 5.0 6.0 7.0 8.0
Nominal Heating 3.2 3.8 6.0 7.0 8.0 9.0
Capacity (Range) kW
Cooling 0.9 – 3.1 0.9 – 4.0 1.2 – 5.8 1.2 – 6.5 1.5 – 8.0 1.5 – 8.5
Heating 0.9 – 4.2 0.9 – 4.8 1.2 – 6.8 1.2 – 8.0 1.5 – 8.5 1.5 – 9.5
Air Flow l/sec
High Cooling 142 189 258 258 283 283
High Heating 158 217 250 250 300 300
Energy Efficiency
EER 5.10 4.22 4.31 3.80 3.54 3.27
COP 5.08 4.94 4.29 4.05 4.04 3.80
Star Rating Cooling* 5.5 3.5 4.0 3.0 2.5 2.0
Star Rating Heating* 5.5 5.0 4.0 3.5 3.5 3.0
Sound Levels (dB(A))
Indoor Unit (Sound Pressure)
Cooling – Hi / Med / Lo / Sleep 40 / 33 / 24 / 22 43 / 36 / 26 / 25 46 / 41 / 36 / 28 46 / 41 / 36 / 28 47 / 42 / 36 / 30 48 / 44 / 39 / 33
Heating – Hi / Med / Lo / Sleep 41 / 34 / 23 / 20 44 / 36 / 27 / 26 46 / 41 / 36 / 28 46 / 41 / 36 / 28 47 / 42 / 36 / 30 48 / 44 / 40 / 34
Outdoor Unit
Cooling / Heating (Sound Pressure) 47 / 48 48 / 50 50 / 53 50 / 53 51 / 53 52 / 54
Sound Power 61 62 63 63 64 66
Dimensions (mm)
Indoor (W x H x D) 780 x 280 x 230 780 x 280 x 230 1100 x 300 x 260 1100 x 300 x 260 1100 x 300 x 260 1100 x 300 x 260
Outdoor (W x H x D) 792 x 600 x 299 792 x 600 x 299 850 x 750 x 298 850 x 750 x 298 850 x 800 x 298 850 x 800 x 298
Weights (kg)
Indoor / Outdoor 8.5 / 37.5 8.5 / 37.5 15 / 50 15 / 50 15 / 52 15 / 52
Operating Range
Outdoor Op. Temp. (Cooling) -10°C to 46°C               -10°C to 46°C               -10°C to 46°C               -10°C to 46°C               -10°C to 46°C               -10°C to 46°C
Outdoor Op. Temp. (Heating) -20°C to 21°C               -20°C to 21°C                -15°C to 24°C                -15°C to 24°C                -15°C to 24°C                -15°C to 24°C
Refrigerant Type
                                                                                             R32
Pipe Sizes (mm) Ø6.35 / Ø9.52              Ø6.35 / Ø9.52              Ø6.35 / Ø12.7               Ø6.35 / Ø12.7               Ø6.35 / Ø15.88            Ø6.35 / Ø15.88
Refig pre charge length (m) 20                                     20                                     30                                     30                                     30                                     30
Min / Max Pipe Length / Lift (m) 3 / 20 / 10                      3 / 20 / 10                      3 / 30 / 20                      3 / 30 / 20                      3 / 30 / 20                      3 / 30 / 20
Condensate Drain (mm (OD))
                                                                                             16
Power
Power Supply
                                                                      230 – 240 Volt / 50 Hz / 1 Phase
Rated Power Input – Cooling (kW) 0.49                                  0.83                                 1.16                                  1.58                                 1.98                                 2.45
Power Input Range – Cooling (kW) 0.25 ~ 1.22                    0.25 ~ 1.4                       0.3 ~ 2.6                         0.3 ~ 2.6                         0.3 ~ 2.7                          0.3 ~ 2.7
Rated Power Input – Heating (kW) 0.63                                 0.77                                  1.40                                 1.73                                  1.98                                 2.37
Power Input Range – Heating (kW) 0.25 ~ 1.2                       0.25 ~ 1.6                       0.3 ~ 2.65                       0.3 ~ 2.65                       0.5 ~ 2.8                         0.5 ~ 2.8
Running current (C / H) (Amps) 1.09-5.30 / 1.09-5.22    1.09-6.09 / 1.09-6.96    2.31-8.55 / 1.67-9.66     2.31-8.55 / 1.67-9.66     2.50-9.79 / 2.19-10.72   2.50-9.79 / 2.19-10.72
Max Current (Amps) 9.8                                    9.8                                    10.5                                  10.5                                  12                                     12
Power supply To
                                                                                    Outdoor Unit
Interconnecting Wire
                                                                                        3 Core + E
  Rated capacity measured in accordance with AS/NZS 3823 conditions: Cooling: Indoor 27°C db / 19°C wb: Ambient 35°C db
  Heating: Indoor 20°C db: Ambient 7°C db / 6°C wb.
  Mains power source – AC 230V and 50Hz.
  Refer to temperzone Warranty for full conditions.
  *Star Ratings based on 2013 GEMS determination.
Warranty & Downloads
Downloads

Documentation

Manuals, brochures and other product literature. If you need any more information, please get in touch.

Warranty:

6 years parts and labour warranty when installed by an authorised Hitachi Dealer.
*Terms and Conditions apply.

Installation & Warranty Claims Note:

Installation must be undertaken by a professional licensed Aircon technician or/and Electrician.



Additional information

Weight 8.5 kg
Dimensions 280 × 780 × 230 mm
Cooling Capacity (kWs)
Heating Capacity (kWs)
MPN

Series
