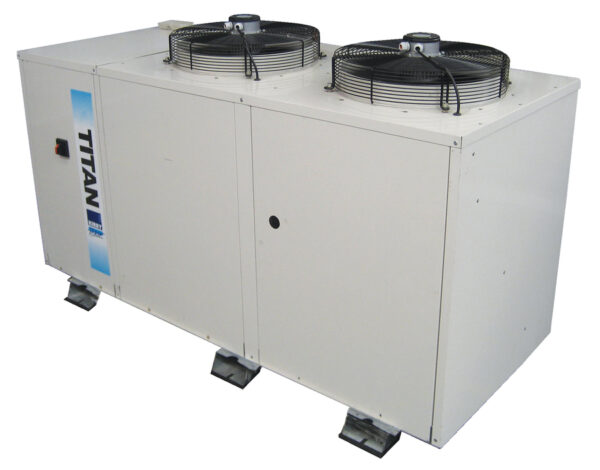

TitanPack 283MHA1 – Condensing Units – CK4276

General
Product Group : Outdoor Hermetic Condensing Units
Additional Info
Crankcase Heater Provided : Yes
Family : Kirby Titan
HP Control Device Provided : Yes
Liquid Line Fitted With Shut Off Valve : Yes
Liquid Line Provided : Yes
Suction Valve Provided : Yes
Air Volume/Air Flow
Air Flow : 3735 L/s
Compressor
Compressor Model : MTZ160-4VM
Compressor Type : Hermetic
Number Of Compressors : 1
Number Of Phases (Compressor) : 3
Power Supply Compressor : 380-400/3/50 V/Ph/Hz
Connections
Pipe Diameter Gas Side : 1-3/8 in
Pipe Diameter Liquid Side : 7/8 in
Cooling Capacity R134a
R134a Cooling Capacity Rated -15°C : 10.400 kW
Cooling Capacity R448A
R448A Cooling Capacity Rated -10°C : 20.370 kW
R448A Cooling Capacity Rated 0°C : 29.905 kW
R448A Cooling Capacity Rated 5°C : 35.445 kW
Electrical
LRA : 144.7 A
MCC : 40.7 A
Max Power Input : 13100 W
Power Supply : 380/3/50 V/Ph/Hz
RLA : 24.2 A
Fan
Fan Blade Size : 450 mm
Fan Diameter : 450 mm
Number Of Fans : 3
Measurements
Depth : 840 mm
Height : 1094 mm
Net Weight : 335 kg
Width : 3413 mm
Oil
Oil Type : POE
R134A Performances
R134a Cooling Capacity Rated -5°C : 17.035 kW
R134a Cooling Capacity Rated -10°C : 13.480 kW
R134a Cooling Capacity Rated 0°C : 21.065 kW
R134a Cooling Capacity Rated 5°C : 25.56 kW
Sound Power/Pressure
Sound Power at 50 Hz : 81.5 dB(A)
Switch
HP Safety Switch Provided : Yes
LP Safety Switch Provided : Yes

, Condensing Units, CAPITAL PLANT. – CK4276

Downloads:

Brochure Technical Literature User Manual Conformity Certification Installation Manual Data Book Safety Data Sheet
