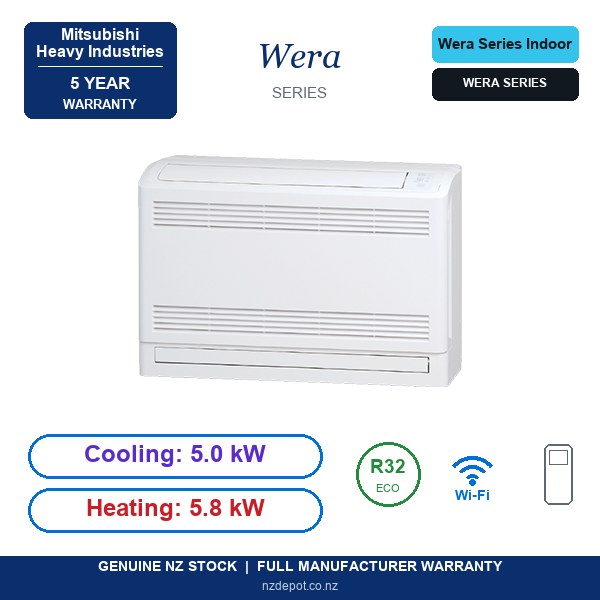

Mitsubishi Heavy Industries 5.0kW WERA™ SERIES SRF50ZSX-W Floor Console Air Conditioner

  • 17
    ( 17 Reviews )
  • SKU: SRF50ZSX-W
Mitsubishi Heavy Industries 5.0Kw Wera™ Series Srf50Zsx W Floor Console Air Conditioner Nz Depot 2
Mitsubishi Heavy Industries 5.0Kw Wera™ Series Srf50Zsx W Floor Console Air Conditioner Nz Depot
Srf50Zmxa S Lifestyle 1 150X150 1
-50%
Roll over image to zoom in
Click to open expanded view

$2,479.99$5,000.00 Incl GST (-50%)

In stock

or from $979.99 today & 5 weekly interest-free payments of $300.00 with Laybuy

Cooling Capacity:  5.00 kW

Heating Capacity: 6.00 kW

Purchase & earn 2,480 points!
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: SRF50ZSX-W Categories: , , ,

Mitsubishi Heavy Industries Logo - Nzdepot

Mitsubishi Heavy Industries 5.0kW WERA™ SERIES SRF50ZSX-W Floor Console Air Conditioner

Cooling Capacity:  5.00 kW

Heating Capacity: 6.00 kW

Powerful yet quiet, the Wera™ floor console heat pump is perfect for rooms where wall space is limited.

With the ability to select air outlets, and high performance in low temps and high power modes to deliver rapid heating, the Wera™ series is the perfect solution for keeping small, limited spaces comfortable in all seasons.

ENERGY LABELS

Hot Cooling 4 stars
Heating 3 stars
Average Cooling 3 stars
Heating 3 stars
Cold Cooling 3 stars
Heating 2 stars



DIMENSIONS

Indoor 600x860x238mm
Outdoor 640×800(+71)x290mm

KEY FEATURES

  • High performance in low temps
  • Air Outlet selection for ultimate airflow control
  • Allergen clear system to capture allergens such as hair, pollen and dust and neutralise bacteria, mould and viruses
  • Hi Power mode for rapid heating and cooling
  • Optional Wi-Fi control
Features

ENERGY SAVING

FUZZY AUTO MODE
Using fuzzy logic algorithms, the unit determines the operating mode and temperature settings automatically and adjusts the inverter frequency.

ECO MODE
The unit operates at a slightly reduced capacity to reduce power consumption while maintaining a comfortable room temperature.

AIR FLOW

AUTO LOUVRE MODE
Depending on whether the unit is in heating or cooling mode this will automatically set the louvre at the optimum angle for even air distribution.

MEMORY LOUVRE
Set the louvre at the desired angle. The unit will automatically return the louvres to this position on every subsequent start-up.

UP/DOWN LOUVRE SWING
The horizontal louvres will automatically swing up and down for even air distribution.

AIR OUTLET SELECTION
Select whether the airflow is distributed via the upper outlet, the lower outlet or both.

CLEAN AIR

SELF-CLEAN OPERATION
Dries the indoor unit and filter, preventing the growth of mould. Designed to be run regularly after use.

PHOTOCATALYTIC DEODORIZING FILTER
Easy-to-clean filter that catches airborne allergens and particles before neutralising odour-causing bacteria within them.

REMOVABLE COVER
Removable front cover allowing access for easy cleaning and maintenance.

COMFORT & CONVENIENCE

DRY OPERATION
Reduces humidity by removing moisture from the air without affecting the indoor temperature.

HI POWER OPERATION
Provides 15mins of boosted power to quickly heat or cool your home before returning to normal operation. Perfect for when you first turn on it the unit. Note: For FDE, FDT, FDTC, FDUA, and FDUM series can only be enabled using the RC-EX3 wired controller.

SILENT OPERATION
Set periods of time where the unit will operate with reduced noise levels, perfect for nighttime and uninterrupted sleep.

NIGHT SETBACK
Designed for the colder seasons, this function ensures the room temperature is kept at around 10˚C, even while unoccupied.

WEEKLY TIMER
Set your unit to turn on and off at specific times for each day of the week to suit your needs.

SLEEP TIMER
Set a pre-determined amount of time between 30 and 240 mins that your unit will operate before switching off.

ON/OFF TIMER
Set your unit to turn on and off once, at specific times, within a 24-hour period. The unit will then turn on and off at the specified times every day.

COMFORT START-UP
When using the ON-TIMER function, the unit will switch on slightly earlier than the SET time, to ensure the optimum temperature is reached at the ON TIME.

CHILD LOCK
Lock the remote control to prevent little ones from changing functions and other settings. Useful for families with curious young children.

MAINTENANCE

MICROCOMPUTER-OPERATED DEFROSTING
Automatically activated during low ambient temperatures to prevent the frosting of the outdoor heat exchanger.

SELF-DIAGNOSTICS
In the unlikely event of a fault, the internal microcomputer automatically runs a diagnostic of the system. This enables a service agent to quickly isolate and repair any issues.

AUTO RESTART FUNCTION
If there is a temporary loss of power when power is restored, the unit will automatically restart in the same operating mode it was in.

Control Options

WIRELESS

Srf Zmxa S Wireless - Nz Depot

DOWNLOAD USER MANUAL

WIRELESS REMOTE

  • Use the Mode button to select from Cool, Heat, Dry, or Fan Only operation or let the unit do it automatically when you select the Auto option.
  • Activate Hi-Power mode to achieve the desired room temperature faster.
  • Activate the Allergen Clear function with a simple click of a button. Run for approximately 90 minutes, this program is designed to eliminate the allergens commonly found in the room air and effectively lock them away from your airflow.
  • For maximum comfort, easily adjust Airflow Direction in your room by simply pressing U/D (up / down) button.
  • By combining a start timer with a stop timer, you can register up to 4 timer operations a day (max 28 per week). Once set, the Weekly Timer will faithfully start or stop the system at a specified time of the day repeatedly.
  • Use the Child Lock function to disable the controller and prevent inadvertent changes to the control settings from the youngest members of the family.
  • Enable Night Setback to maintain your room temperature during cold conditions, even when the room is unattended.

For more information on the functions available and how to access them on your remote control, please refer to your unit’s user manual.

WI-FI

Intensishome App On Smartphone For Wi-Fi Control Of Mhiaa Split System Air Conditioners

DOWNLOAD USER MANUAL

WI-FI

Control your system using your smart device (iPhone, iPad) or internet browser via to easy to use IntesisHome app.

  • Control the set temperature, operation mode and fan speed.
  • Control your system via your Google or Amazon smart speaker device.
  • Control your system using Voice Command.
  • Set up ‘favourite’ scenes and activate them with a single tap.
  • Set your system to respond to the weather, you arrive home, calendar events + more**.
  • Receive instant notifications and email updates and create usage logs**.

*Wi-Fi control requires an MH-AC-WIFI-1 Wi-Fi adaptor (sold separately)
**In conjunction with IFTTT and other apps (must be downloaded separately).
***Some additional functions may not be available via the IntesisHome app.

Specification
CAPACITY 2.5kW 3.5kW 5.0kW
Indoor SRF25ZS-W SRF35ZS-W SRF50ZSX-W
Outdoor SRC25ZSA-W SRC35ZSA-W SRC50ZSXA-W
Power Source (Outdoor Unit) 1 Phase 240V 50Hz
*Operation Data Nominal Capacity (Range) Cooling T1 kW 2.5 (0.9-3.2) 3.5 (0.9-4.1) 5.0 (1.1-5.6)
Heating H1 3.4 (0.9-4.7) 4.5 (0.8-5.2) 6.0 (0.8-7.4)
Heating H2 3.45 3.80 5.60
Power Consumption Cooling T1 0.50 (0.17-0.82) 0.82 (0.18-1.33) 1.32 (0.19-1.90)
Heating H1 0.74 (0.19-1.29) 1.12 (0.19-1.53) 1.58 (0.19-2.34)
Maximum Power Consumption 1.65 1.65 2.90
Running Current Cooling T1 A 2.5 3.7 5.6
Heating H1 3.4 4.9 6.6
Inrush Current, Maximum Current 3.6, 9.0 5.0, 9,0 5.0, 15.0
EER Cooling T1 5.00 4.27 3.79
COP Heating H1 4.59 4.02 3.80
Sound Power Level (JIS C9612) Outdoor dB(A) 60 63 63
Sound Pressure Level (JIS C9612) Indoor 37-32-29-26 40-35-33-29 46-38-33-28
Outdoor 46 50 51
Energy Label (GEMS 2019) Hot Cooling Stars
(4)
(4)
(3.5)
Heating
(3.5)
(3)
(3)
Average Cooling
(3.5)
(3.5)
(3)
Heating
(3)
(2.5)
(2.5)
Cold Cooling (3.5) (3.5) (3)
Heating
(2.5)
(2) (2)
External dimensions (HXWXD) Indoor mm 600x860x238 600x860x238 600x860x238
Outdoor 540×780(+62)x290 540×780(+62)x290 640×800(+71)x290
Net weight Indoor kg 18 19 19
Outdoor 34.5 34.5 45
Airflow Cooling (Indoor) l/s 150-126-111-96 153-130-121-106 192-160-123-110
Heating (Indoor) 175-136-128-110 178-138-135-123 200-167-157-127
Installation Data Refrigerant (Type, Amount, Pre-charge Length) Quantity kg (R32) 0.78 (R32) 0.78 (R32) 1.30
Pre-Charged to
Pipe		 m 15 15 15
Refrigerant Piping Liquid line mm Ø6.35 (1/4”) Ø6.35 (1/4”) Ø6.35 (1/4”)
Gas line Ø9.52 (3/8”) Ø9.52 (3/8”) Ø12.7 (1/2”)
Connection Method Flare connection
Maximum Pipe Length (One Way) m 20 30
Max Vertical Height Diff. Between O.U. and I.U. 10 ( O.U. above I.U. ) / 10 ( O.U. below I.U. ) 20 ( O.U. above I.U. )  / 20 ( O.U. below I.U. )
Standard accessories Allergen Clear & Photocatalytic Washable Deodorizing Filter
Optional parts Interface kit (SC-BIKN2-E) / Wi-Fi Kit
Demand Response (AS4755) Yes Yes Yes
Split System Sizing Chart
Split System Sizing Chart
A Class
Well insulated newly Build home in warmer regions		 B Class
Insulated roof space, walls and sub floor with average size windows
C Class
Partially insulated: Ceiling and/or floor insulation with large windows		 D Class
Little or no insulation with large windows in colder regions
Selection Chart for Cooling and Heating Room Class
Model Capacity (kW) A B C D
Maximum Floor Area (m2)
Avanti PLUS®  (SRK20ZSXA-W)
Avanti®  (SRK20ZSA-W / DXK06ZSA-W)		 2.0 Cooling 23 20 18 17
2.7 Heating 20 18 16 14
Avanti PLUS®  (SRK25ZSXA-W)
Avanti®  (SRK25ZSA-W / DXK09ZSA-W)		 2.5 Cooling 28 24 21 19
3.2 Heating 22 20 19 17
Akari™ SRR-ZS (SRR25ZS-W) Wera™ SRF-ZS (SRF25ZS-W) 2.5 Cooling 28 24 21 19
3.4 Heating 23 21 19 17
Avanti PLUS®  (SRK35ZSXA-W) 3.5 Cooling 39 33 29 27
4.3 Heating 32 28 25 22
Avanti®  (SRK35ZSA-W / DXK12ZSA-W) 3.5 Cooling 39 33 29 27
3.7 Heating 28 25 23 20
Akari™ (SRR35ZS-W) 3.5 Cooling 39 33 29 27
4.2 Heating 32 29 26 21
Wera™ (SRF35ZS-W) 3.5 Cooling 39 33 29 27
4.5 Heating 33 31 27 23
Avanti PLUS®  (SRK50ZSXA-W) 5.0 Cooling 55 48 41 35
6.0 Heating 42 38 35 31
Avanti®  (SRK50ZSA-S / DXK18ZSA-W) 5.0 Cooling 55 48 41 35
5.8 Heating 41 37 34 30
Wera™ (SRF50ZSXA-W) 5.0 Cooling 55 48 41 35
6.0 Heating 42 38 35 31
Avanti PLUS®  (SRK60ZSXA-W) 6.1 Cooling 66 55 49 41
6.8 Heating 50 46 42 36
Bronte®  (SRK63ZRA-W / DXK21ZRA-W) 6.3 Cooling 68 57 51 42
7.1 Heating 52 48 42 38
Bronte®  (SRK71ZRA-W / DXK24ZRA-W) 7.1 Cooling 78 65 57 48
8.0 Heating 58 52 48 42
Bronte®  (SRK80ZRA-W / DXK28ZRA-W) 8.0 Cooling 88 72 63 52
9.0 Heating 64 59 52 47
Bronte®  (SRK95ZRA-W / DXK33ZRA-W) 9.5 Cooling 103 85 74 62
10.3 Heating 72 67 61 56
Bronte®  (SRK100AVNAWZR) 10.0 Cooling 107 91 81 71
11.2 Heating 82 78 72 62
* This guide has been developed to assist in heat pump selection for the majority of normal residential homes with a standard ceiling height of 2.4m, as per AS/NZS 3823 performance data. MHI recommends a heat load survey should be conducted by a qualified licensed installer. For R32 systems,
minimum installation area for indoor units and other AU/NZS Standards apply. Products are to be installed by a qualified licensed person only.
Warranty & Downloads

Warranty: 60 months manufacturer’s warranty included

SPLIT SYSTEM HEAT PUMP BROCHURE
USER MANUAL SRF-ZMXA SERIES (SRF25ZMXA-S, SRF35ZMXA-S, SRF50ZMXA-S)
Installation & Warranty Claims Note: Installation must be undertaken by a professional licensed Aircon technician or/and Electrician.

Additional information

Weight 19 kg
Dimensions 860 × 600 × 238 mm
Cooling Capacity (kWs)
Heating Capacity (kWs)
