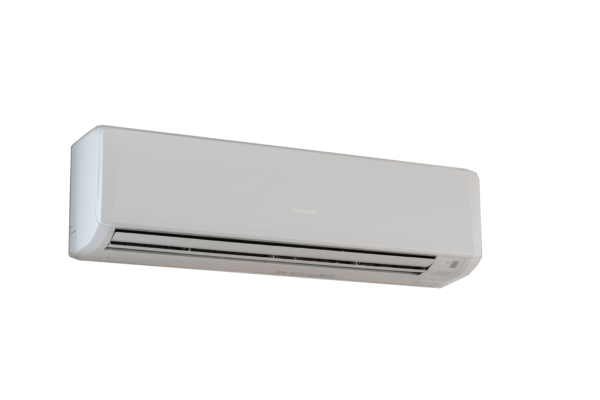

MHI BRONTE 9.5KW SRK95ZRA-W – Hi-Walls, Air Conditioning Units, AIR CONDITIONING

  • SKU: AC3077/I
MHI BRONTE 9.5KW SRK95ZRA-W - Hi-Walls
Out Of Stock
Roll over image to zoom in
Click to open expanded view

$1,062.50$2,380.00 (-55%)

Out of stock

SKU: AC3077/I Categories: , , , Tags: , , ,

General Information
Product Group : High Wall
Condensate Water Pump Provided : No
Pre-Equipped Wifi : No
Remote Control : Yes
Additional Info
Indoor/ Outdoor/ Other : Indoor
Single Split / Multi Split : Single Split
Air Volume/Air Flow
Air Flow : 1278 m³/h
Capacity
Cooling Capacity : 9.5 kW
Cooling Capacity (Min/Rated/Max) : 2.5/9.5/10.6 kW
Heating Capacity : 10.3 kW
Heating Capacity (Min/Rated/Max) : 3.2/10.3/11.9 kW
Heating Capacity Min/Max : 3.2/11.9 kW
Connections
Pipe Diameter Gas Side : 15.88 mm
Pipe Diameter Liquid Side : 9.52 mm
Cooling Capacity R32
R32 Cooling Capacity Max : 10.6 kW
R32 Cooling Capacity Min : 2.5 kW
R32 Cooling Capacity Rated : 9.5 kW
Description
Short Description : MHI BRONTE 9.5KW SRK95ZRA-W Indoor
Electrical
Input (Cooling) : 2.56 kW
Input (Heating) : 2.64 kW
Max Current : 17.5 A
Power Input (Heating/Cooling) : 2.64/2.56 kW
Power Supply : 230/1/50 V/Ph/Hz
Voltage : 230 V
Voltage 50Hz : 230 V
Energy Efficiency/Performance
COP : 3.90
EER : 3.71
Energy Label (Cooling) : 3 Average
Energy Label (Heating) : 2.5 Average
Heating Capacity R32
R32 Heating Capacity Max : 11.9 kW
R32 Heating Capacity Min : 3.2 kW
R32 Heating Capacity Rated : 10.3 kW
Indoor Unit Attributes
Depth (IU) : 262 mm
Height (IU) : 339 mm
Net Weight (IU) : 16.5 kg
Width (IU) : 1197 mm
Pipes
Max Height Difference : 20 m
Max Pipe Length Without Additional Refrigerant : 15 m
Max Piping Length : 30 m
Pipe Dimension : 9.52 x 15.88 mm
Power Input R32
R32 Power Input Rated Cooling : 2.56 kW
R32 Power Input Rated Heating : 2.64 kW
Refrigerant
Refrigerant : R32
Refrigerant Charge : 2.0 kg
Refrigerant Pipe Size : 9.52×15.88 mm
Sound Power/Pressure
Sound Pressure Level (Low/Medium/High/Quiet) : 40/45/48/26 dB(A)

Hi-Walls, Air Conditioning Units, AIR CONDITIONING.

Downloads:

Brochure Technical Literature User Manual Conformity Certification Installation Manual Data Book Safety Data Sheet
