Hitachi 7.0kW E-Series High Wall Heat Pump Split Systems RAS-E70YHAB / RAC-E70YHAB

$2,219.99$8,000.00 Incl GST (-72%)

Available on backorder

or from $719.99 today & 5 weekly interest-free payments of $300.00 with Laybuy

  • Cooling Capacity:  7.00 kW
  • Heating Capacity:  8.00 kW
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: RAS-E70YHAB / RAC-E70YHAB Categories: , , , , Tag:

Hitachi logo - NZDEPOT

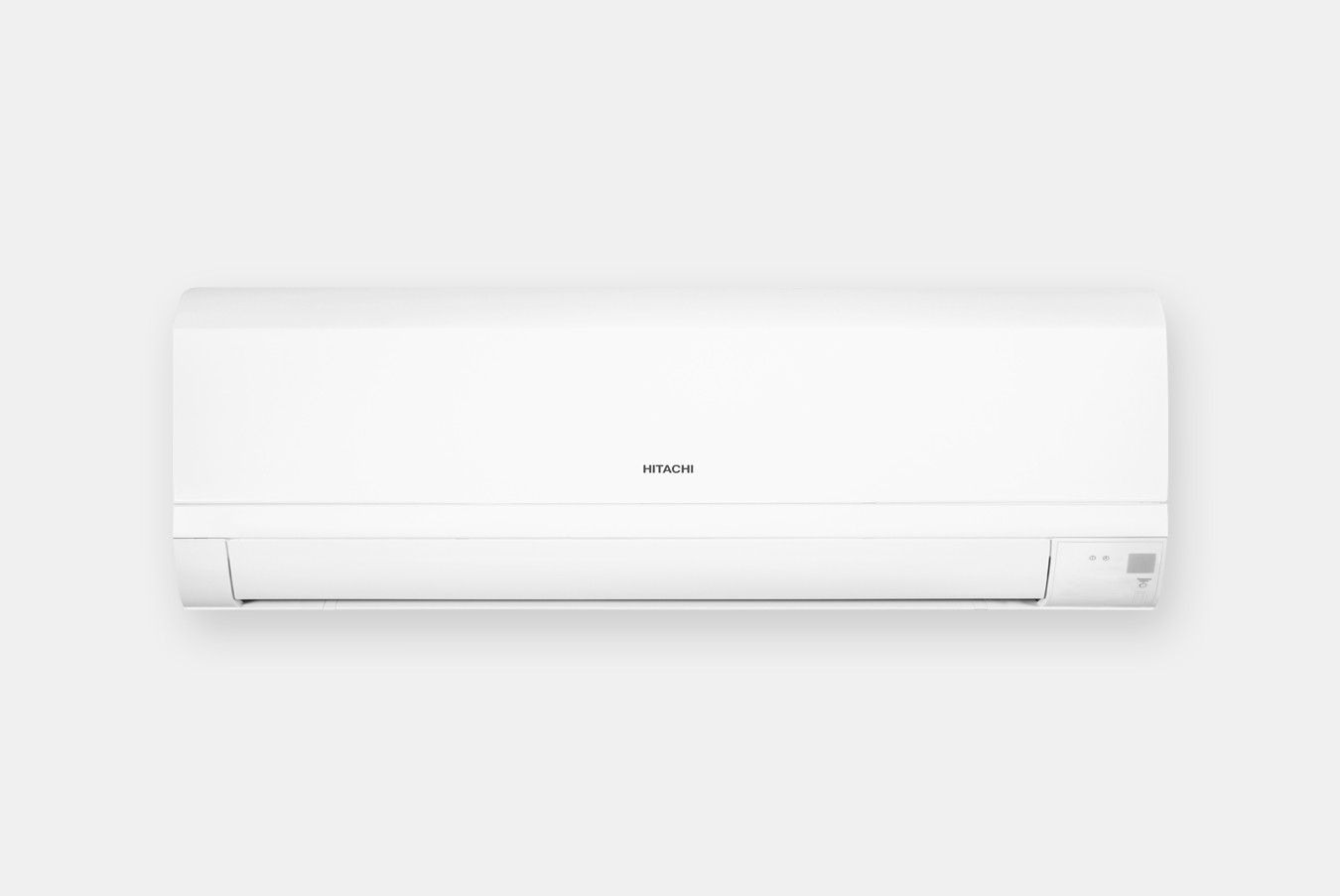

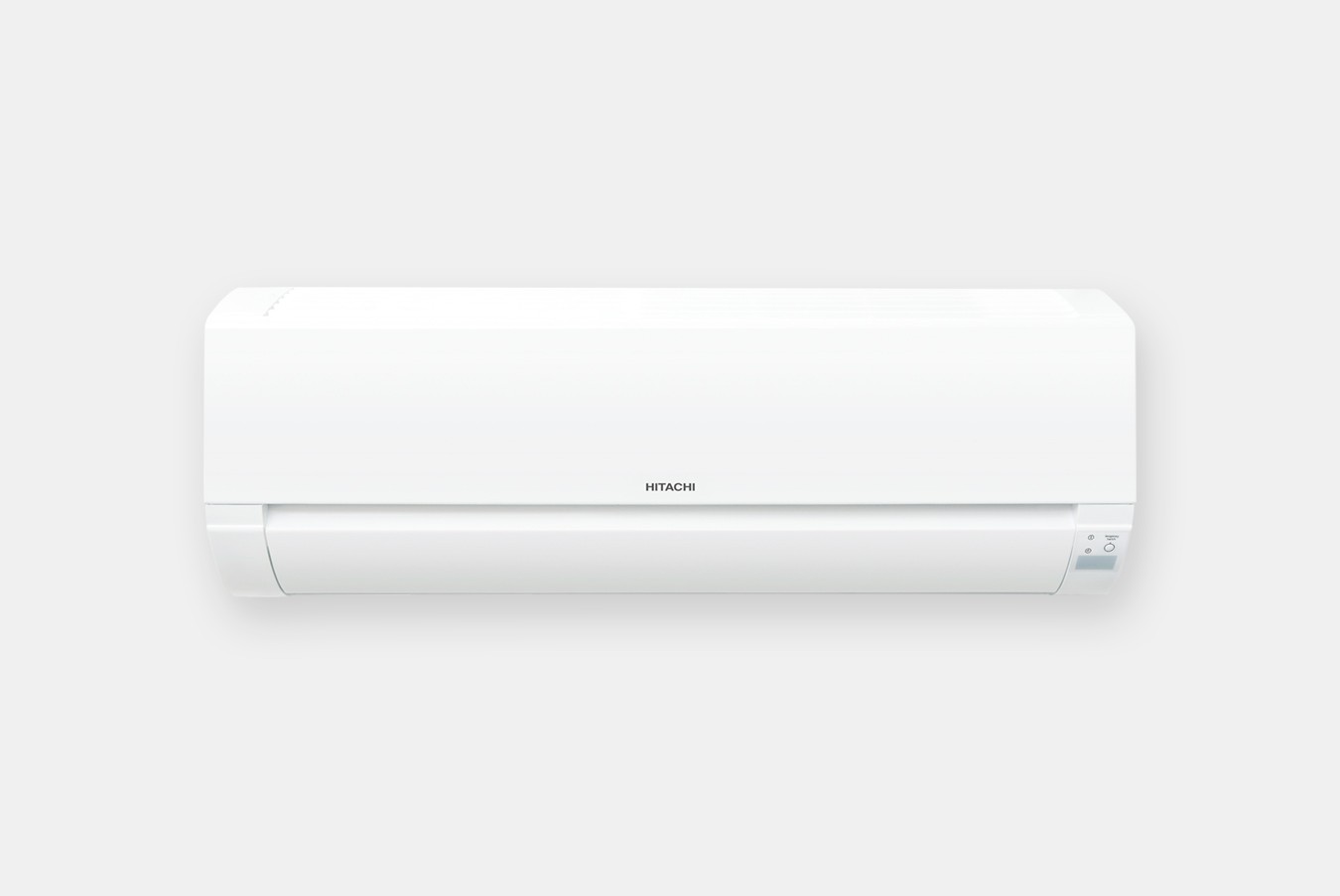

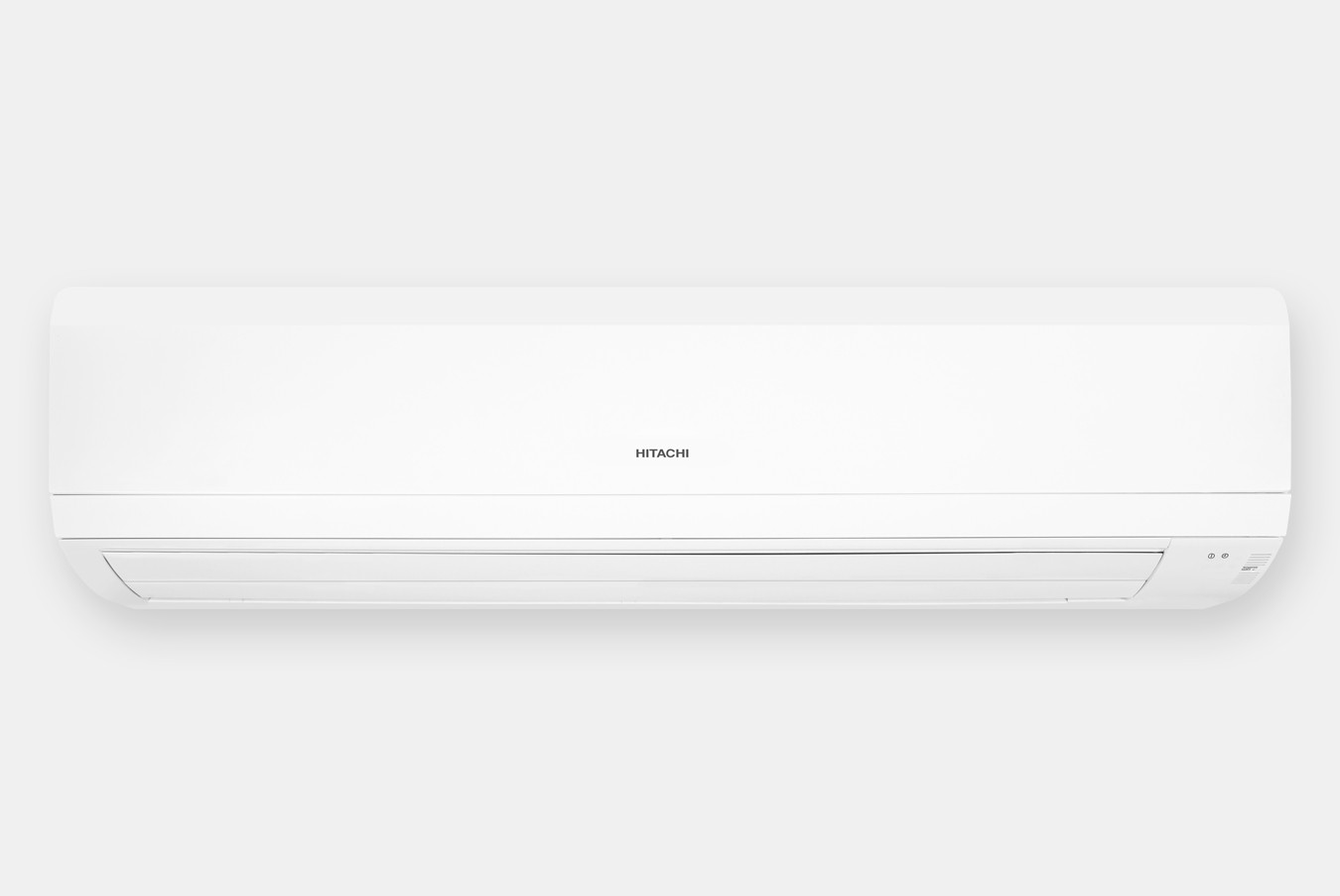

Hitachi 7.0kW E-Series High Wall Heat Pump Split Systems RAS-E70YHAB / RAC-E70YHAB

  • Cooling Capacity:  7.00 kW
  • Heating Capacity:  8.00 kW

Hitachi E Series

Efficient and sleek heat pump design with flexible features that provide comfort all year round. E series Hitachi heat pumps offer a contemporary solution for all applications.

Key Features

  • Frost wash (manual) for indoor coil cleaning

Optional airCloud Home Wifi Adaptor and airCloud App (for iOS and Android) for smart phone control from anywhere.

Features
E Series Heat Pumps_0


Energy Saving Heat Pump Features.

At the push of a button, Eco Mode efficiently delivers a slightly reduced temperature to help keep Heat Pump energy consumption to a minimum. Sleep mode gently adapts fan speed and temperature to provide draft free, energy efficient Heat Pump comfort while you sleep. Hitachi E Series Heat Pumps have Ultra Low Standby Power to further increase Heat Pump energy efficiency.

Fresher Air with Hitachi Heat Pumps.

E Series Heat Pumps_1


E Series Heat Pumps_2


Wifi Control for your Hitachi Heat Pump.

Installing the optional airCloud Home wifi controller module will allow you to control your Heat Pump using a smartphone or tablet. Operate your Heat Pump from home or remotely, adjusting temperature, fan speed and setting custom schedules. airCloud is also compatible with Google Alexa and Amazon Echo smart speakers, so you can operate your Heat Pump using voice commands. Further information on the airCloud Home can be found here.
E Series Heat Pumps_3


Unlock the power of FrostWash.

With airCloud Home, you can activate the FrostWash self-cleaning Heat Pump function while you’re away, and contribute to preserving your indoor air quality. Click here to learn more about our Hitachi Heat Pump exclusive technology.
E Series Heat Pumps_4


4-Way Directional Heat Pump Airflow.

The Heat Pump louvers move up and down, and left to right. This action allows the Heat Pump to disperse air over a much wider range to warm or cool the room efficiently and evenly. Hitachi Heat Pump Louvers can be set in any airflow direction to precisely control your comfort.
E Series Heat Pumps_5


Rapid Heat Pump Heating & Cooling in any Weather.

Powerful Mode will run your Heat Pump at maximum output for 20-minutes projecting airflow further and faster to cool or heat a room rapidly. Hitachi Heat Pumps can operate in outside temperatures down to as low as -15˚C and as high as 46˚C ensuring you stay comfortable when you need it.
E Series Heat Pumps_6


Whisper Quiet Heat Pumps.

Hitachi Heat Pumps have the newly improved seamless fan control system. Our Heat Pumps enssure extremely quiet and smooth fan speed changes for even more comfort. At 20dBA our quietest Heat Pump noise level* is quieter than a soft whisper. (*RAS-E/S25YHA sleep mode in heating)
E Series Heat Pumps_7


Industry Leading 6 Year Heat Pump Warranty.

An industry leading Heat Pump 6 year parts and labour warranty covers Hitachi Heat Pumps for your home and office. This offers peace of mind that your Heat Pump will perform year after year.
E Series Heat Pumps_8


Advanced Heat Pump Control Options.

For the ultimate Heat Pump control, an optional premium wireless remote or wired wall controller will give you added functionality beyond the standard wireless Heat Pump remote. Both Heat Pump controls feature an advanced 7 day timer and power consumption tracking , giving you complete control over your schedule and Heat Pump power usage.
E Series Heat Pumps_9


Online Heat Pump Selection Tool

Use our online Heat Pump Selection tool to find the Heat Pump that best suits your room heating and cooling requirements. Evaluating where you live in NZ and the size of your room will give a general idea of the correct Heat Pump Size required. You can then request a free in-home Heat Pump assessment or call us direct.

1/3


arrow grey left - NZ DEPOT



arrow red right - NZ DEPOT

E Series Heat Pumps_11


Incorporating the Power of FrostWash Technology*.

The new Hitachi Heat Pump ‘E’ Series range of split systems offers many innovative Heat Pump features. These Heat Pump features range from enhanced energy efficiency to airflow control and ultra-quiet operation. Because air is always travelling across the surface of the heat exchanger, dust mould and bacteria can accumulate, leading to reduced performance and perceivable odours coming from your Heat Pump. Keeping the heat exchanger clean is the key to better quality air and efficiency of your Heat Pump. The new ‘E’ series Heat Pump incorporates manual initiation of our FrostWash self-cleaning technology. FrostWash addresses an issue that had long stumped the air conditioning industry – how to effectively and efficiently clean the inside of Heat Pumps. *RAS-E50YHA excludes manual FrostWash
E Series Heat Pumps_12


Sleek Wireless Heat Pump Controller*.

For the ultimate climate control from your Heat Pump, Hitachi’s standard wireless remote controller will give you complete control of your comfort. – 12-hour timer – Eco Mode – Manual FrostWash operation – Sleep mode – Powerful mode – Louvre position – Fan speed – Mode setting *RAS-E50YHA controller varies form that shown

Smart Fencing – Smart climate control that adapts to your lifestyle.

E Series Heat Pumps_13


Specification

SPECIFICATION:

MODEL
Indoor RAS-E25YHAB RAS-E35YHAB RAS-E50YHA* RAS-E60YHAB RAS-E70YHAB RAS-E80YHAB
Outdoor RAC-E25YHAB RAC-E35YHAB RAC-E50YHA RAC-E60YHAB RAC-E70YHAB RAC-E80YHAB
Capacity kW
Nominal Cooling 2.5 3.5 5.0 6.0 7.0 8.0
Nominal Heating 3.2 4.0 6.0 7.0 8.0 9.0
Capacity (Range) kW
Cooling 1.0 – 3.2 1.0 – 4.0 1.2 – 5.8 1.2 – 6.5 1.5 – 8.0 1.5 – 8.5
Heating 1.0 – 4.5 1.0 – 5.0 1.2 – 6.8 1.2 – 8.0 1.5 – 8.5 1.5 – 9.5
Air Flow l/sec
High Cooling 142 189 242 250 320 340
High Heating 158 217 221 250 330 350
Energy Efficiency
EER 4.55 3.85 3.38 3.33 3.41 3.27
COP 4.71 4.30 4.05 3.83 4.04 3.80
Sound Levels (dB(A))
Indoor Unit (Sound Pressure)
Cooling – Hi / Med / Lo / Sleep 40 / 33 / 24 / 22 43 / 36 / 26 / 25 47 / 39 / 33 / 26 49 / 42 / 33 / 30 49 / 44 / 39 / 33 50 / 44 / 39 / 33
Heating – Hi / Med / Lo / Sleep 41 / 34 / 23 / 20 44 / 36 / 27 / 26 47 / 39 / 33 / 26 49 / 42 / 34 / 33 49 / 44 / 39 / 33 49 / 44 / 39 / 33
Outdoor Unit
Cooling / Heating (Sound Pressure) 46 / 47 47 / 48 50 / 53 50 / 53 51 / 53 52 / 54
Sound Power 60 61 63 63 64 65
Dimensions (mm)
Indoor (W x H x D) 780 x 280 x 230 780 x 280 x 230 900 x 300 x 230 900 x 300 x 230 1100 x 300 x 260 1100 x 300 x 260
Outdoor (W x H x D) 750 x 548 x 288 750 x 548 x 288 850 x 750 x 298 850 x 750 x 298 850 x 800 x 298 850 x 800 x 298
Weights (kg)
Indoor / Outdoor 8.5 / 34 8.5 / 34 11.5 / 50 11.5 / 50 15 / 52 15 / 52
Operating Range
Outdoor Op. Temp. (Cooling) -10°C to 46°C               -10°C to 46°C               -10°C to 46°C               -10°C to 46°C               -10°C to 46°C               -10°C to 46°C
Outdoor Op. Temp. (Heating) -15°C to 24°C               -15°C to 24°C               -15°C to 24°C               -15°C to 24°C               -15°C to 24°C               -15°C to 24°C
Refrigerant Type
                                                                                             R32
Pipe Sizes (mm) Ø6.35 / Ø9.52              Ø6.35 / Ø9.52              Ø6.35 / Ø12.7              Ø6.35 / Ø12.7              Ø6.35 / Ø15.88           Ø6.35 / Ø15.88
Refig pre charge length (m) 20                                     20                                     30                                     30                                     30                                     30
Min / Max Pipe Length / Lift (m) 3 / 20 / 10                      3 / 20 / 10                      3 / 30 / 20                     3 / 30 / 20                     3 / 30 / 20                     3 / 30 / 20
Condensate Drain (mm (OD))
                                                                                             16
Power
Power Supply Rated Power Input – Cooling (kW) Power Input Range – Cooling (kW) Rated Power Input – Heating (kW) Power Input Range – Heating (kW) Running Current (C / H) (Amps) Max Current (Amps) Power supply To Interconnecting Wire *Manual FrostWash not available in RAS-E50YHA


                                                                         230 – 240 Volt / 50 Hz / 1 Phase
0.55                                 0.91                                  1.48                                 1.80                                 2.05                                 2.45
0.25 ~ 1.29                    0.25 ~ 1.46                    0.3 ~ 2.6                          0.3 ~ 2.6                         0.3 ~ 2.7                         0.3 ~ 2.7
0.68                                 0.93                                 1.48                                 1.83                                 1.98                                 2.37
0.25 ~ 1.25                    0.25 ~ 1.7                       0.3 ~ 2.65                       0.3 ~ 2.65                       0.5 ~ 2.8                         0.5 ~ 2.8
1.04-5.86/1.04-5.68      1.04-6.63/1.04-7.73       2.10-11.19 / 2.27-9.67   2.31-8.55/1.67-9.66       2.50-9.79 / 2.19-10.72   2.50-9.79 / 2.19-10.72
7.0                                     8.1                                    10.5                                  10.5                                  12                                     12


                                                                                      Outdoor Unit


                                                                                           3 Core + E
Rated capacity measured in accordance with AS/NZS 3823 conditions: Cooling: Indoor 27°C db / 19°C wb: Ambient 35°C db
Heating: Indoor 20°C db: Ambient 7°C db / 6°C wb
Mains power source – AC 230V and 50Hz
Refer to temperzone Warranty for full conditions.
Warranty & Downloads
Downloads

Documentation

Manuals, brochures and other product literature. If you need any more information, please get in touch.

Warranty:

6 years parts and labour warranty when installed by an authorised Hitachi Dealer.
*Terms and Conditions apply.

Installation & Warranty Claims Note:

Installation must be undertaken by a professional licensed Aircon technician or/and Electrician.



Additional information

Weight 15 kg
Dimensions 300 × 1100 × 260 mm
