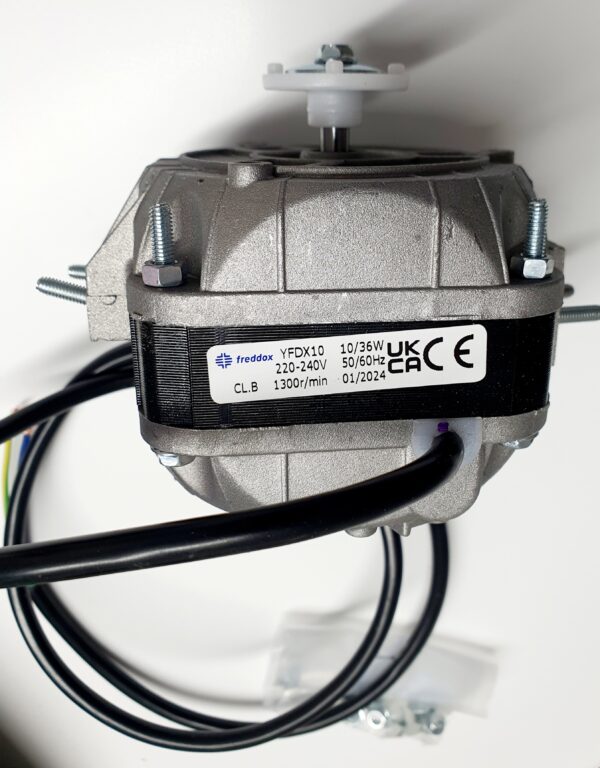

FREDDOX MULTIFIXING MOTOR 10W GEN.2 – Fan – D0123FD

General
Product Group : Shaded pole Motors
Cable
Cable Length : 1000 mm
Electrical
Amp : 0.25 A
Frequency : 50/60 Hz
IP Class : IP42
Input Voltage : 220 – 240 V
Power Input : 36 W
Watt : 10 W
Fan
Disc Shape : Round
Fan Blade Size : 230 mm
Fan Speed : 1300 r/min
Flanges
Output Flange Dimension : 25.4 mm
General Information
Model Number : YFDX10
Rotation Direction : CCW
Measurements
Depth : 87 mm
Height : 99 mm
Length : 83 mm
Net Weight : 1.1 kg
Motor
Bearing Type : Sleeve
Mounting
Mounting Details : Horizontal or Vertical
Mounting Method : Bracket or Grille Type
Temperature
Operating Temperature Range : -25-50 °C

, Fan, COMPONENTS. – D0123FD

Downloads:

Brochure Technical Literature User Manual Conformity Certification Installation Manual Data Book Safety Data Sheet
