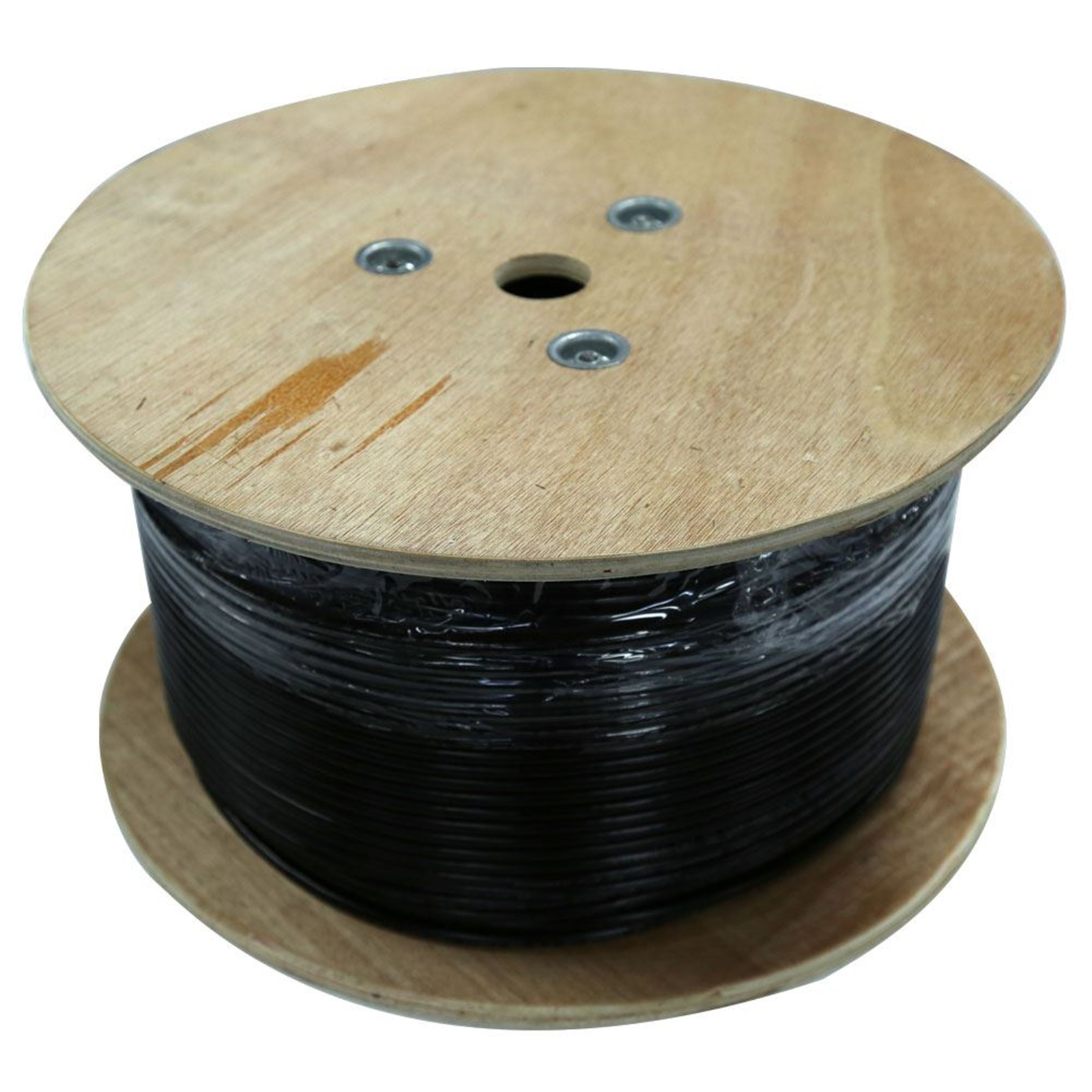

Dynamix C-STPC6EXT-SLD 305m S/FTP Cat6 23 AWG, 30%TC braid + UV Stabilised PEjacketforoutdoorcable. > Cables

Features:

DYNAMIX 305m S/FTP Cat6 23 AWG, 30%TC braid+PE jacket for outdoor cable

Specifications:

Category
F/UTP CAT6-4P-PE
Test Standard
ISO/IEC11801, TIA- 568-C.2, YD/T 1019
Conductor
Material: SOLID-Bare Copper
Nom. O.D. (mm): 0.570; Up: +0.005; Down: -0.005
Insulation
Material: HDPE
Diameter: 1.09±0.03mm
Colour A. Blue, White-Green
B. Orange, White-Orange
C. Green, White-Green
D. Brown, White-Brown
Sheath
Thickness: 0.60±0.05mm
External O.D.: 7.4±0.4mm
Surface: Clean, Frap, Satiation
Material: PE
Surface Printing
Letter Height: 3.0±0.3mm
Colour: Black
Print Error & Space: =±0.5%, 1m
Packing
Wooden Tray and Carton
Packing Length
305±1.5m
Rip Cord
Yes
Drain Wire
Yes
Sheath Physical Properties
Before Aging Tensile Strength (Mpa): =10.0
Elongation(%): =150
Aging Period (°C x hrs): 100°C x 24h x 10d
After Aging Elongation(%): =300
Cold bend (-20±2°C×4h): 8×Cable O.D. No visible cracks
Electrical Characteristics (20°C)
1.0-250.0MHz, Characteristic impedance (O): 100±15
1.0-250.0MHz, Delay Shew 20°C (ns/100m): =45
DC Resistance 20°C (O/100m): Max. 9.38
DC Conductor Resistance Unbalance (%): Max. 5.0
Manufacturer Part No:
C-STPC6EXT-SLD
Brand:
Dynamix
Product Type:
–
UPC
–
Product Family:
–
Shipping Weight:
12.416 kg
PB Part No:
SCBDNX0132
Product Model:
–
Warranty:
12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
