Raspberry Pi Official 7″ Touch Screen Display with 10 Finger Capacitive Touch

Features:

Note: Raspberry Pi and power supply are NOT included! Compatible with Raspberry Pi 3, Raspberry Pi 2, Model B+, and Model A+. The display will technically work with the Model A and Model B boards (connecting it to the DSI port on the Pi board), however the mounting holes on the back of the display will only line up with the newer board designs (A+, B+, Pi 2, and Pi 3).
NOTE: DO NOT CONNECT TO RASPBERRY PI 4 MODEL B. Pi’s power supply is marginal or insufficient for its requirements. Please check
SEVRBP0087
for RPI4 use.
Technical Datasheet
The 7″ Touchscreen Monitor for Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects. The 800 x 480 display connects via an adapter board which handles power and signal conversion. It is truly interactive as the latest software drivers will support a virtual ‘on screen’ keyboard, so there is no need to plug in a keyboard and mouse.
Turn your Raspberry Pi into a touch screen tablet, infotainment system, or standalone device
10 finger capacitive touch
Screen Dimensions: 194mm x 110mm x 20mm
Viewable screen size: 155mm x 86mm
Screen Resolution 800 x 480 pixels
Applications:
Consumer Electronics; Embedded Design & Development; Hobby & Education; Multimedia; Portable Devices
Kit Contents:
– 7″ Touch screen Display
– Adapter Board
– DSI Ribbon cable

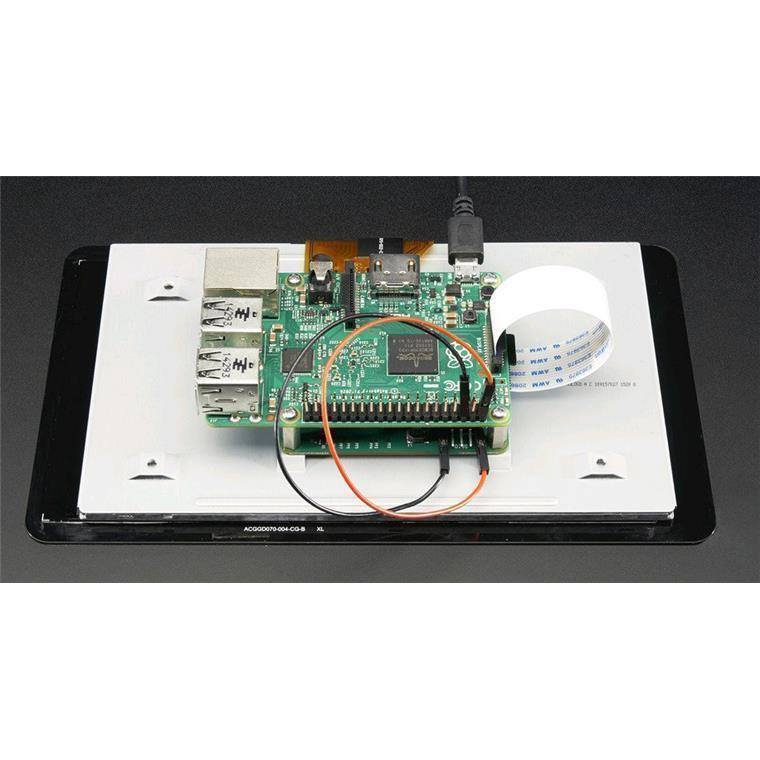

– 4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display
– 4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units)

Specifications:

Display
7inch 800 x 480 pixel resolution, 10 finger multi-point touchscreen
Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)
Viewable screen size
155mm x 86mm
Screen Resolution
800 x 480 pixels

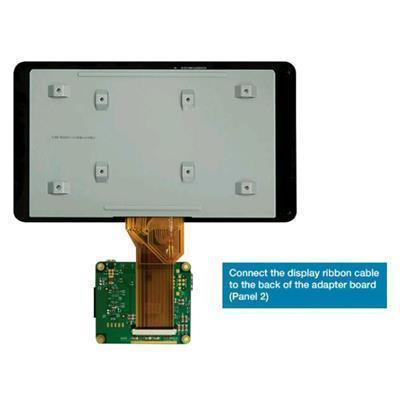

Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.

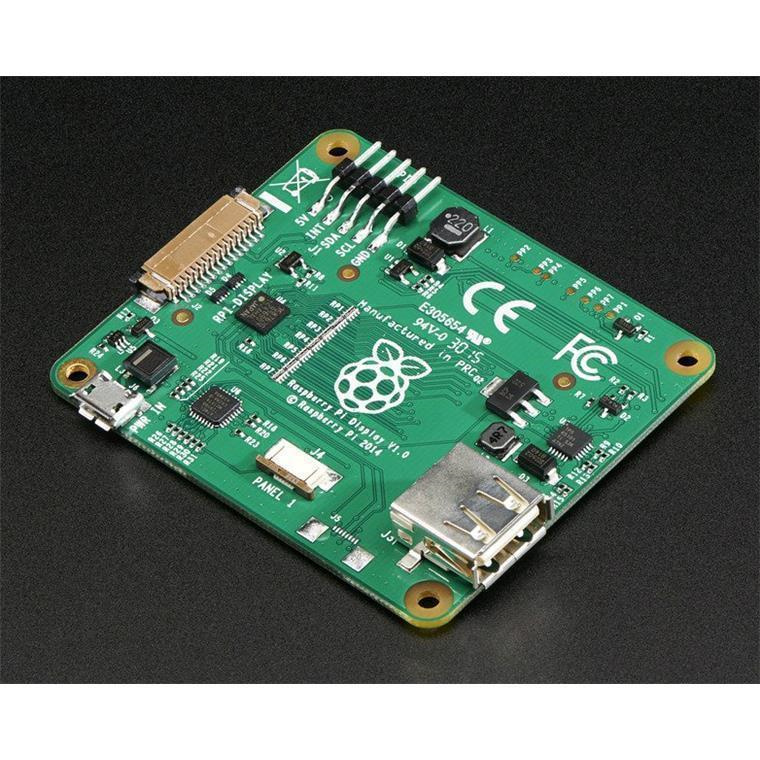

Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.
Will require the latest version of Raspbian OS to operate correctly.
Manufacturer Part No:
3649109
Brand:
Raspberry Pi
Product Type:
–
UPC
640522710829
Product Family:
–
Shipping Weight:
0.402 kg
PB Part No:
SEVRBP0074
Product Model:
–
Warranty:
12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
